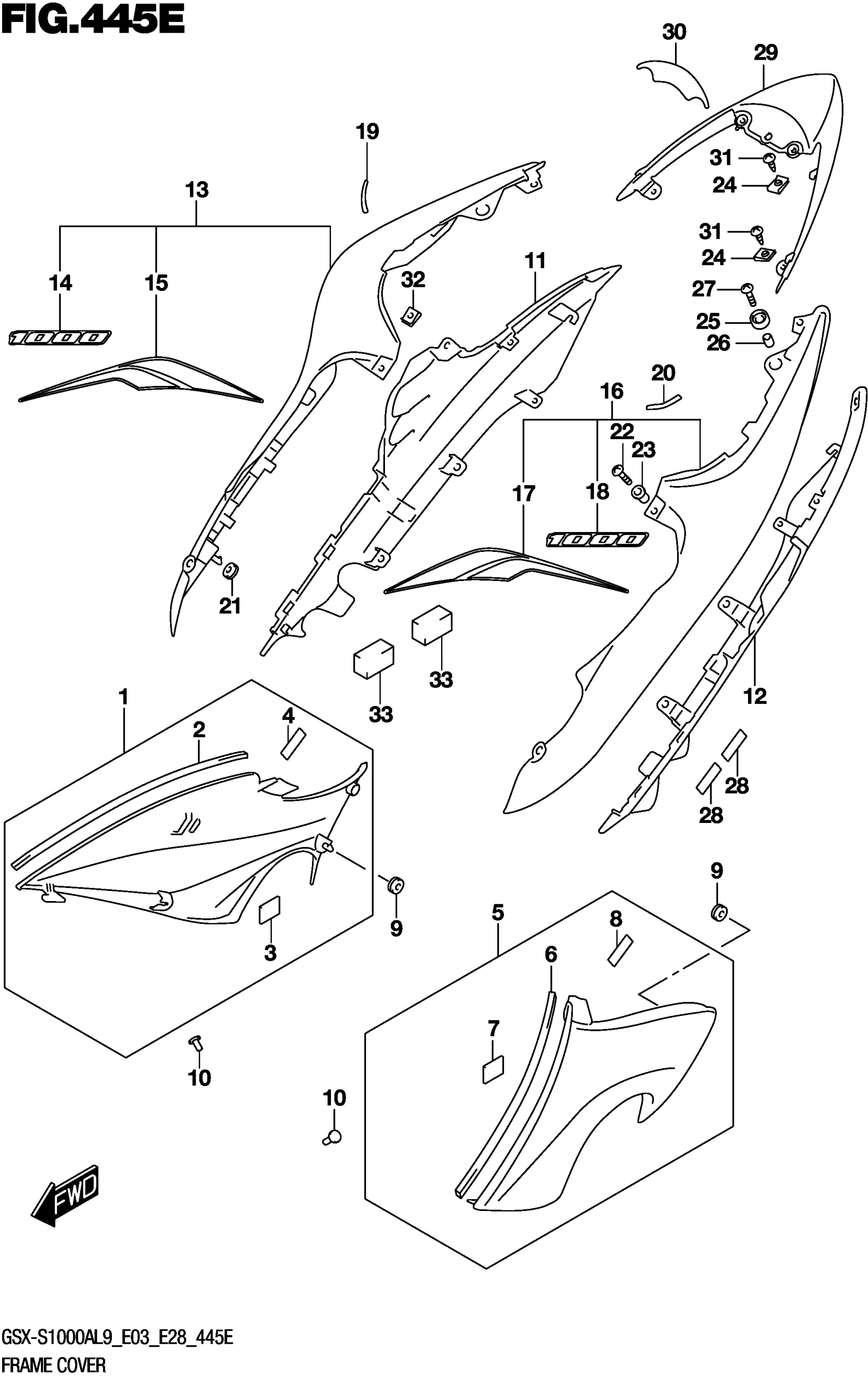

Suzuki GSX-S1000AL9 (2019) FRAME COVER (GSX-S1000YAL9 E28) Diagram

#

Description
Price

1

COVER,FRAME FRONT RH

47110-04K00

$75.48

2

.CUSHION,FUEL TANK COVER

44277-37H00

$6.87

3

FASTENER (33X25X2.6)

44572-13G00

$10.13

4

CUSHION,UNDER COWLING NO.1

94476-38C00

Unavailable

5

COVER,FRAME FRONT LH

47210-04K00

$58.38

6

.CUSHION,FUEL TANK COVER

44277-37H00

$6.87

7

FASTENER (33X25X2.6)

44572-13G00

$10.13

8

CUSHION,UNDER COWLING NO.1

94476-38C00

Unavailable

9

CUSHION (6X18X6)

09320-06504

$4.47

10

CLIP

09409-10314

$1.99

11

COVER,FRAME RR LWR RH

47131-04K00

$27.65

12

COVER,FRAME RR LWR LH

47231-04K00

$28.17

13-1

(BLUE)

47120-04K30-YSF

Unavailable

13-1

(BLUE)

47120-04K30-YSF

Unavailable

13-2

COVER, FRAME REAR UPPER RH

47120-04K30-YWW

$197.75

13-2

COVER, FRAME REAR UPPER RH

47120-04K30-YWW

$197.75

14-1

.EMBLEM,"1000" RH (BLUE/WHITE | FOR YSF

68131-04K10-AGQ

Unavailable

14-1

.EMBLEM,"1000" RH (BLUE/WHITE

68131-04K10-AGQ

Unavailable

14-2

.EMBLEM,"1000" RH (WHITE/BLAC | FOR YWW

68131-04K10-AR9

Unavailable

14-2

.EMBLEM,"1000" RH (WHITE/BLAC

68131-04K10-AR9

Unavailable

15-1

.TAPE, FRAME COVER, RH | FOR YSF

68135-04K50-A3F

$36.90

15-2

.TAPE, FRAME COVER, RH | FOR YWW

68135-04K50-BVC

$34.25

16-1

(BLUE)

47220-04K30-YSF

Unavailable

16-1

(BLUE)

47220-04K30-YSF

Unavailable

16-2

(WHITE)

47220-04K30-YWW

$197.75

16-2

(WHITE)

47220-04K30-YWW

$197.75

17-1

.EMBLEM,"1000" LH (BLUE/WHITE | FOR YSF

68141-04K10-AGQ

Unavailable

17-1

.EMBLEM,"1000" LH (BLUE/WHITE

68141-04K10-AGQ

Unavailable

17-2

.EMBLEM,"1000" LH (WHITE/BLAC | FOR YWW

68141-04K10-AR9

$30.18

17-2

.EMBLEM,"1000" LH (WHITE/BLAC

68141-04K10-AR9

$30.18

18-1

.TAPE, FRAME COVER, LH | FOR YSF

68145-04K50-A3F

$36.90

18-2

.TAPE, FRAME COVER, LH | FOR YWW

68145-04K50-BVC

$34.25

19

TAPE,FRAME COVER RH

47313-04K01

Unavailable

20

TAPE,FRAME COVER LH

47314-04K01

$14.37

21

CUSHION (8X26X7)

09320-08028

$2.80

22

SCREW

02142-1520B

$2.34

23

NUT (M5)

09159-05019

$6.44

24

NUT (M5)

09148-05047

$2.02

25

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

26

SPACER (6.5X10X7)

09180-06283

$1.89

27

SCREW (6X20)

09136-06105

$1.99

28

TAPE (6X25X0.13)

94443-06G00

$2.97

29-1

COVER,FRAME CENTER (BLUE) | FOR YSF

47311-04K00-YSF

$120.37

29-2

COVER,FRAME CENTER (BLACK) | FOR YWW

47311-04K00-YKV

$124.25

30

TAPE,FRAME COVER CTR

47312-04K00

$14.37

31

SCREW

03541-0512B

$1.77

32

NUT (M5)

09148-05047

$2.02

33

CUSHION,RDTR COVER INNER | CUT AS REQUIRED

17798-39G00

$6.12
