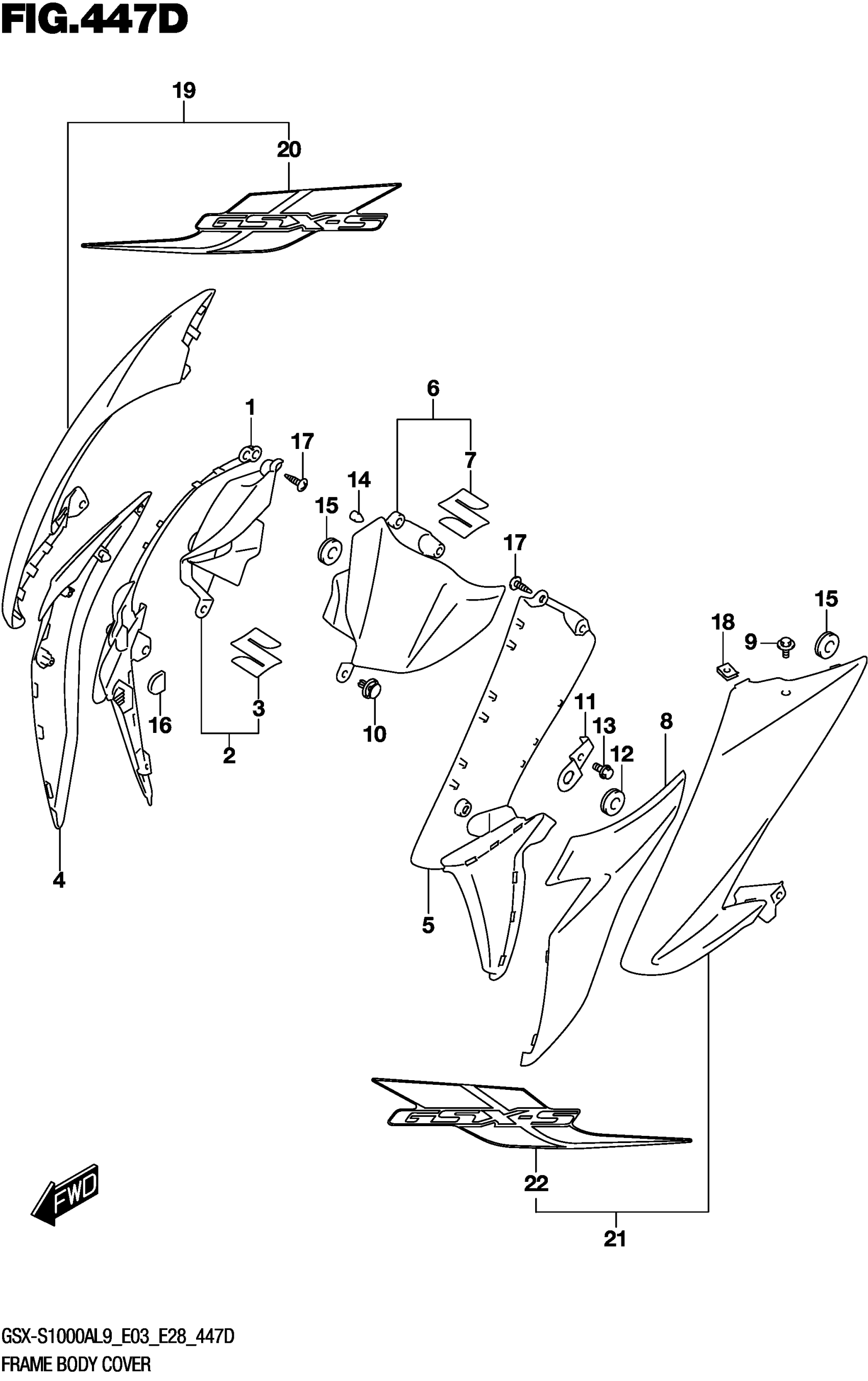

Suzuki GSX-S1000AL9 (2019) FRAME BODY COVER (GSX-S1000YAL9 E03) Diagram

#

Description
Price

1

COVER,FRAME BODY INNER RH

47531-04K00

$24.97

2

COVER ASSY,INTAKE RH

47570-04K00

$49.95

3

EMBLEM, S

68111-47HA0

$40.44

4-1

COVER,FRAME BODY LWR RH (BLUE

47533-04K00-YSF

$62.17

4-1

COVER,FRAME BODY LWR RH (BLUE

47533-04K00-YSF

$62.17

4-2

COVER,FRAME BODY LWR RH(WHITE

47533-04K00-YWW

$72.27

4-2

COVER,FRAME BODY LWR RH(WHITE

47533-04K00-YWW

$72.27

5

COVER,FRAME BODY INNER LH

47541-04K00

$28.13

6

COVER ASSY,INTAKE LH

47580-04K00

$50.90

7

EMBLEM, S

68111-47HA0

$40.44

8-1

COVER,FRAME BODY LWR LH (BLUE

47543-04K00-YSF

$57.27

8-1

COVER,FRAME BODY LWR LH (BLUE

47543-04K00-YSF

$57.27

8-2

COVER,FRAME BODY LWR LH(WHITE

47543-04K00-YWW

Unavailable

8-2

COVER,FRAME BODY LWR LH(WHITE

47543-04K00-YWW

Unavailable

9

SCREW (5X13)

09139-05064

$2.57

10

CLIP

94479-35F00

$5.62

11

BRACKET, FRAME BODY COVER

47539-04K00

$10.93

12

CUSHION (8x26x7)

09320-08018

$3.04

13

BOLT

01547-0612B

$1.49

14

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

15

CUSHION (6X18X6)

09320-06504

$4.96

16

CUSHION

09329-18001

$1.91

17

SCREW

03541-0516A

$1.49

18

NUT (M5)

09148-05052

$3.37

19-1

COVER, FRAME BODY RH (BLUE)

47510-04K40-YSF

Unavailable

19-2

COVER, FRAME BODY RH (WHITE)

47510-04K40-YWW

$146.75

20-1

.EMBLEM, FRAME BODY COVER | FOR YSF

68135-04K60-BUK

$38.05

20-2

.EMBLEM, FRAME BODY COVER | FOR YWW

68135-04K60-BUL

$38.05

21-1

COVER, FRAME BODY LH (BLUE)

47520-04K40-YSF

Unavailable

21-2

COVER, FRAME BODY LH (WHITE)

47520-04K40-YWW

$146.75

22-1

.EMBLEM, FRAME BODY COVER | FOR YSF

68145-04K60-BUK

$42.18

22-2

.EMBLEM, FRAME BODY COVER | FOR YWW

68145-04K60-BUL

$38.05
