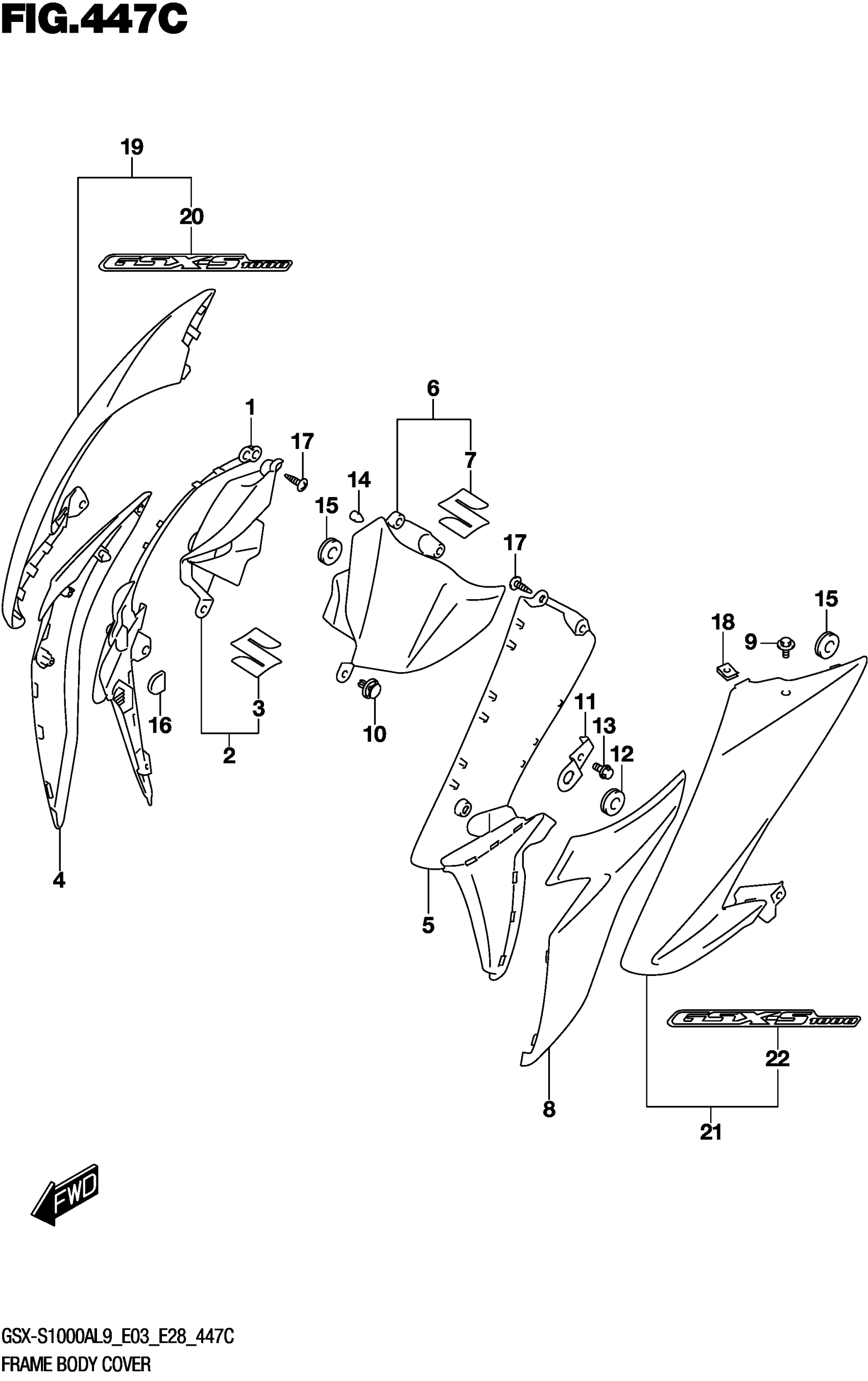

Suzuki GSX-S1000AL9 (2019) FRAME BODY COVER (GSX-S1000AL9 E33) Diagram

#

Description
Price

1

COVER,FRAME BODY INNER RH

47531-04K00

$24.97

2

COVER ASSY,INTAKE RH

47570-04K00

$49.95

3

EMBLEM, S

68111-47HA0

$40.44

4

COVER,FRAME BODY LWR RH (BLUE

47533-04K00-YSF

$62.17

4

COVER,FRAME BODY LWR RH (BLUE

47533-04K00-YSF

$62.17

5

COVER,FRAME BODY INNER LH

47541-04K00

$28.13

6

COVER ASSY,INTAKE LH

47580-04K00

$50.90

7

EMBLEM, S

68111-47HA0

$40.44

8

COVER,FRAME BODY LWR LH (BLUE

47543-04K00-YSF

$57.27

8

COVER,FRAME BODY LWR LH (BLUE

47543-04K00-YSF

$57.27

9

SCREW (5X13)

09139-05064

$2.57

10

CLIP

94479-35F00

$5.62

11

BRACKET, FRAME BODY COVER

47539-04K00

$10.93

12

CUSHION (8x26x7)

09320-08018

$3.04

13

BOLT

01547-0612B

$1.49

14

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

15

CUSHION (6X18X6)

09320-06504

$4.96

16

CUSHION

09329-18001

$1.91

17

SCREW

03541-0516A

$1.49

18

NUT (M5)

09148-05052

$3.37

19

COVER, FRAME BODY RH (BLACK)

47510-04K00-YVB

$157.27

20

.EMBLEM, FRAME BODY COVER

68131-04K00-A77

$31.53

21

COVER, FRAME BODY LH (BLACK)

47520-04K00-YVB

$158.78

22

.EMBLEM, FRAME BODY COVER

68131-04K00-A77

$31.53
