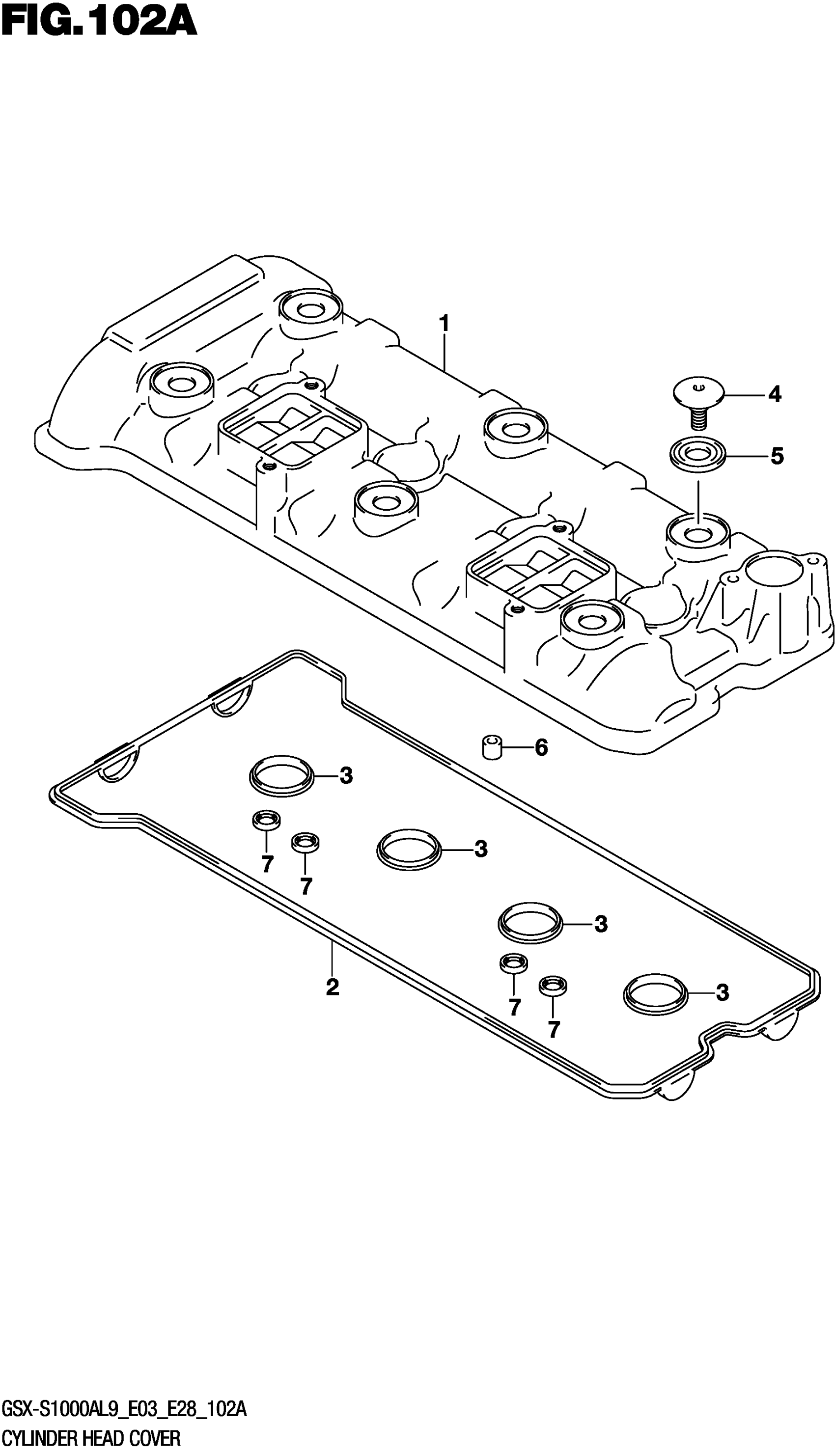

Suzuki GSX-S1000AL9 (2019) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD

11171-04K00

Unavailable

2

.GASKET, CYL HEAD COVER NO.1

11173-35F00

$49.57

3

.GASKET,CYL HEAD COVER NO.2

11178-33E00

$6.20

4

BOLT (7X17.5)

09106-07021

$4.50

5

WASHER,CYL HEAD COVER (10.6X2

11191-27E00

$4.27

6

PIN (8.2X10X13)

09206-10016

$8.04

7

.GASKET,2ND AIR PASSAGE

11182-35F10

$4.72
