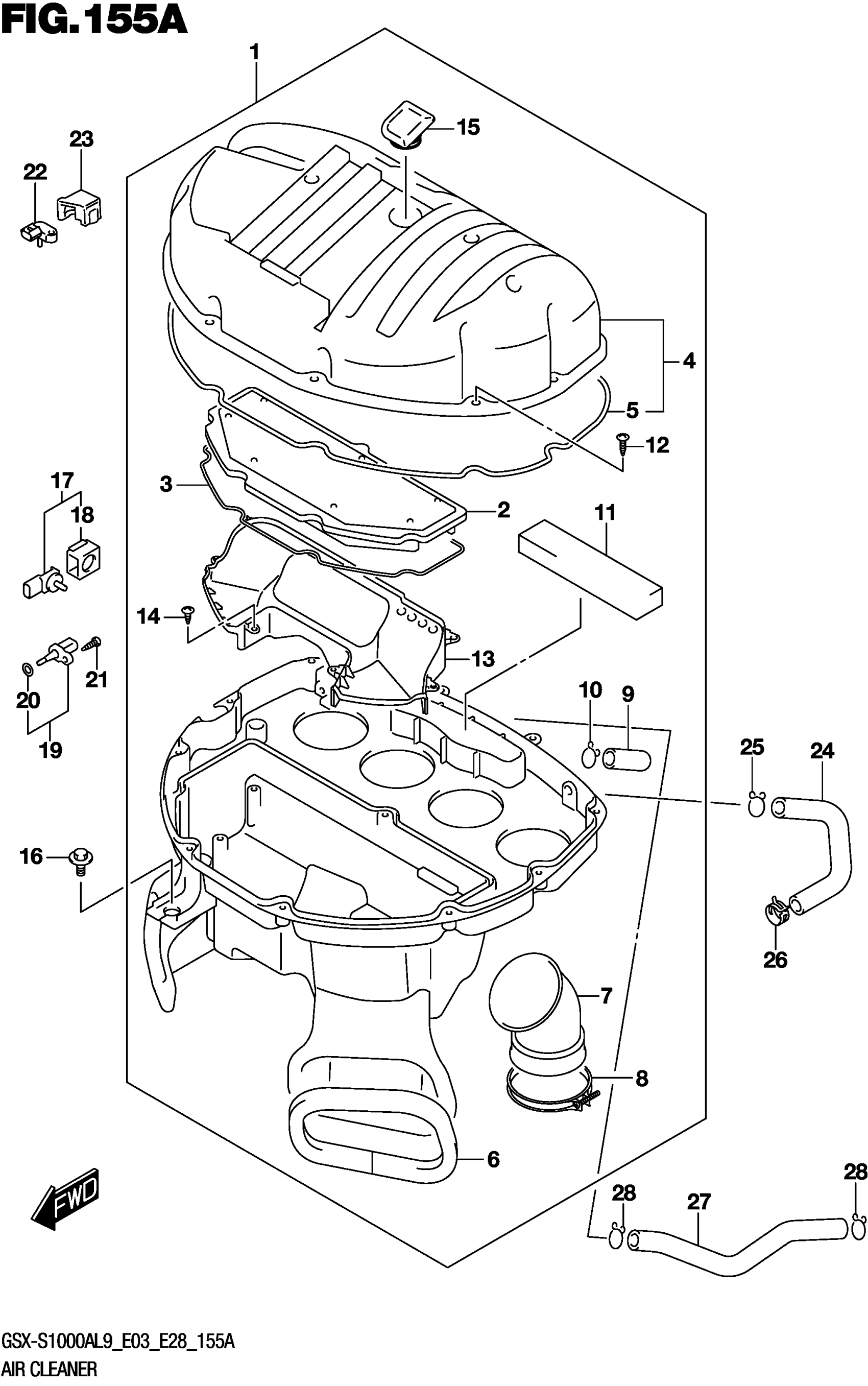

Suzuki GSX-S1000AL9 (2019) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-04K00

Unavailable

2

.FILTER ASSY

13780-47H10

$46.93

3

.GASKET,CASE

13756-47H00

$6.83

4

.CAP,AIR CLEANER

13740-04K00

$70.42

5

..GASKET,CAP

13746-01H00

$8.83

6

.CUSHION,DUCT

13736-04K00

Unavailable

7

TUBE,OUTLET This part replaces 13881-04K00.

13881-04K01

$32.40

8

CLAMP,INTAKE PIPE

13827-40H01

$17.33

9

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.17

10

.CLIP (ID:14.5)

09401-14101

$2.37

11

.FILTER BREATHER

13788-04K00

$6.12

12

SCREW

03541-0520A

$1.81

13

.SEPARATOR,AIR CLEANER

13723-04K00

$24.63

14

SCREW

03541-0412A

$1.37

15

.PLUG,CLNR CAP

13744-04K00

$8.47

16

BOLT (6X16)

09111-06089

$2.61

17

SENSOR,BOOST

15630-29G40

$342.38

18

.COVER

15625-29G40

Unavailable

19

SENSOR,AIR TEMP

13650-41F10

$71.40

20

O-RING

13655-41F10

Unavailable

21

SCREW

03511-0516A

$1.88

22

SENSOR,BOOST

18590-18K00

$350.62

23

HOLDER,SENSOR

18595-04K00

$11.92

24

HOSE,ISC VALVE

13697-04K00

Unavailable

25

CLIP (ID:15.5)

09401-15101

$2.28

26

CLIP (ID:16.5)

09401-16407

$2.53

27

HOSE, BREATHER This part replaces 13853-04K00.

13853-04K01

$15.38

28

.CLIP (ID:14.5)

09401-14101

$2.37
