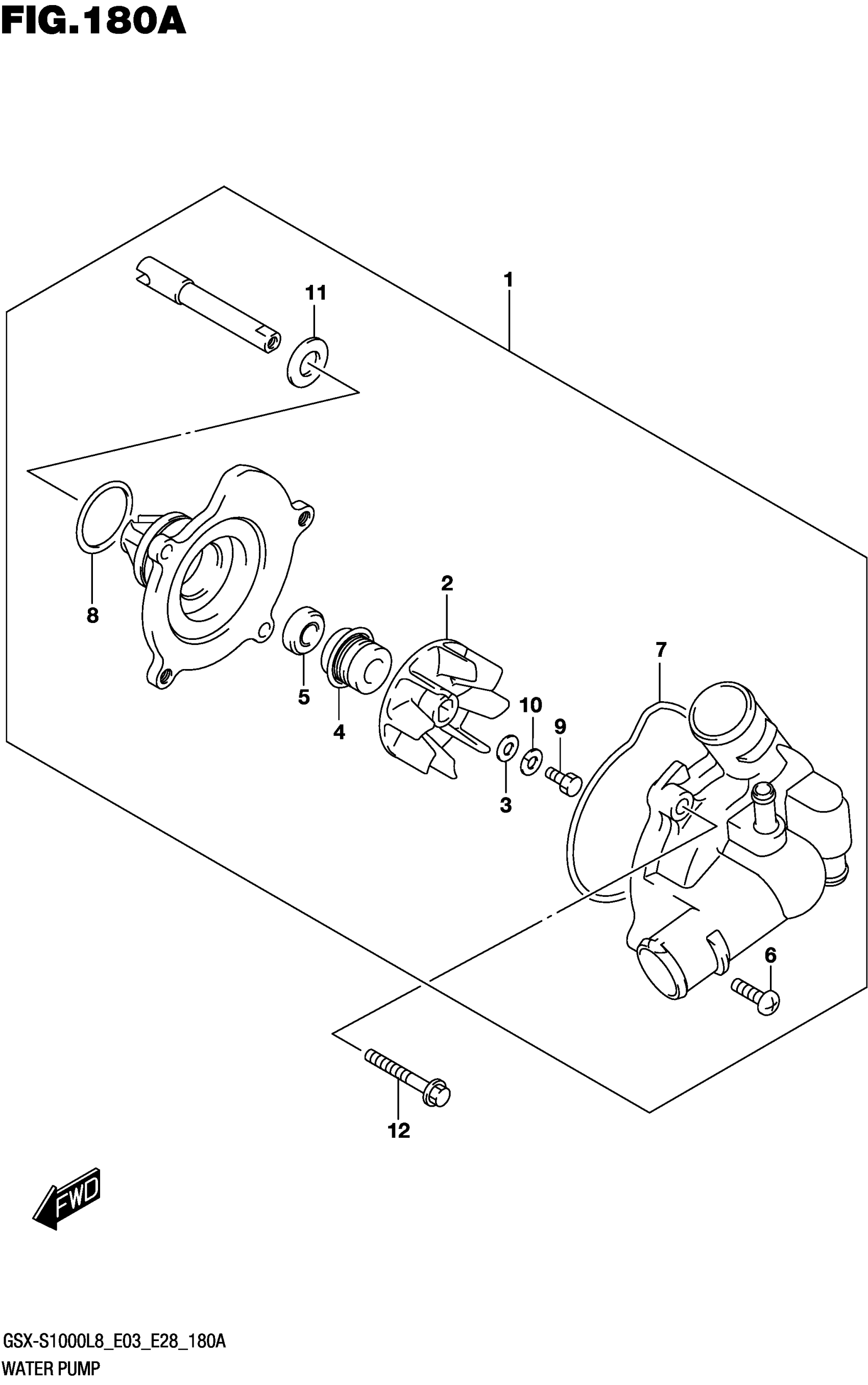

Suzuki GSX-S1000AL8 (2018) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY, WATER This part replaces 17400-04K00.

17400-04K01

$259.28

2

.IMPELLER

17491-17E01

$25.21

3

.GASKET (6X15X2.2)

09168-06025

$2.80

4

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$26.75

5

.SEAL,OIL (10X21X5)

17461-48G00

$12.45

6

.SCREW

02112-0616A

$1.43

7

.O-RING This part replaces 17418-33400.

17418-33401

$4.09

8

.O-RING

17435-33400

$13.99

9

.BOLT (6X13)

09100-06099

$2.08

10

.WASHER

09164-06006

$2.66

11

.WASHER

17432-07G00

$2.61

12

BOLT

01547-0635A

$2.31
