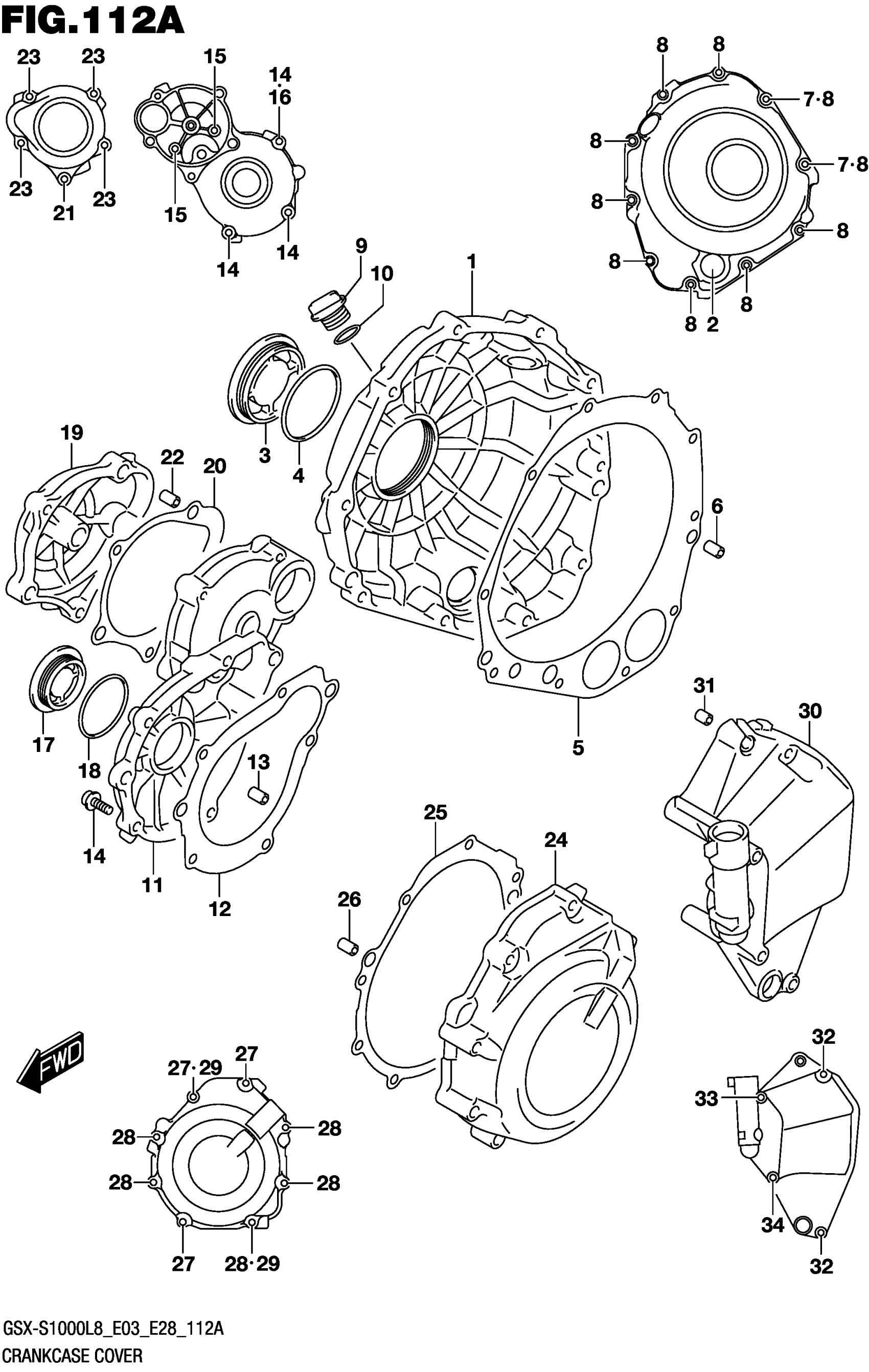

Suzuki GSX-S1000AL8 (2018) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-04K00

$270.63

2

.LENS, OIL LEVEL

11971-33210

$17.41

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$23.95

4

O RING

31156-17E00

$4.40

5

GASKET, CLUTCH COVER

11482-40F10

$15.01

6

PIN

04211-09189

$1.70

7

GASKET (5.8X13X1.2)

09168-06023

$2.09

8

BOLT (6X30)

09103-06213

$2.53

9

PLUG,ENGINE OIL FILLER

11971-25D00

$4.89

10

O RING (D:3.1,ID:16.8)

09280-17003

$1.70

11

COVER, STARTER CLUTCH

11381-04K00

$191.48

12

GASKET, STARTER CLUTCH COVER

11491-33E02

$8.35

13

PIN

04211-09149

$1.70

14

BOLT (6X25)

09103-06212

$2.53

15

BOLT (6X35)

09103-06214

$2.57

16

GASKET (5.8X13X1.2)

09168-06023

$2.09

17

PLUG

09259-36021

$12.83

18

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.31

19

CAP, STARTER IDLE GEAR

11382-04K00

$52.82

20

GASKET

11492-04K00

$6.90

21

BOLT (6X60)

09103-06261

$3.00

22

PIN

04211-09149

$1.70

23

BOLT (6X35)

09103-06214

$2.57

24

COVER, MAGNETO

11351-04K00

$158.23

25

GASKET, MAGNETO COVER

11483-18G00

$10.59

26

PIN

04211-09149

$1.70

27

BOLT (6X30)

09103-06213

$2.53

28

BOLT (6X40)

09103-06215

$2.80

29

GASKET (5.8X13X1.2)

09168-06023

$2.09

30

COVER,ENG SPROCKET

11361-04K00

$201.95

31

PIN

04211-09129

$1.70

32

BOLT (6X55)

09103-06216

$2.80

33

BOLT (6X95)

09103-06227

$4.53

34

BOLT (6X80)

09103-06263

$4.23
