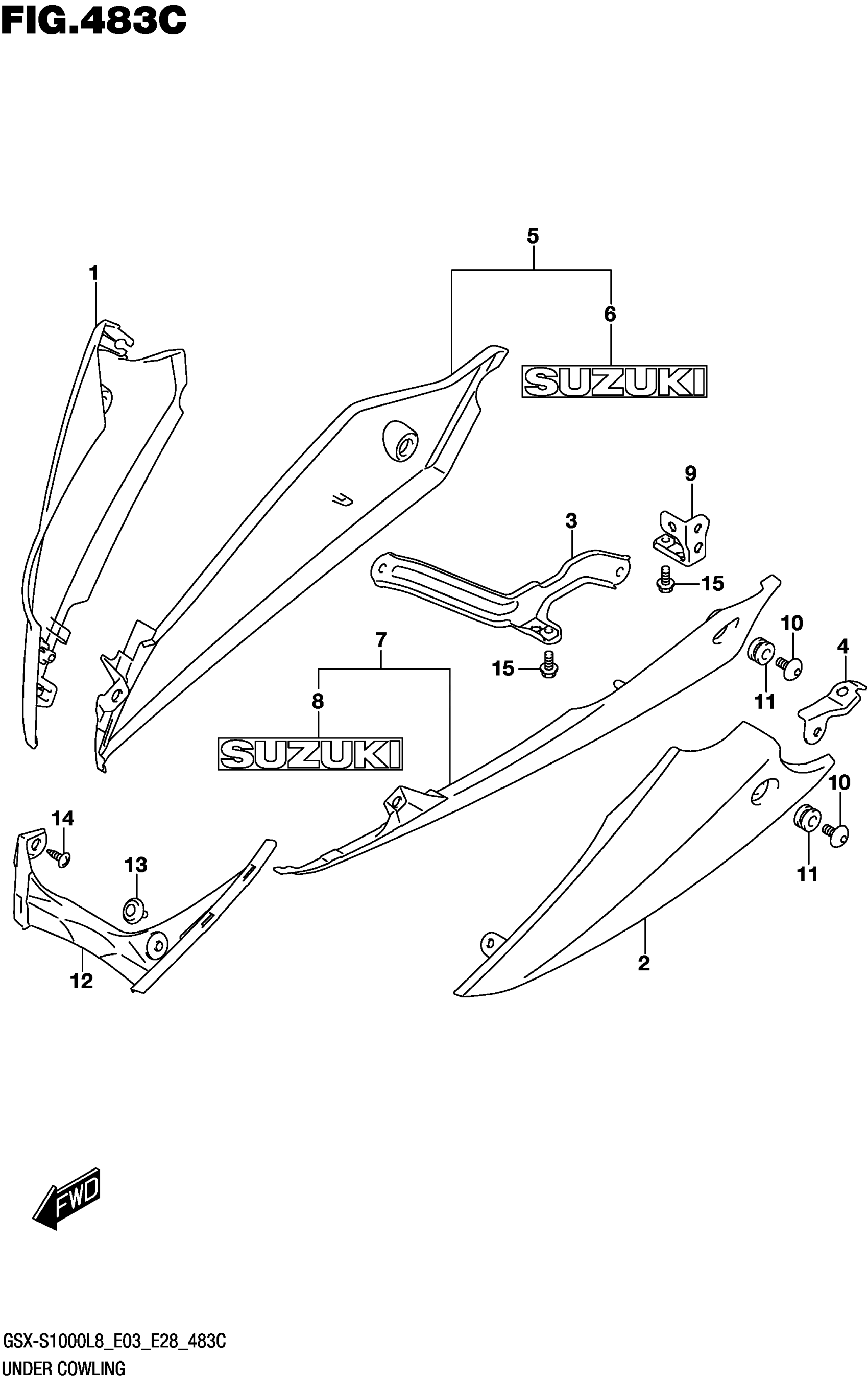

Suzuki GSX-S1000AL8 (2018) UNDER COWLING (GSX-S1000AL8 E28) Diagram

#

Description
Price

1

COWLING,UNDER,R (BLACK)

94471-04K00-YKV

$284.17

2

COWLING,UNDER,L (BLACK)

94472-04K00-YKV

$284.17

3

BRACKET, UNDER COWL RH

94530-04K00

$50.27

4

BRACKET,UNDER COWL FR LH

94520-04K00

$21.40

5-1

COWLING, UNDER REAR RH (BLUE) | FOR KEL

94470-04K00-YSF

$317.60

5-2

COWLING, UNDER REAR RH (RED) | FOR AV4

94470-04K00-YYG

$302.47

6

.EMBLEM,"SUZUKI" (SILVER)

68181-04K00-YES

$12.73

7-1

COWLING, UNDER REAR LH (BLUE) | FOR KEL

94480-04K00-YSF

$317.60

7-2

COWLING, UNDER REAR LH (RED) | FOR AV4

94480-04K00-YYG

$317.60

8

.EMBLEM,"SUZUKI" (SILVER)

68181-04K00-YES

$12.73

9

BRACKET,UNDER COWL RR LH

94540-04K00

$12.05

10

BOLT (6X12)

09106-06117

$5.10

11

CUSHION

09320-09016

$1.97

12

COWLING,UNDER CTR

94475-04K00

$18.12

13

CLIP

94479-35F00

$5.62

14

SCREW

03541-0516A

$1.49

15

BOLT

01550-0612A

$1.97

16

COLOR:AV4=YVB(BLACK)/YYG(RED)

SPECIAL NOTE

Unavailable

16

COLOR:KEL=YVB(BLACK)/YSF(BLUE)

SPECIAL NOTE

Unavailable
