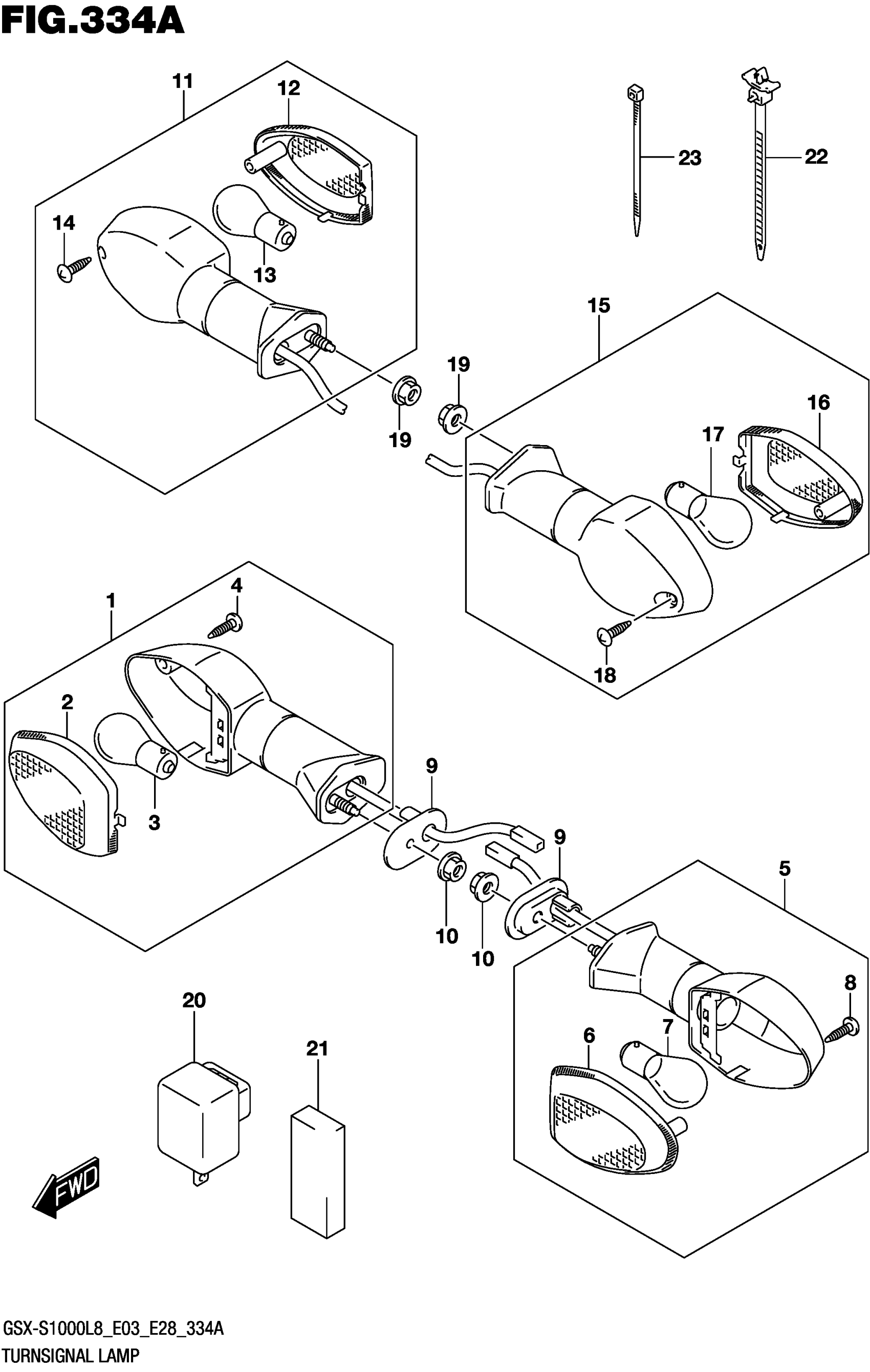

Suzuki GSX-S1000AL8 (2018) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN RH

35601-08J11

$114.18

2

.LENS

35612-08J01

$13.82

3

.BULB (12V,21W)

09471-12045

$2.95

4

.SCREW

03211-0414B

$1.93

5

LAMP ASSY, FRONT TURN LH

35602-08J11

$118.53

6

.LENS

35632-08J01

$13.65

7

.BULB (12V,21W)

09471-12045

$2.95

8

.SCREW

03211-0414B

$1.93

9

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

10

NUT

08316-1005A

$2.19

11

LAMP ASSY, REAR TURN RH

35603-08J20

$105.93

12

.LENS

35632-08J01

$13.65

13

.BULB (12V,21W)

09471-12045

$2.95

14

.SCREW

03211-0414B

$1.93

15

LAMP ASSY, REAR TURN LH

35604-08J20

$103.97

16

.LENS

35612-08J01

$13.82

17

.BULB (12V,21W)

09471-12045

$2.95

18

.SCREW

03211-0414B

$1.93

19

NUT

08316-1005A

$2.19

20

RELAY ASSY, TURN

38610-06F10

Unavailable

21

CUSHION (20X50X10)

36652-04K00

$2.95

22

CLAMP This part replaces 09407-14408.

09407-17402

$4.28

23

CLAMP (L:145)

09407-14407

$2.80
