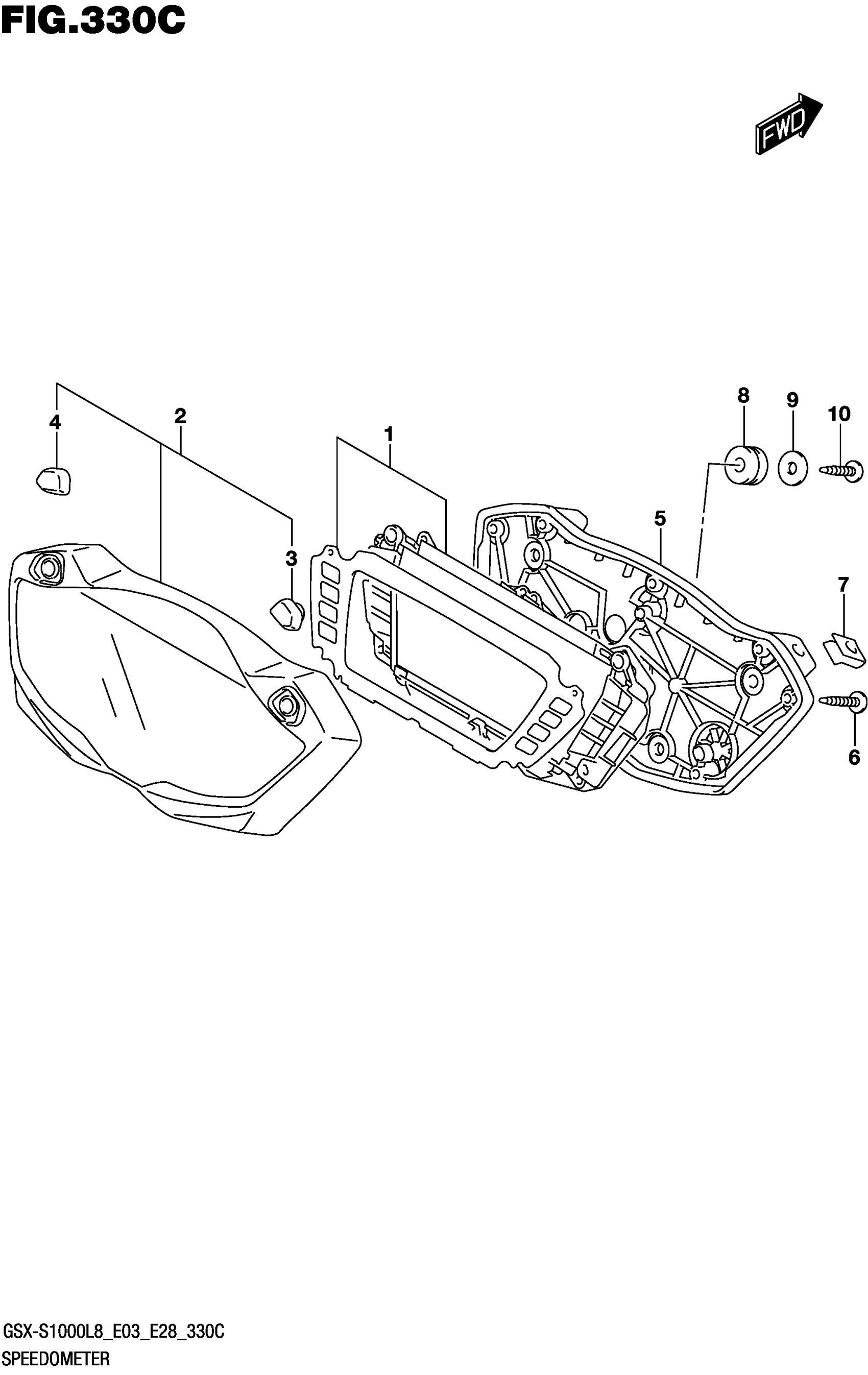

Suzuki GSX-S1000AL8 (2018) SPEEDOMETER (GSX-S1000AL8 E28) Diagram

#

Description
Price

1

SPEEDOMETER

34120-04KG0

Unavailable

2

CASE ASSY,UPPER This part replaces 34150-04K00.

34150-04K01

$160.23

3

.SWITCH RUBBER RH

34124-04K00

$5.05

4

.SWITCH RUBBER LH

34124-04K10

$5.05

5

CASE ASSY,LOWER

34111-04K00

$78.45

6

SCREW

34183-10C00

$2.19

7

NUT

09148-05052

$3.04

8

CUSHION,SPEEDOMETER This part replaces 34189-08J00.

34189-08J01

$3.38

9

WASHER (4.5X16X1.2)

09160-04026

$1.86

10

SCREW

03541-0416A

$1.43
