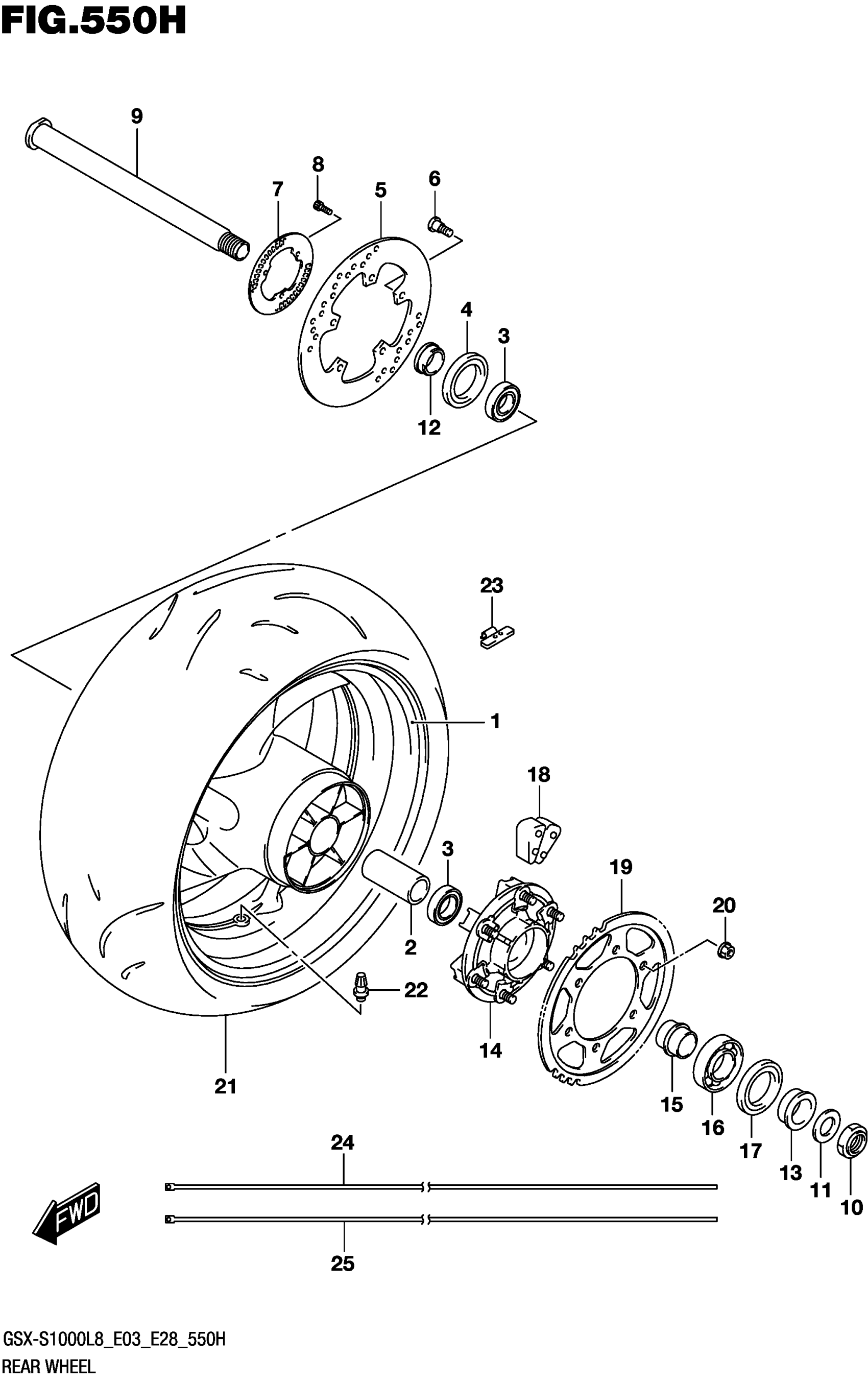

Suzuki GSX-S1000AL8 (2018) REAR WHEEL (GSX-S1000AZL8 E33) Diagram

WHEEL,REAR (17M/CXMT6.00,BLAC This part replaces 64111-04K02-019.

64111-04K30-019

$913.98

WHEEL,REAR (17M/CXMT6.00,BLAC This part replaces 64111-04K02-019.

64111-04K30-019

$913.98

SPACER,RR HUB BEARING

64731-35F10

$51.42

BEARING (28X52X12) This part replaces 09262-28052.

09262-28062

$26.38

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.85

DISC, REAR BRAKE

69211-04K00

$142.63

BOLT (8X21)

09106-08160

$3.57

RING,SPEED SENSOR RR (50T)

64162-04K00

$30.17

BOLT

07130-0512A

$2.19

AXLE, RR

64711-49G30

$142.63

NUT

64721-17K00

$15.94

WASHER (25.2X42X3.2)

09160-25070

$4.77

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

$13.49

SPACER,REAR AXLE,L This part replaces 64751-47H00.

64751-47H10

$18.73

DRUM,REAR SPROCKET

64610-04K00

$254.32

RETAINER, SPROCKET DRUM

64733-35F00

$26.61

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$39.40

OIL SEAL (39X65X7)

09285-39001

$10.62

ABSORBER, HUB SHOCK

64651-47H10

$25.52

SPROCKET, REAR (NT:44)

64511-04K00

$97.45

NUT

08319-3110A

$2.73

TIRE,RR(190/50Z | D214 M T/L(N) This part replaces 65110-04K00.

65110-04K02

$333.30

TIRE,RR(190/50Z | DUNLOP This part replaces 65110-04K00.

65110-04K02

$333.30

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER, WHEEL (10G)

55411-22H00

$8.60

BALANCER, WHEEL (20G)

55412-22H00

$10.07

BALANCER, WHEEL (30G)

55413-22H00

$11.47

TAPE, WHEEL RH

68251-04K00-BGH

Unavailable

TAPE, WHEEL LH

68252-04K00-BGH

Unavailable
