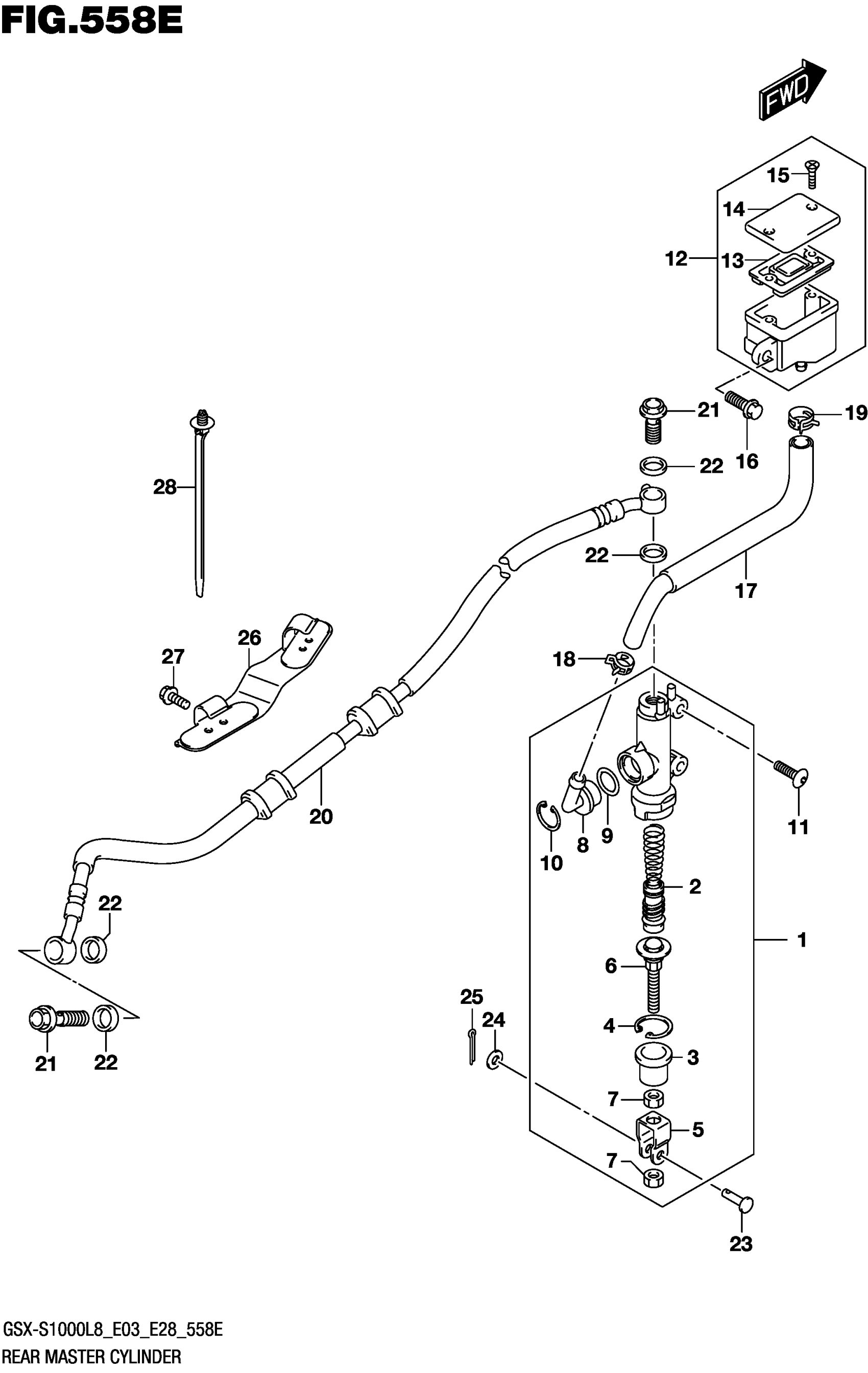

Suzuki GSX-S1000AL8 (2018) REAR MASTER CYLINDER (GSX-S1000L8 E33) Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER This part replaces 69600-47H30.

69600-47H31

$222.47

2

.PISTON / CAP SET

69600-34810

$56.48

3

.BOOT

69691-00A00

$5.30

4

.CIRCLIP

69665-47H00

$5.02

5

.YOKE

69692-47H00

$11.87

6

.ROD, PUSH

69670-40A00

$25.62

7

.NUT

69693-47H00

$2.48

8

.CONNECTOR

69672-00B20

$7.01

9

.O RING

69686-34200

$2.93

10

.CIRCLIP

69674-00B20

$3.97

11

SCREW (6X20)

09139-06028

$3.70

12

TANK ASSY,REAR RESERVOIR

69740-44G00

$57.93

13

.DIAPHRAGM

59667-04700

$9.78

14

.CAP

59669-05D00

$16.76

15

.SCREW

69689-04A00

$1.78

16

BOLT

01547-0612A

$2.03

17

HOSE, RR RESERVOIR TANK

69730-04K00

$19.15

18

CLIP

09401-12404

$2.34

19

CLIP

09401-15407

$2.83

20

HOSE, REAR BRAKE

69480-04K00

$74.08

21

UNION

09360-10062

$6.43

22

WASHER (10X15X1.5)

09161-10009

$1.84

23

PIN (6X18.2)

09200-06068

$4.11

24

WASHER

08322-0106A

$1.84

25

PIN

04111-2015A

$1.49

26

GUIDE, RR BRAKE HOSE

69270-04K00

$19.45

27

BOLT

01547-0612A

$2.03

28

CLAMP (L:154)

09407-17403

$4.91
