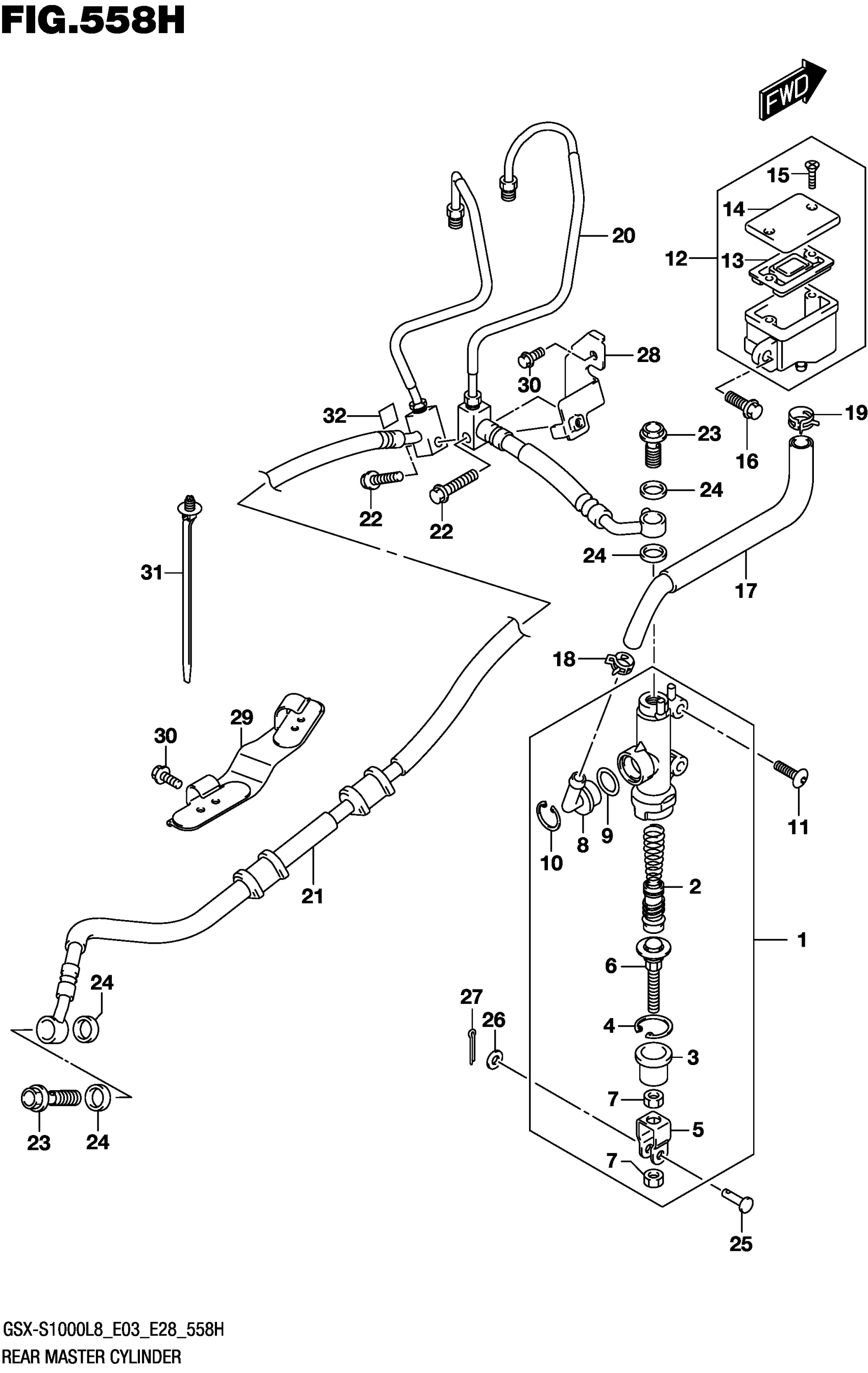

Suzuki GSX-S1000AL8 (2018) REAR MASTER CYLINDER (GSX-S1000AZL8 E33) Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER This part replaces 69600-47H30.

69600-47H31

$247.57

2

.PISTON / CAP SET

69600-34810

$63.75

3

.BOOT

69691-00A00

$5.00

4

.CIRCLIP

69665-47H00

$5.65

5

.YOKE

69692-47H00

$15.75

6

.ROD, PUSH

69670-40A00

$28.90

7

.NUT

69693-47H00

$2.80

8

.CONNECTOR

69672-00B20

$6.42

9

.O RING

69686-34200

$2.80

10

.CIRCLIP

69674-00B20

$3.73

11

SCREW (6X20)

09139-06028

$3.33

12

TANK ASSY,REAR RESERVOIR

69740-44G00

$65.40

13

.DIAPHRAGM

59667-04700

$8.95

14

.CAP

59669-05D00

$15.78

15

.SCREW

69689-04A00

$2.15

16

BOLT

01547-0612A

$2.01

17

HOSE, RR RESERVOIR TANK

69730-04K00

Unavailable

18

CLIP

09401-12404

$2.37

19

CLIP

09401-15407

$3.08

20

HOSE ASSY, RR MASTER TO UNIT

69200-04K00

Unavailable

21

HOSE ASSY,RR UNIT TO CLPR This part replaces 69400-04K00.

69400-04K01

$101.52

22

BOLT

01547-0625A

$2.01

23

UNION

09360-10062

$5.81

24

WASHER (10X15X1.5)

09161-10009

$1.83

25

PIN (6X18.2)

09200-06068

$3.71

26

WASHER

08322-0106A

$1.83

27

PIN

04111-2015A

$1.22

28

CLAMP, RR BRAKE HOSE

69260-04K00

$10.82

29

GUIDE, RR BRAKE HOSE

69270-04K00

$21.95

30

BOLT

01547-0612A

$2.01

31

CLAMP (L:154)

09407-17403

$4.63

32

PROTECTOR, BRAKE HOSE

69411-04K00

$2.70
