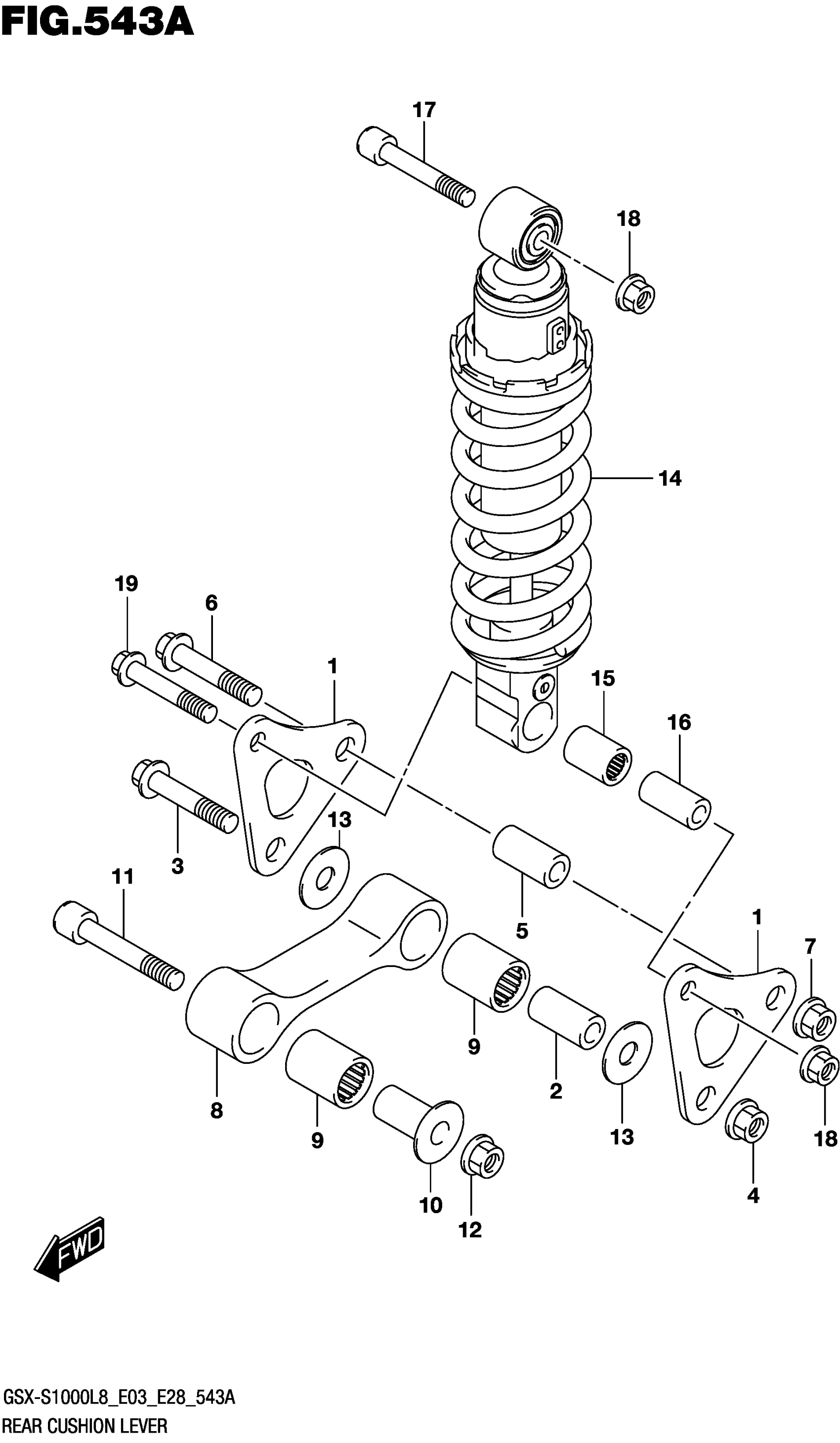

Suzuki GSX-S1000AL8 (2018) REAR CUSHION LEVER (GSX-S1000AL8 E03) Diagram

#

Description
Price

1

LEVER, REAR CUSHION

62611-04K00

$13.95

2

SPACER, LOWER

62317-27C10

$16.76

3

BOLT, LOWER

62668-42A02

$10.67

4

NUT

09159-12056

$7.37

5

SPACER, UPPER

62317-44B00

$21.03

6

BOLT, UPPER

62668-42A02

$10.67

7

NUT

09159-12056

$7.37

8

ROD SET,RR CUSHION This part replaces 62641-31J00.

62600-31850

$88.65

9

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

10

SPACER, ROD

62647-47H00

$35.28

11

BOLT,RR CUSHION ROD

62658-04K00

$14.37

12

NUT

09159-12056

$7.37

13

WASHER (12X34X1)

09160-12037

$3.83

14

ABSORBER ASSY, REAR SHOCK

62100-04K10-17U

$714.10

14

(GRAY)

62100-04K10-17U

$714.10

15

BEARING (17X24X32)

09263-17046

$41.45

16

SPACER, SHOCK ABS LOWER

62317-47H00

$20.45

17

BOLT, RR SHOCK ABS UPPER

62658-04K10

$14.37

18

NUT

09159-10115

$3.55

19

BOLT (10X58)

09103-10428

$5.07
