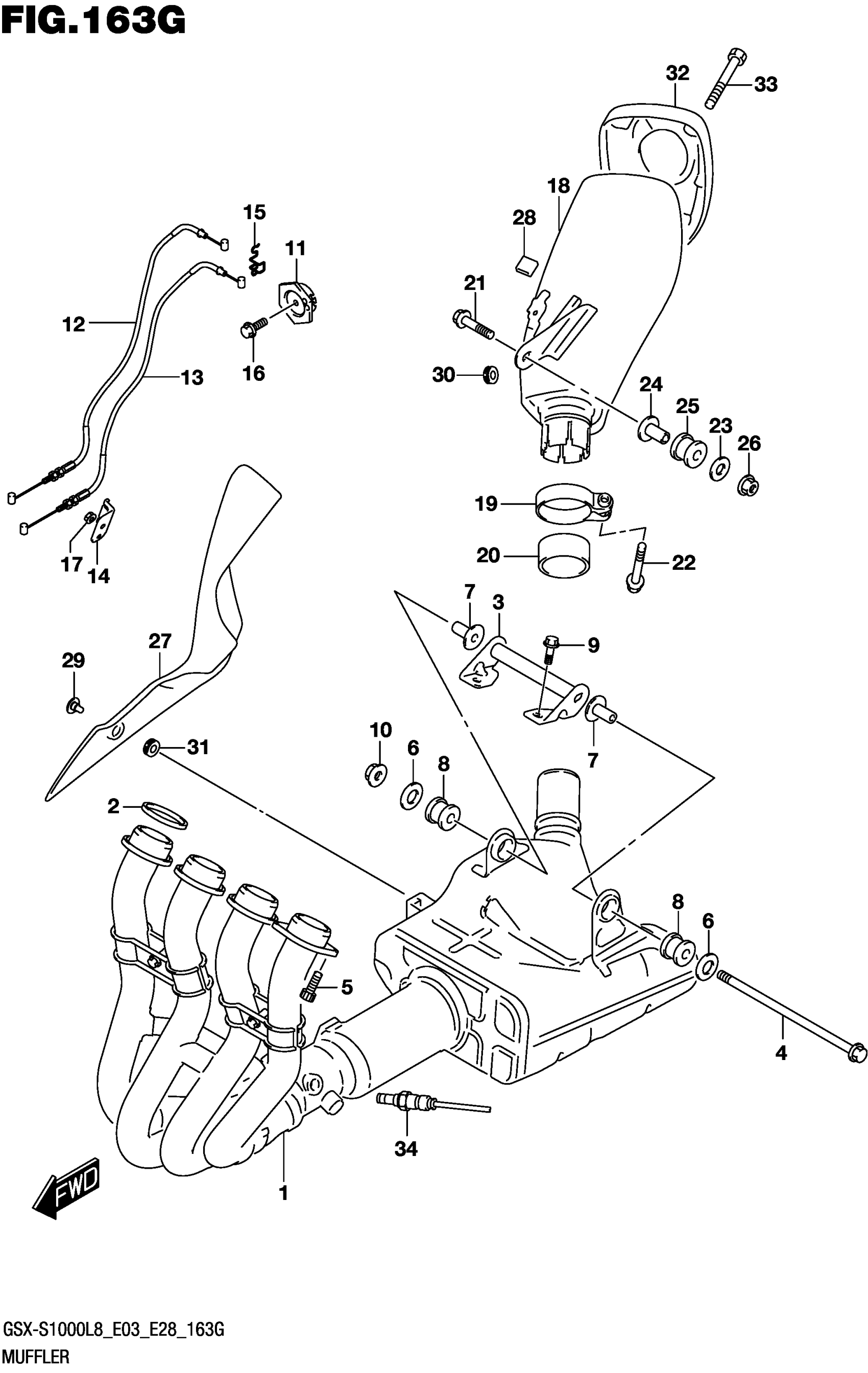

Suzuki GSX-S1000AL8 (2018) MUFFLER (GSX-S1000AL8 E33) Diagram

#

Description
Price

1

EXHAUST

14100-04K10

$1,929.58

2

GASKET, EXHAUST PIPE

14181-04K00

$8.29

3

BRACKET, EXH SPRT

14770-04K00

$26.13

4

BOLT (8X200)

09103-08464

$11.18

5

BOLT (8X25)

09106-08178

$3.24

6

WASHER (8.5X30X2.3)

09160-08503

$2.50

7

SPACER (8.6X12X24.2)

09180-08152

$5.83

8

CUSHION

09320-12077

$11.78

9

BOLT (8X16)

09135-08007

$2.93

10

NUT

08316-1008A

$2.45

11

PULLEY, CONTROLLER

11269-18G01

$28.78

12

CABLE, EXH VALVE NO.1

11276-04K00

$51.80

13

CABLE, EXH VALVE NO.2

11277-04K00

$51.80

14

BRACKET, EXHAUST VALVE CABLE

14250-21H00

$9.90

15

GUIDE, EXHAUST VALVE CABLE

14252-14J00

$7.37

16

BOLT

01547-0516A

$1.55

17

NUT

08316-1006A

$2.19

18

BODY, MUFFLER

14310-04K00-H01

$494.52

19

CLAMP, MUFFLER CONNECTOR

14459-21H30

$29.33

20

CONNECTOR, JT

14771-42F40

$25.95

21

BOLT (8X45)

09106-08164

$6.38

22

BOLT (8X40)

09106-08162

$4.77

23

WASHER (8.5X30X2.3)

09160-08503

$2.50

24

SPACER (8.6X12X24.2)

09180-08152

$5.83

25

CUSHION

09320-12048

$5.11

26

NUT

08316-1008A

$2.45

27

COVER, MUFFLER FRONT

14780-04K00

$230.25

28

GROMMET

14795-10FA0

$5.58

29

SCREW (6X12)

09139-06124

$4.52

30

CUSHION (4X12X8) This part replaces 09320-04009.

09320-04013

$1.85

31

CUSHION (8.4X18X6)

09320-08066

$8.24

32

COVER, MUF RR This part replaces 14791-04K10.

14791-04K12

$85.97

33

BOLT (6X15) This part replaces 09106-06069.

09106-06078

$3.37

34

SENSOR,OXYGEN

18213-04K00

$315.67
