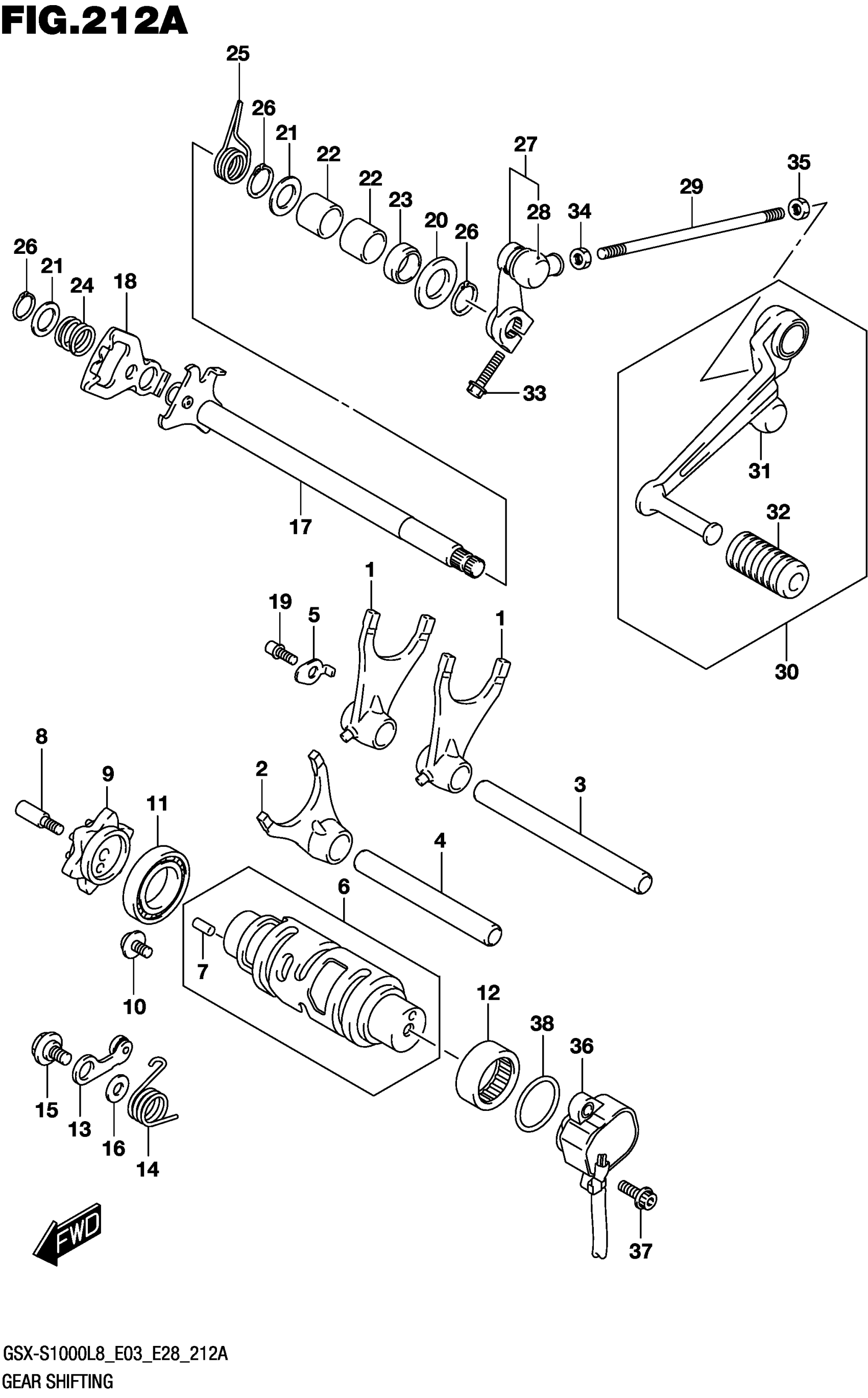

Suzuki GSX-S1000AL8 (2018) GEAR SHIFTING Diagram

FORK, GEAR SHIFT NO.1

25211-35F11

$86.59

FORK, GEAR SHIFT NO.3

25231-35F11

$105.82

SHAFT, GEAR SHIFT FORK NO.1

25411-24F00

$29.10

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$25.68

RETAINER, GEAR SHIFT FORK

25451-35F00

$6.05

CAM,GEAR SHIFT

25310-40F00

$256.53

PIN (4X13.8)

04221-04089

$1.49

BOLT, GEAR SHIFT CAM PLATE

25312-42F01

$7.95

PLATE, GEAR SHIFT CAM

25381-13E00

$56.02

SCREW (6X12)

09136-06147

$3.20

BEARING (25X47X8)

09262-25006

$25.54

BEARING (25X32X12) | LH

09263-25018

$21.39

STOPPER, SHIFT CAM

25350-35F00

$34.15

SPRING, GEAR SHIFT CAM

25355-03G00

$5.10

BOLT (6X14.3)

09111-06041

$2.61

WASHER

08211-06141

$1.59

SHAFT,GEAR SHIFT

25510-40F00

$114.48

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$24.37

STOPPER, GEAR SHIFT ARM

25671-35F00

$4.58

WASHER (14X29X0.8) | LH

09160-14016

$1.93

SHIM (14X22X1)

09181-14167

$2.53

BEARING (14X20X12)

09263-14027

$13.52

OIL SEAL (14X22X6)

09283-14006

$6.70

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

OIL SEAL (14X22X6)

09283-14011

Unavailable

SPRING

09440-17009

$1.71

SPRING

09444-20003

$6.13

CIRCLIP

08331-3114A

$1.91

ARM COMP,GEAR S This part replaces 25520-04K10.

25520-04K11

$43.27

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

ROD, GEAR SHIFT LINK

25525-24F10

$10.97

LEVER ASSY, GEAR SHIFT This part replaces 25600-04K10.

25600-04K11

$100.83

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

.RUBBER, GEAR SHIFT PEDAL

25652-20C00

$5.44

BOLT

01547-0620A

$2.03

NUT

08310-0006A

$1.84

NUT

09140-06025

$2.05

SENSOR ASSY,GEA This part replaces 37730-41G02.

37730-41G03

$77.78

BOLT (5X16)

09106-05023

$2.92

O RING (D:2.4,ID:26.2)

09280-26005

$2.30
