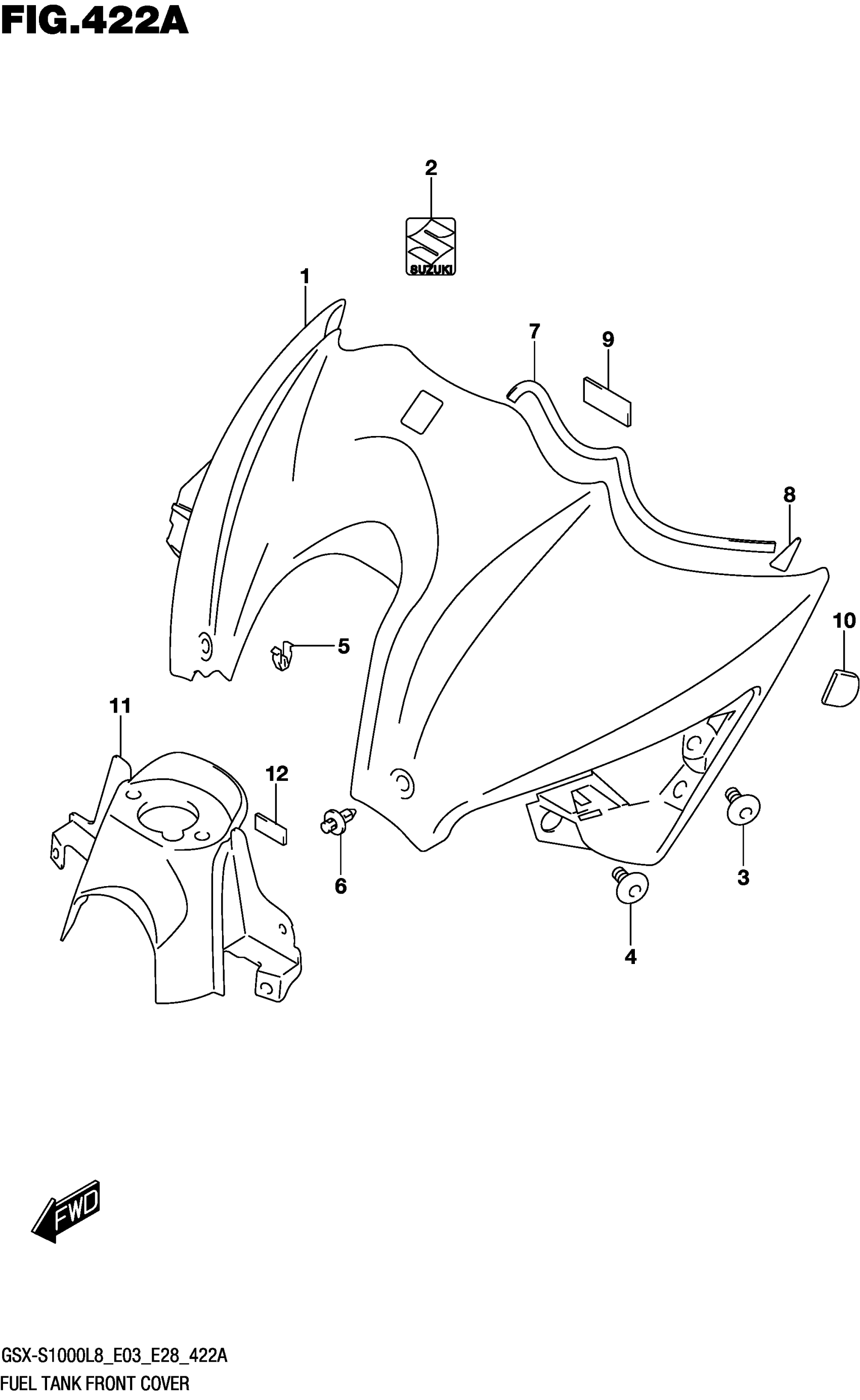

Suzuki GSX-S1000AL8 (2018) FUEL TANK FRONT COVER (GSX-S1000AL8 E03) Diagram

COVER,FUEL TANK | FOR KEL This part replaces 44291-04K00-YSF.

44291-04K01-YSF

$120.08

COVER,FUEL TANK | FOR AV4 This part replaces 44291-04K00-YYG.

44291-04K01-YYG

$134.58

EMBLEM, "S"

68281-47HA0

$7.77

BOLT (6X12)

09106-06117

$5.10

SCREW (6X12)

09139-06200

$2.92

CLIP

09409-08326

$2.48

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

CUSHION,TANK COVER UPR NO.1

44292-04K00

$3.28

CUSHION,TANK CO This part replaces 44293-04K00.

44293-04K01

$6.82

CUSHION,TANK COVER UPR NO.3 This part replaces 44294-04K00.

44294-04K01

$3.95

CUSHION,FUEL TANK COVER SIDE This part replaces 44542-08J00.

44542-08J01

$3.65

COVER, FUEL TANK LOWER

44271-04K01

$22.87

CUSHION (10X30X2)

44894-24A00

$1.72

COLOR:AV4=YVB(BLACK)/YYG(RED)

SPECIAL NOTE

Unavailable

COLOR:KEL=YVB(BLACK)/YSF(BLUE)

SPECIAL NOTE

Unavailable
