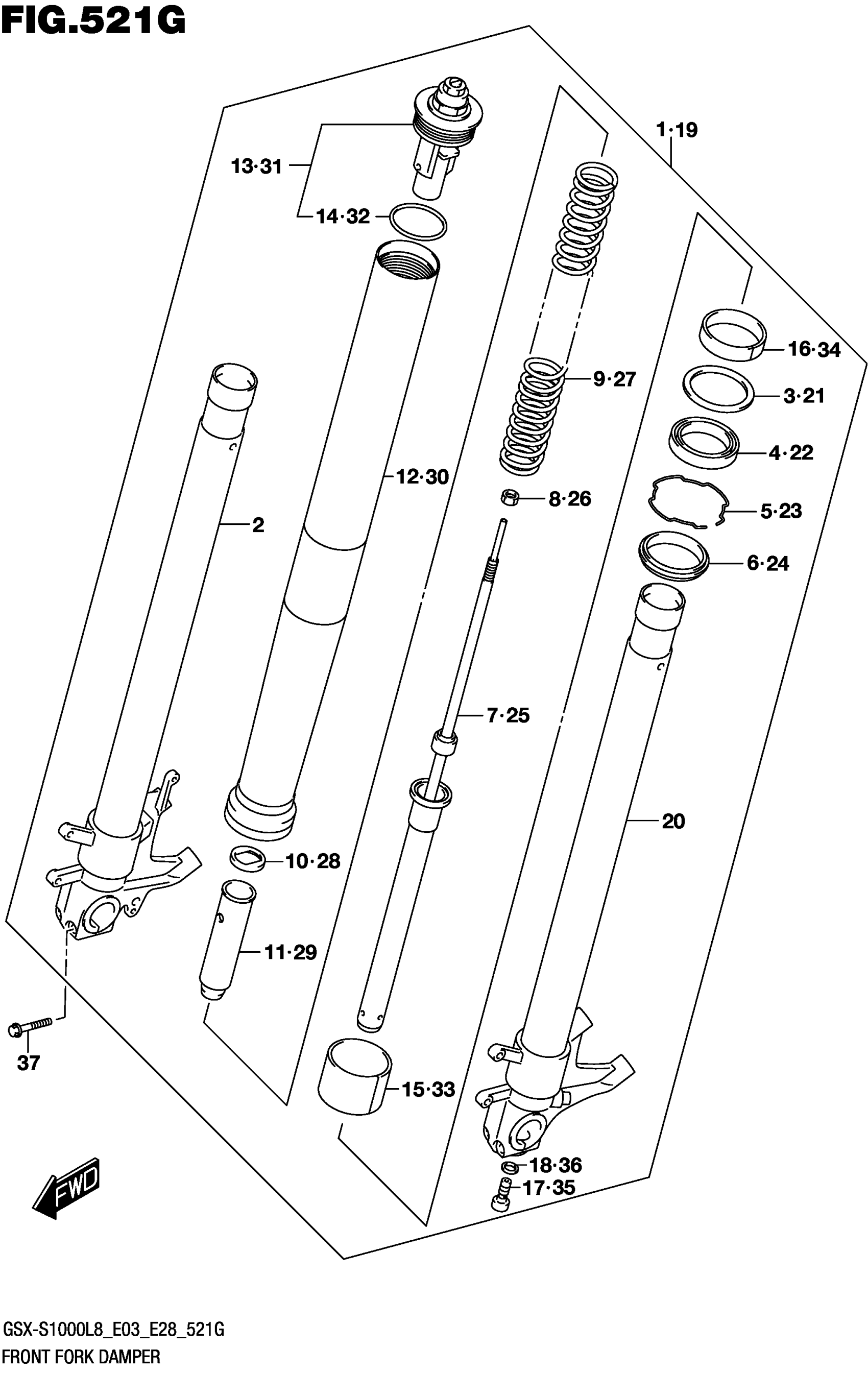

Suzuki GSX-S1000AL8 (2018) FRONT FORK DAMPER (GSX-S1000AL8 E33) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-04K40

$1,534.30

2

.TUBE,INNER RH

51110-04K40

$645.57

3

.WASHER

51158-14200

$5.05

4

.OIL SEAL

51153-44G00

$31.18

5

.RING, OIL SEAL STOPPER

51156-14200

$5.05

6

.SEAL, DUST

51173-02FA0

$26.58

7

.CYLINDER

51146-04K00

$357.73

8

.NUT, ROD

51352-13A60

$3.03

9

.SPRING

51171-04K00

$63.35

10

.GUIDE, SPRING

51158-40F30

$10.42

11

.SPACER, SPRING

51176-40F30

$26.38

12

.TUBE, OUTER

51131-04K40

$505.75

13

.CAP

51351-04K40

Unavailable

14

..O RING

62278-14100

$4.03

15

.PISTON

51112-31J00

$11.17

16

.SLIDEMETAL

51152-31J00

$10.38

17

.BOLT

51147-24F50

$8.73

18

.GASKET

51148-41310

$2.26

19

DAMPER ASSY, FRONT FORK LH

51104-04K40

Unavailable

20

TUBE,INNER LH This part replaces 51120-04K40.

51120-04K41

$424.68

21

.WASHER

51158-14200

$5.05

22

.OIL SEAL

51153-44G00

$31.18

23

.RING, OIL SEAL STOPPER

51156-14200

$5.05

24

.SEAL, DUST

51173-02FA0

$26.58

25

.CYLINDER

51146-04K00

$357.73

26

.NUT, ROD

51352-13A60

$3.03

27

.SPRING

51171-04K00

$63.35

28

.GUIDE, SPRING

51158-40F30

$10.42

29

.SPACER, SPRING

51176-40F30

$26.38

30

.TUBE, OUTER

51131-04K40

$505.75

31

.CAP

51351-04K40

Unavailable

32

..O RING

62278-14100

$4.03

33

.PISTON

51112-31J00

$11.17

34

.SLIDEMETAL

51152-31J00

$10.38

35

.BOLT

51147-24F50

$8.73

36

.GASKET

51148-41310

$2.26

37

BOLT

51166-24F60

$5.58
