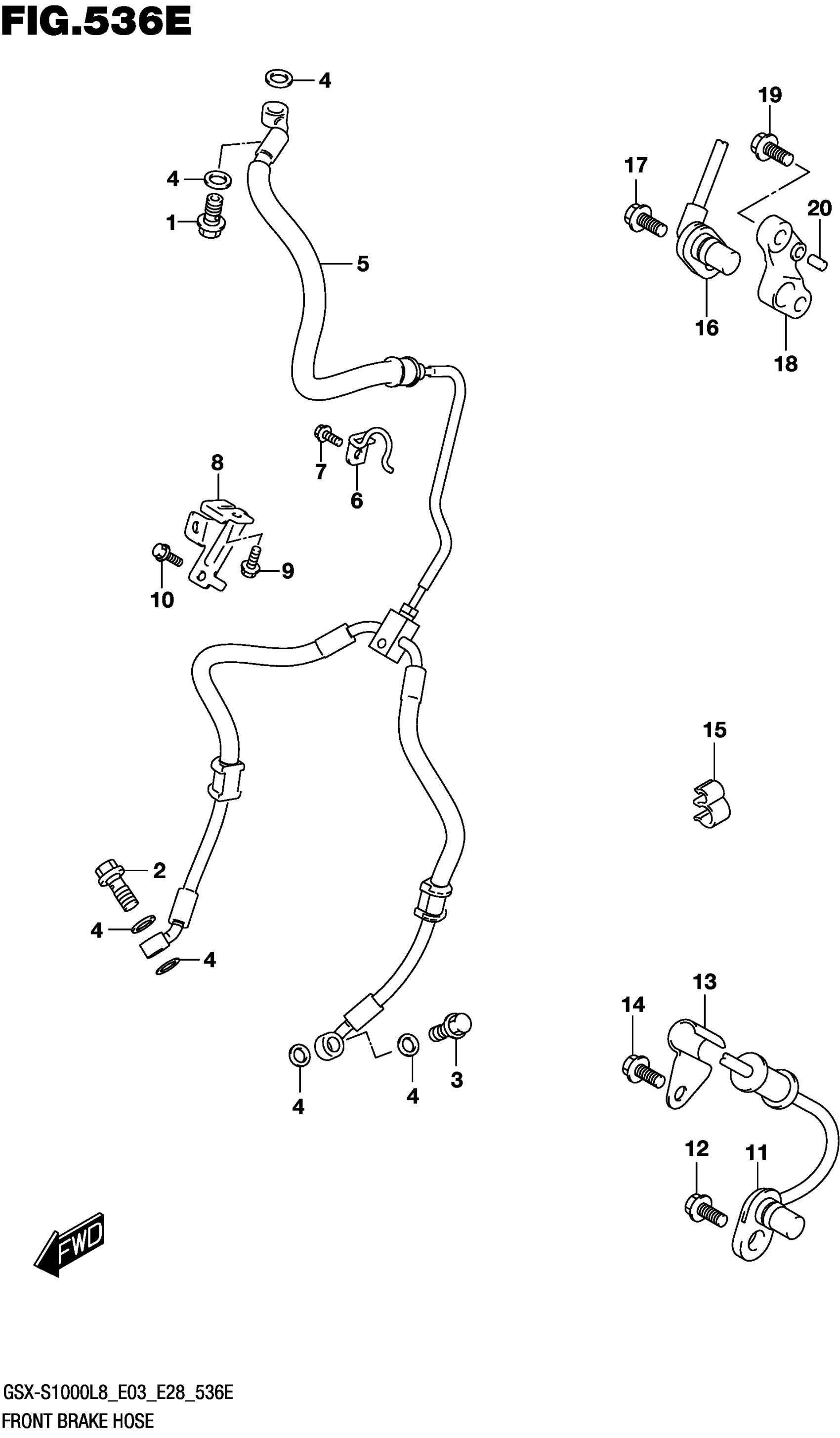

Suzuki GSX-S1000AL8 (2018) FRONT BRAKE HOSE (GSX-S1000L8 E33) Diagram

#

Description
Price

1

UNION | UPPER

09360-10062

$6.43

2

UNION | LOWER RH

09360-10062

$6.43

3

UNION | LOWER LH

09360-10062

$6.43

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

HOSE, FRONT BRAKE

59400-04K40

Unavailable

6

CLAMP, FR BRAKE HOSE UPPER

59260-04K10

Unavailable

7

BOLT

01547-0612B

$1.49

8

CLAMP,FR BRAKE HOSE LOWER

59271-04K00

$12.45

9

BOLT

01550-0612A

$1.97

10

BOLT

01547-0616A

$2.03

11

SENSOR, FR WHEEL ABS

55710-04K10

$185.13

12

BOLT

01547-0612A

$2.03

13

CLAMP, SENSOR LEAD FRONT

55731-23H00

Unavailable

14

BOLT

01547-0612A

$2.03

15

CLAMP

09408-00266

$2.51

16

SENSOR,RR WHEEL ABS

65710-04K10

$66.07

17

BOLT

01547-0612A

$2.03

18

BRACKET, SPEED SENSOR RR

65721-04K00

$19.45

19

BOLT (6X16)

09103-06240

$3.08

20

PIN (4X13.8)

04221-04089

$1.49
