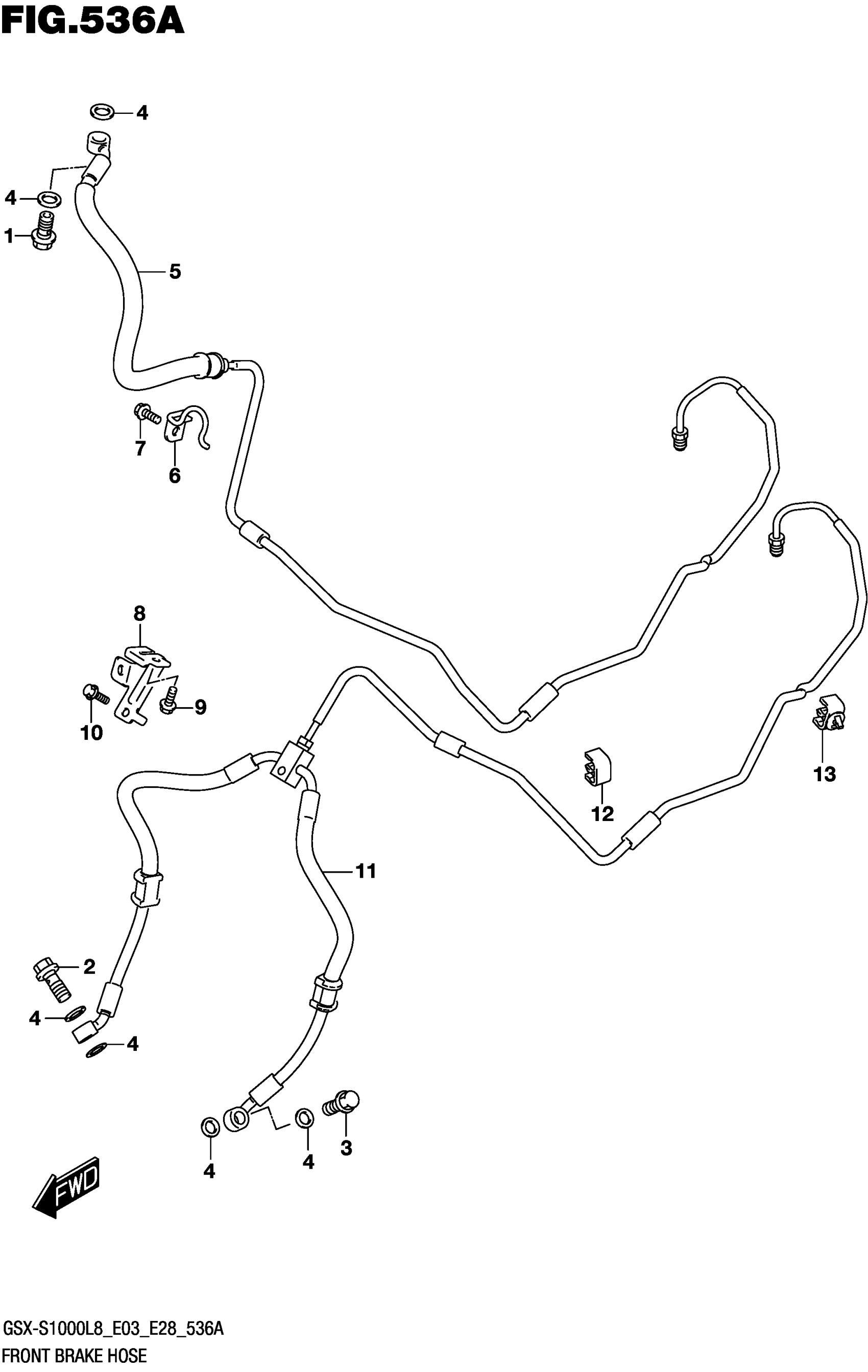

Suzuki GSX-S1000AL8 (2018) FRONT BRAKE HOSE (GSX-S1000AL8 E03) Diagram

#

Description
Price

1

UNION | UPPER

09360-10062

$6.43

2

UNION | LOWER RH

09360-10062

$6.43

3

UNION | LOWER LH

09360-10062

$6.43

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

HOSE ASSY, FRONT MASTER TO

59200-04K20

Unavailable

5

UNIT

59200-04K20

Unavailable

6

CLAMP, FR BRAKE HOSE UPPER

59260-04K10

Unavailable

7

BOLT

01547-0612B

$1.49

8

CLAMP,FR BRAKE HOSE LOWER

59271-04K00

$12.45

9

BOLT

01550-0612A

$1.97

10

BOLT

01547-0616A

$2.03

11

HOSE ASSY, FR UNIT TO CALIPER

59400-04K20

Unavailable

12

CLAMP

09403-06324

Unavailable

13

CLAMP

09403-07334

Unavailable
