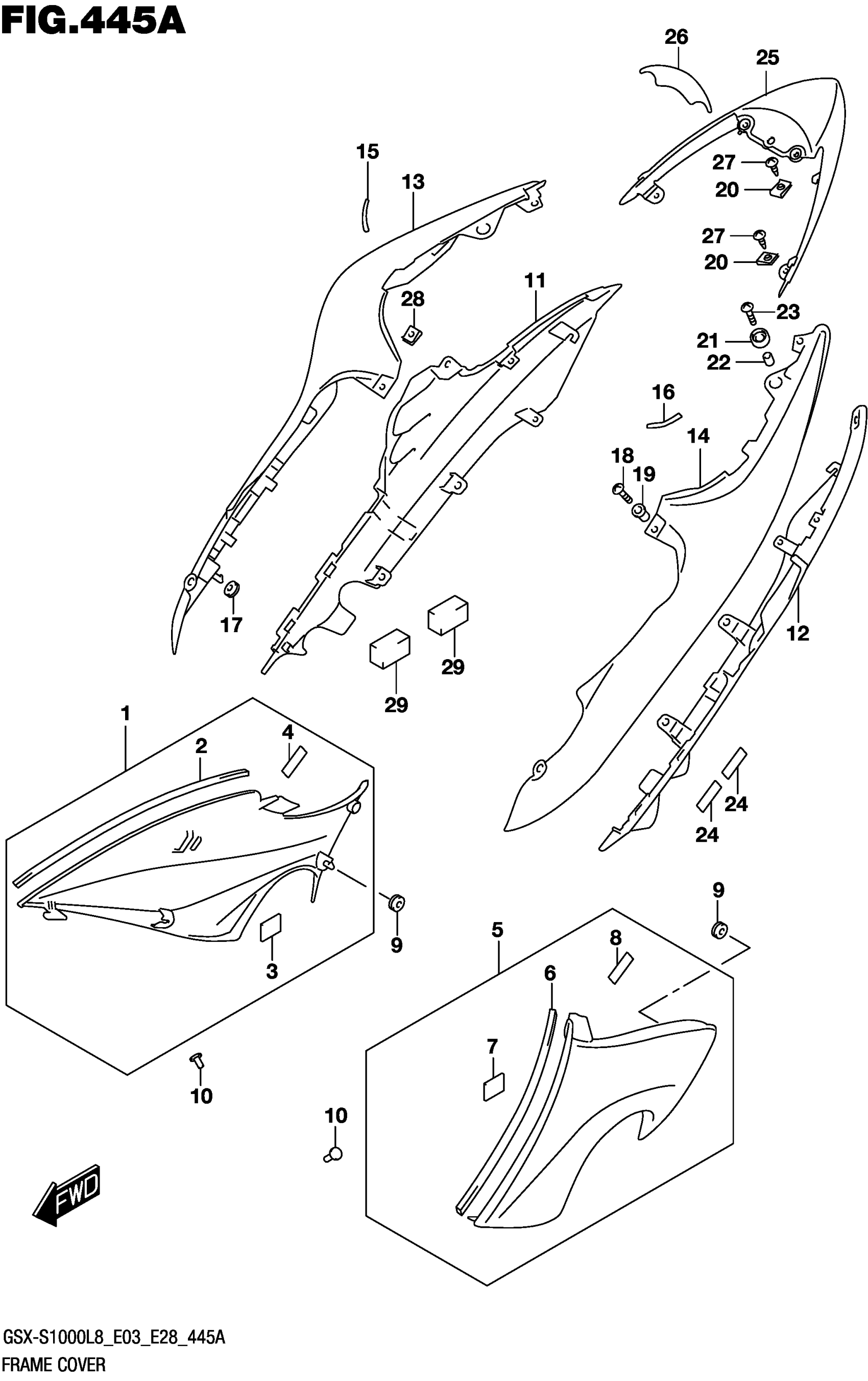

Suzuki GSX-S1000AL8 (2018) FRAME COVER (GSX-S1000AL8 E03) Diagram

#

Description
Price

1

COVER,FRAME FRONT RH

47110-04K00

$75.48

2

.CUSHION, FRONT NO.3

44277-37H00

$6.87

3

.FASTENER

44572-13G00

$10.59

4

.CUSHION, FRONT NO.2

94476-38C00

Unavailable

5

COVER,FRAME FRONT LH

47210-04K00

$58.38

6

.CUSHION, FRONT NO.3

44277-37H00

$6.87

7

.FASTENER

44572-13G00

$10.59

8

.CUSHION, FRONT NO.2

94476-38C00

Unavailable

9

CUSHION

09320-06504

$4.61

10

CLIP

09409-10314

$2.06

11

COVER,FRAME RR LWR RH

47131-04K00

$27.65

12

COVER,FRAME RR LWR LH

47231-04K00

Unavailable

13

COVER, FRAME REAR UPPER RH

47121-04K00-YVB

$204.08

13

(BLACK)

47121-04K00-YVB

$204.08

14

COVER, FRAME REAR UPPER LH

47221-04K00-YVB

$141.28

14

(BLACK)

47221-04K00-YVB

$141.28

15

TAPE,FRAME COVER RH

47313-04K01

Unavailable

16

TAPE,FRAME COVER LH

47314-04K01

$14.37

17

CUSHION

09320-08028

$2.82

18

SCREW

02142-1520B

$2.34

19

NUT

09159-05019

$6.63

20

NUT (M5)

09148-05047

$2.10

21

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

22

SPACER (6.5X10X7)

09180-06283

$1.97

23

SCREW (6X20)

09136-06105

$2.06

24

TAPE (6X25X0.13)

94443-06G00

$3.11

25-1

COVER,FRAME CENTER (BLUE) | FOR KEL

47311-04K00-YSF

$120.37

25-2

COVER, FRAME CENTER (RED) | FOR AV4

47311-04K00-YYG

$128.98

26

TAPE,FRAME COVER CTR

47312-04K00

$14.37

27

SCREW

03541-0512B

$1.82

28

NUT (M5)

09148-05047

$2.10

29

CUSHION, FRAME COVER LOWER | CUT AS REQUIRED

17798-39G00

$6.38

30

COLOR:AV4=YVB(BLACK)/YYG(RED)

SPECIAL NOTE

Unavailable

30

COLOR:KEL=YVB(BLACK)/YSF(BLUE)

SPECIAL NOTE

Unavailable
