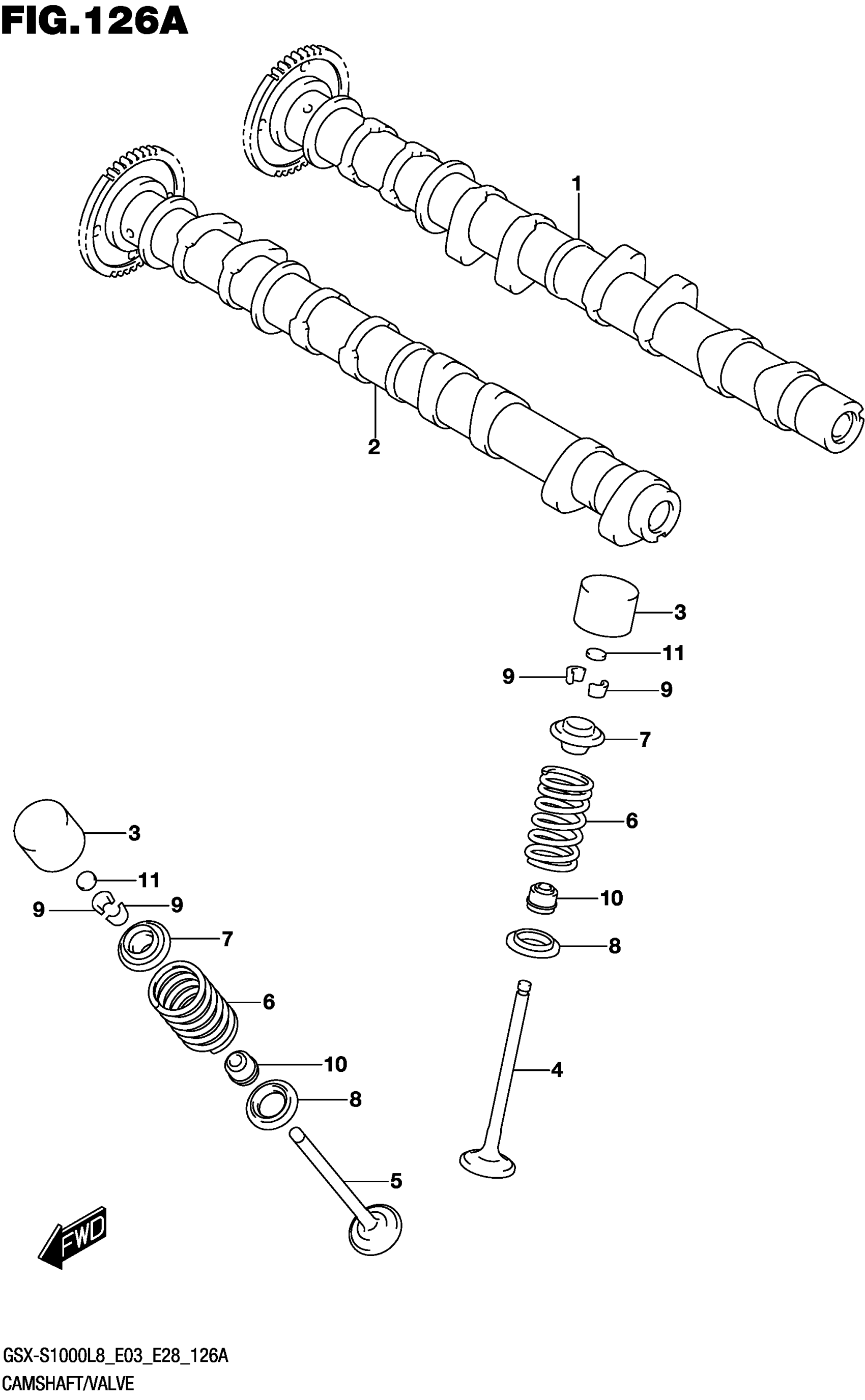

Suzuki GSX-S1000AL8 (2018) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT,INTAKE

12710-04K00

$373.57

2

CAMSHAFT,EXHAUST

12720-04K00

$373.57

3

TAPPET

12891-47H00

$68.43

4

VALVE, INTAKE

12911-04K00

$45.65

5

VALVE, EXHAUST This part replaces 12912-04K00.

12912-04K01

$42.68

6

SPRING,VALVE

12921-04K00

$11.81

7

RETAINER, VALVE SPRING

12931-04K00

$10.81

8

SEAT, VALVE SPRING

12933-29G00

$7.07

9

COTTER, VALVE

12932-32C00

$2.03

10

OIL SEAL (4.5X10X8)

09289-04002

$6.49

11-1

SHIM, TAPPET (T:1.20)

12892-05C00-120

$11.60

11-2

SHIM, TAPPET (T:1.25)

12892-05C00-125

$11.83

11-3

SHIM, TAPPET (T:1.30)

12892-05C00-130

$10.06

11-4

SHIM, TAPPET (T:1.35)

12892-05C00-135

$10.06

11-5

SHIM, TAPPET (T:1.40)

12892-05C00-140

$11.83

11-6

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.87

11-7

SHIM, TAPPET (T:1.50)

12892-05C00-150

$11.83

11-8

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.69

11-9

SHIM, TAPPET (T:1.60)

12892-05C00-160

$9.69

11-10

SHIM, TAPPET (T:1.65)

12892-05C00-165

$9.69

11-11

SHIM, TAPPET (T:1.70)

12892-05C00-170

$11.60

11-12

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.87

11-13

SHIM, TAPPET (T:1.80)

12892-05C00-180

$11.38

11-14

SHIM, TAPPET (T:1.85)

12892-05C00-185

$11.83

11-15

SHIM, TAPPET (T:1.90)

12892-05C00-190

$11.83

11-16

SHIM, TAPPET (T:1.95)

12892-05C00-195

$11.83

11-17

SHIM, TAPPET (T:2.00)

12892-05C00-200

$11.60

11-18

SHIM, TAPPET (T:2.05)

12892-05C00-205

$11.83

11-19

SHIM, TAPPET (T:2.10)

12892-05C00-210

$11.83

11-20

SHIM, TAPPET (T:2.15)

12892-05C00-215

$11.83

11-21

SHIM, TAPPET (T:2.20)

12892-05C00-220

$11.83

12

SHIM SET, TAPPET | OPT

12800-05830

$1,211.58

12

T:1.20, 1.25...2.95, 3.00 | NOT ILLUSTRATED

12800-05830

$1,211.58

12

(5PCS.EACH) & CASE

12800-05830

$1,211.58

13

.CASE, TAPPET SHIM | OPT

99000-69491

Unavailable

13

.CASE,TAPPET SHIM | NOT ILLUSTRATED

99000-69491

Unavailable
