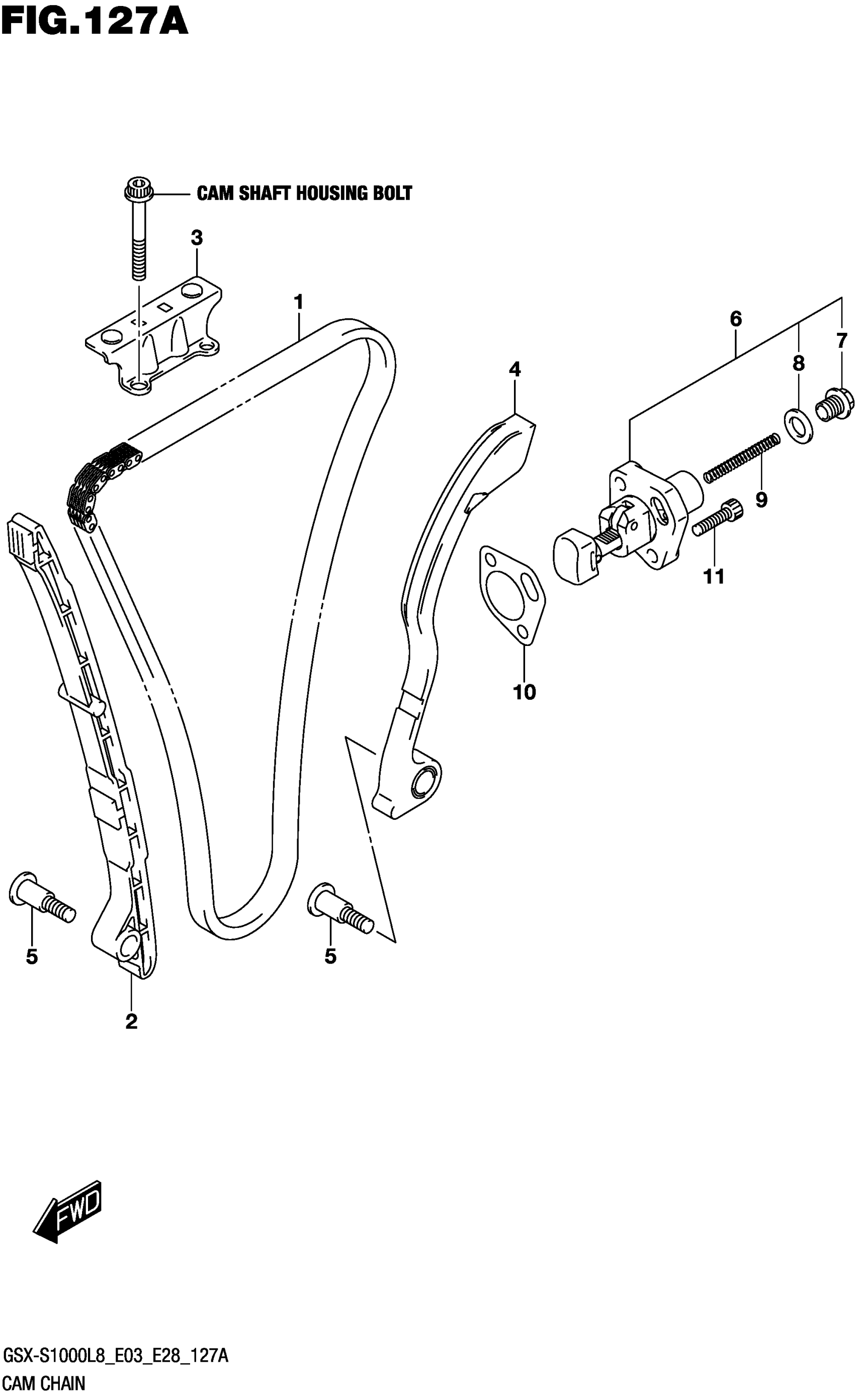

Suzuki GSX-S1000AL8 (2018) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAMSHAFT DRIVE

12760-04K00

$134.98

2

GUIDE, CAM CHAIN NO.1 This part replaces 12771-21H00.

12771-21H01

$31.48

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35F10.

12782-35F11

$22.80

4

TENSIONER,CAM CHAIN This part replaces 12811-21H00.

12811-21H01

$64.88

5

BOLT, CAM CHAIN TENSIONER

12812-31G00

$4.58

6

ADJUSTER ASSY,TENSIONER

12830-41G11

$145.47

7

.PLUG

12833-05A00

$16.28

8

.GASKET

12837-24F10

$4.78

9

SPRING

12831-41G00

$5.62

10

GASKET, ADJUSTER

12837-18G00

$4.78

11

BOLT (6X25)

07130-0625A

$2.62
