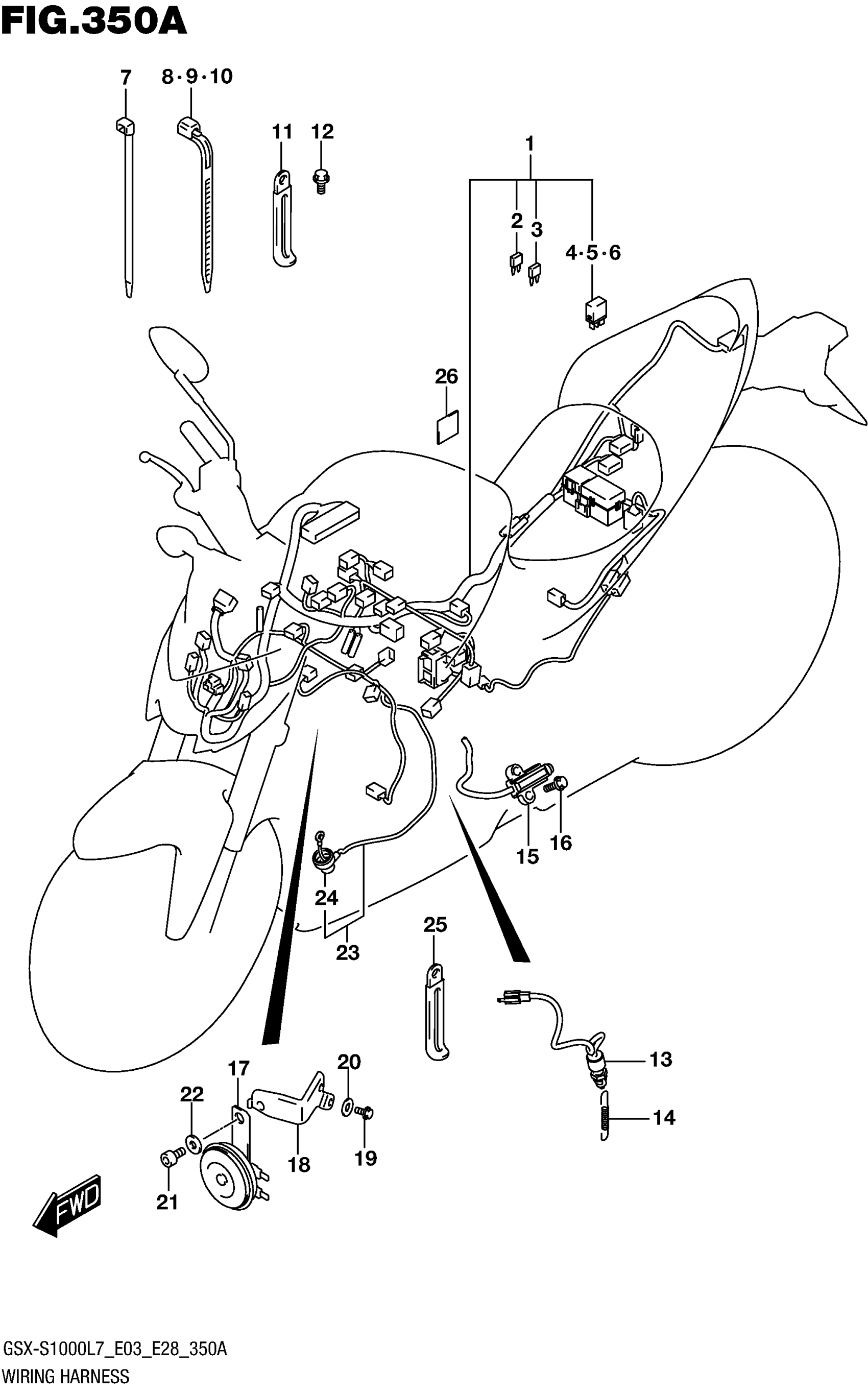

Suzuki GSX-S1000AL7 (2017) WIRING HARNESS (GSX-S1000L7 E33) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-04K20

$842.55

2

.FUSE (10A)

09481-10504

$2.06

3

.FUSE (15A)

09481-15504

$2.07

4

.RELAY ASSY | FOR FUEL PUMP

38860-76F01

$34.37

5

.RELAY ASSY | FOR FAN MOTOR

38860-76F01

$34.37

6

.RELAY ASSY | FOR SIDE STAND

38860-76F01

$34.37

7

CLAMP (L:145)

09407-14407

$3.57

8

CLAMP (L:165)

09407-18402

$2.19

9

CLAMP (L:190)

09407-19401

$3.05

10

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

12

SCREW (6X12)

09139-06062

$3.03

13

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

14

SPRING

09443-06054

$3.85

15

SWITCH ASSY,SIDE STAND This part replaces 37840-35F00.

37840-35F02

$56.65

16

BOLT

01550-0620A

$1.97

17

HORN ASSY This part replaces 38500-48G20.

38500-48G21

$55.08

18

PLATE, HORN

38590-04K10

$13.38

19

BOLT

01500-0616A

$1.78

20

WASHER (6.5X18X1.6)

09160-06109

$1.49

21

BOLT

07130-0812A

$3.72

22

WASHER (8.5X22X2)

09160-08127

$2.12

23

WIRE, OIL PRESSURE SWITCH LEA

36851-44G01

$17.47

24

.CAP, OIL PRESSURE SWITCH

36618-31J00

Unavailable

25

CLAMP (L:45)

09404-06429

$1.83

26

CUSHION,HELMET BOX (60X60X3.0

92213-33G00

$5.99
