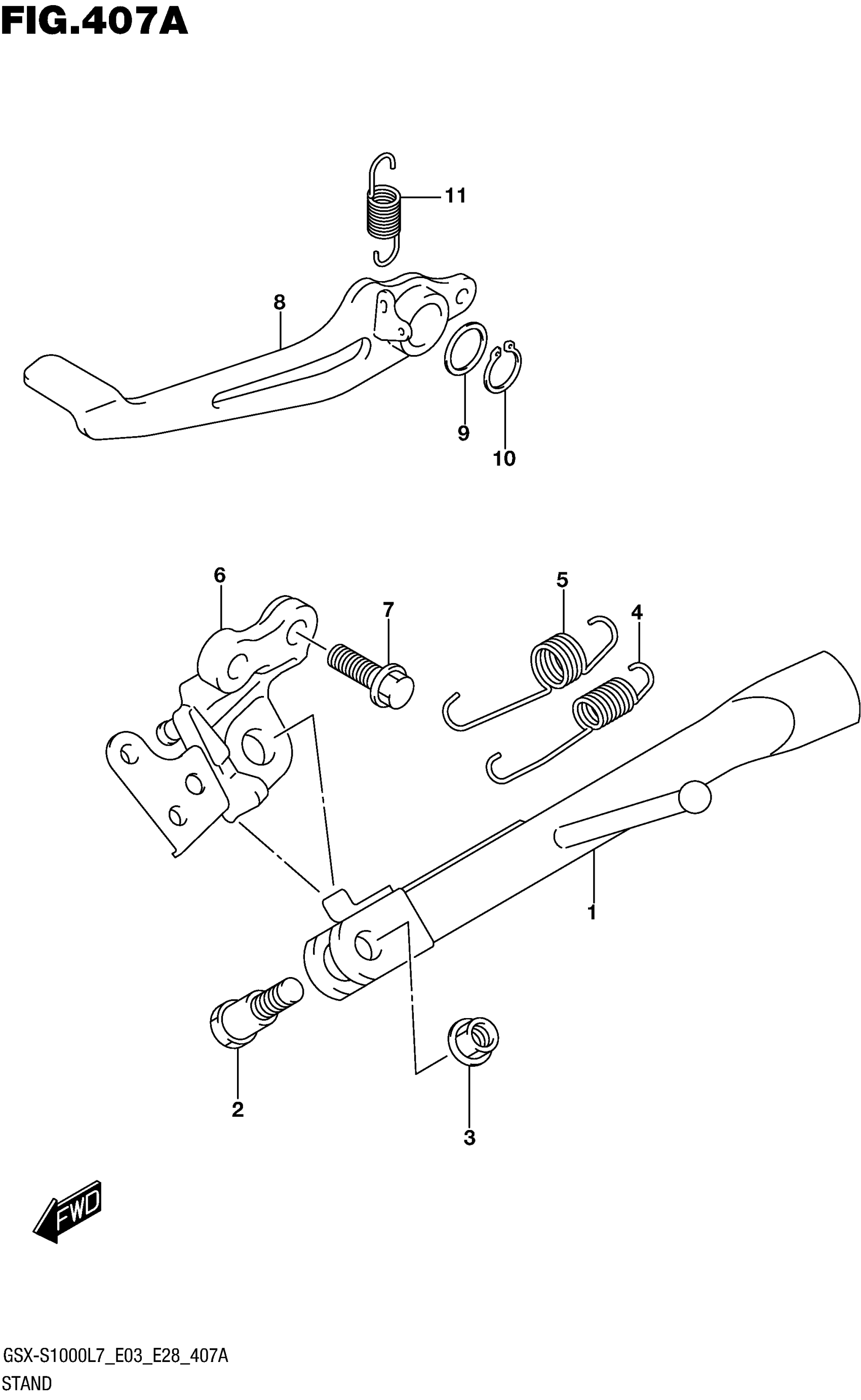

Suzuki GSX-S1000AL7 (2017) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-04K10

$130.65

2

BOLT (10X21)

09111-10059

$6.95

3

NUT

08319-3110A

$2.73

4

SPRING | INNER

09443-14058

$5.64

5

SPRING | OUTER

09443-19011

$5.75

6

BRACKET, PROP STAND

42330-04K00

$129.62

7

BOLT (10X30)

09103-10366

$3.85

8

PEDAL, BRAKE

43110-04K00

$71.38

9

WASHER (18X24X1)

09160-18022

$2.92

10

CIRCLIP

08331-3118A

$2.13

11

SPRING

09443-13032

$5.42
