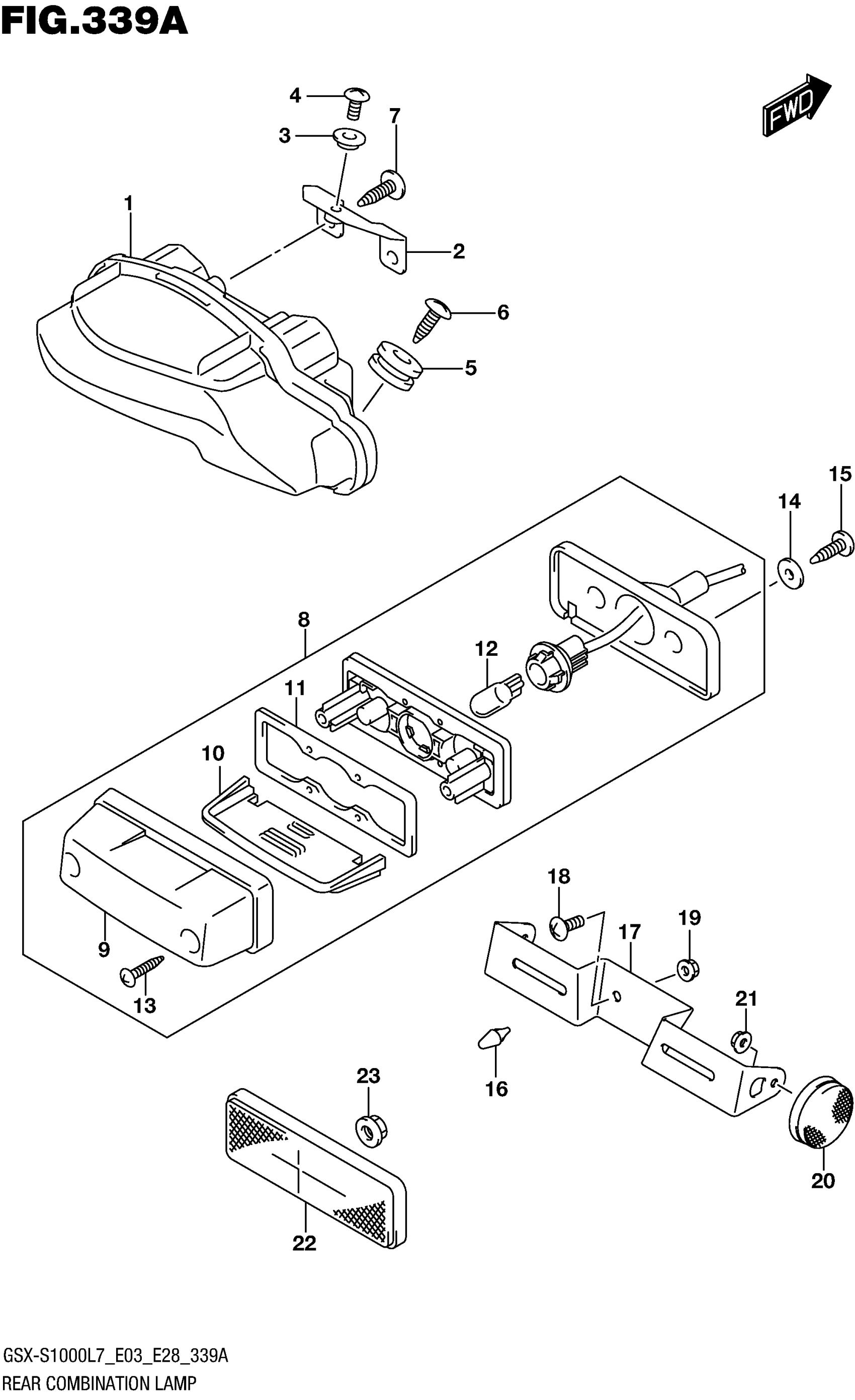

Suzuki GSX-S1000AL7 (2017) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMBINATION

35710-04K01

$224.50

2

BRACKET,REAR COMB UPPER

35726-04K00

$6.38

3

WASHER

09169-06071

$2.50

4

SCREW

02142-0612A

$1.49

5

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

6

SCREW

03541-0616B

$2.59

7

SCREW

03541-0516A

$1.49

8

LAMP ASSY,LICENSE

35910-16G90

$79.98

9

.COVER

35917-16G00

$12.40

10

.LENS

35912-16G01

$12.27

11

.GASKET

35913-16G00

Unavailable

12

.BULB (12V5W)

09471-12216

$5.36

13

.SCREW

03211-0416A

$1.49

14

WASHER (5.5X20X1.2)

09160-05501

$1.84

15

SCREW

03541-0540A

$1.49

16

CUSHION This part replaces 09321-06028.

09321-06038

$1.88

17

BRACKET,LICENSE PLATE

35927-44H30

$18.42

18

SCREW

02142-0616A

$1.49

19

NUT

09159-06096

$3.15

20

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

21

NUT

08316-1005A

$2.19

22

REFLECTOR ASSY, REAR

35970-07F01

$20.88

23

NUT

08316-1005A

$2.19
