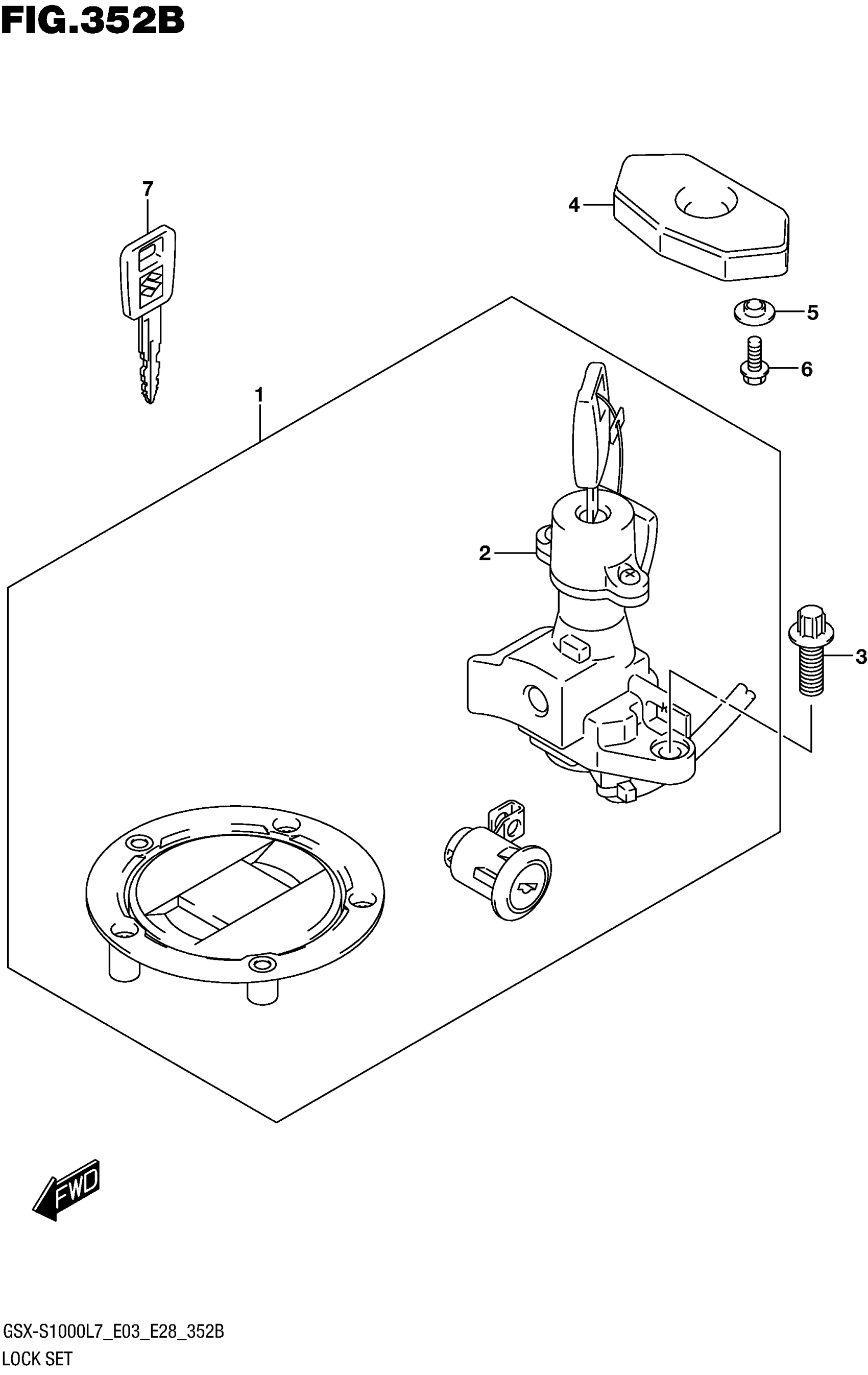

Suzuki GSX-S1000AL7 (2017) LOCK SET (GSX-S1000AL7 E03) Diagram

#

Description

Price

1

LOCK SET This part replaces 37101-04820.

37101-04824

$361.24

2

LOCK ASSY,STEER This part replaces 37100-04K10.

37100-04K12

$235.65

3

BOLT, STEERING LOCK (8X20) This part replaces 09119-08100.

37152-17K00

$3.68

4

COVER,STEERING LOCK This part replaces 37180-15H01.

37180-15HA0

$23.74

5

WASHER

09169-05024

$2.06

6

BOLT

01547-0512A

$1.49

7

KEY, BLANK | OPT

37146-11J00

$51.62
