Description

Price

1

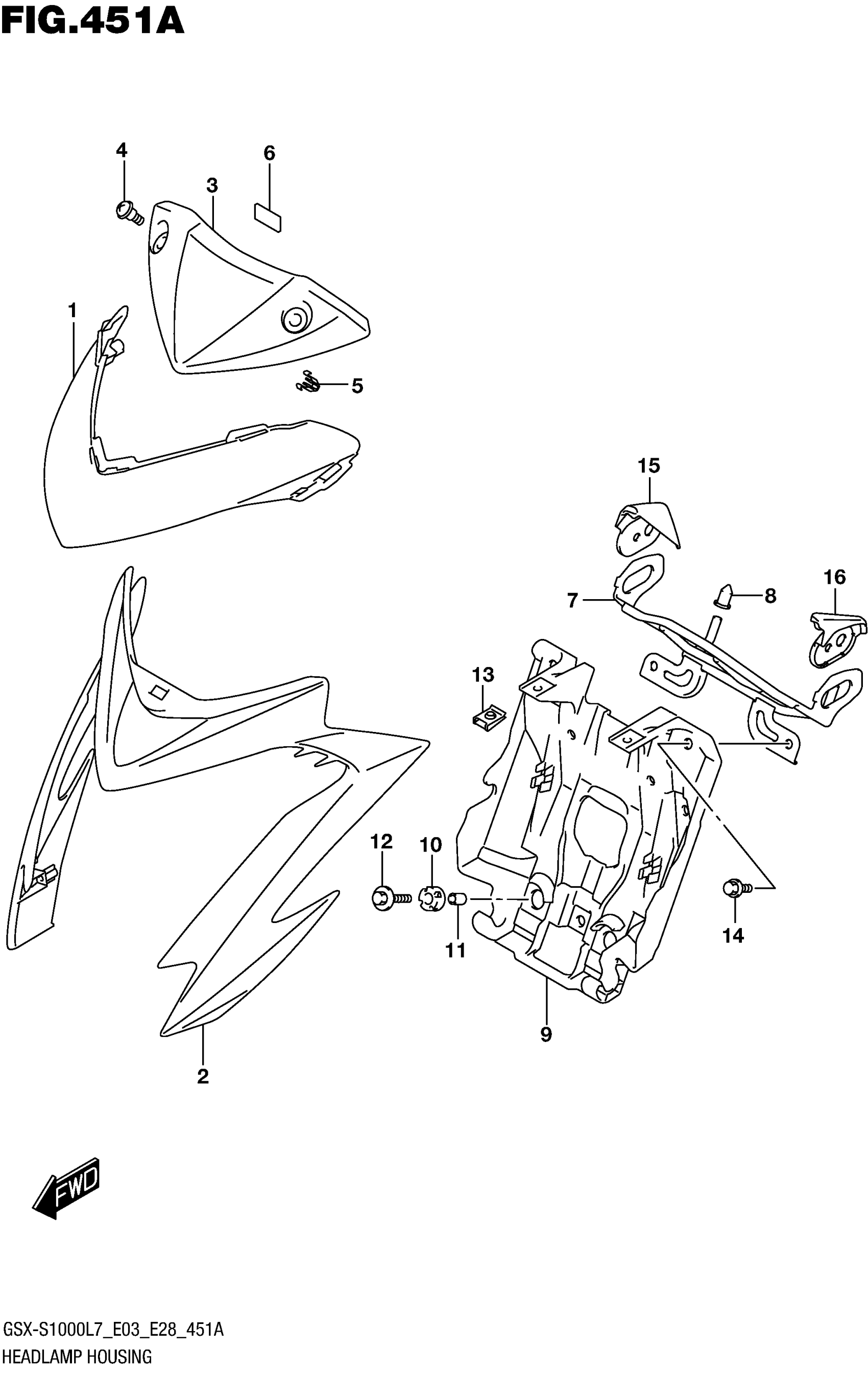

COVER, HEADLAMP LOWER

51831-04K00-YKV

$94.22

1

(BLACK)

51831-04K00-YKV

$94.22

2-1

COVER, HEADLAMP UPPER (GRAY) | FOR PGZ

51821-04K00-PGZ

$142.08

2-2

COVER,HEADLAMP (BLUE) | FOR YSF

51821-04K00-YSF

$157.23

2-3

COVER, HEADLAMP UPPER (RED) | FOR AV4

51821-04K00-YYG

$169.83

3

COVER,METER

51811-04K00

$31.28

4

SCREW (5X13)

09139-05503

$2.69

5

CLIP

09409-08326

$2.48

6

CUSHION (10X30X6)

33652-47F00

$3.70

7

BRACE,METER This part replaces 51850-04K00.

51850-04K10

$86.32

8

CUSHION, METER BRACE This part replaces 51831-30H00.

51831-30H10

$2.94

9

COVER,HEADLAMP REAR

51841-04K00

$37.15

10

CUSHION

09320-09010

$2.84

11

SPACER (6.5X9X10)

09180-06307

$3.05

12

BOLT (6X25)

09116-06131

$2.36

13

NUT

09148-06020

$4.38

14

BOLT (6X12)

09111-06107

$2.60

15

COVER,HEADLAMP REAR RH

51842-04K00

$12.97

16

COVER,HEADLAMP REAR LH

51843-04K00

$16.00

17

COLOR :

SPECIAL NOTE

Unavailable

17

AV4=YVB(BLACK),YYG(RED)
