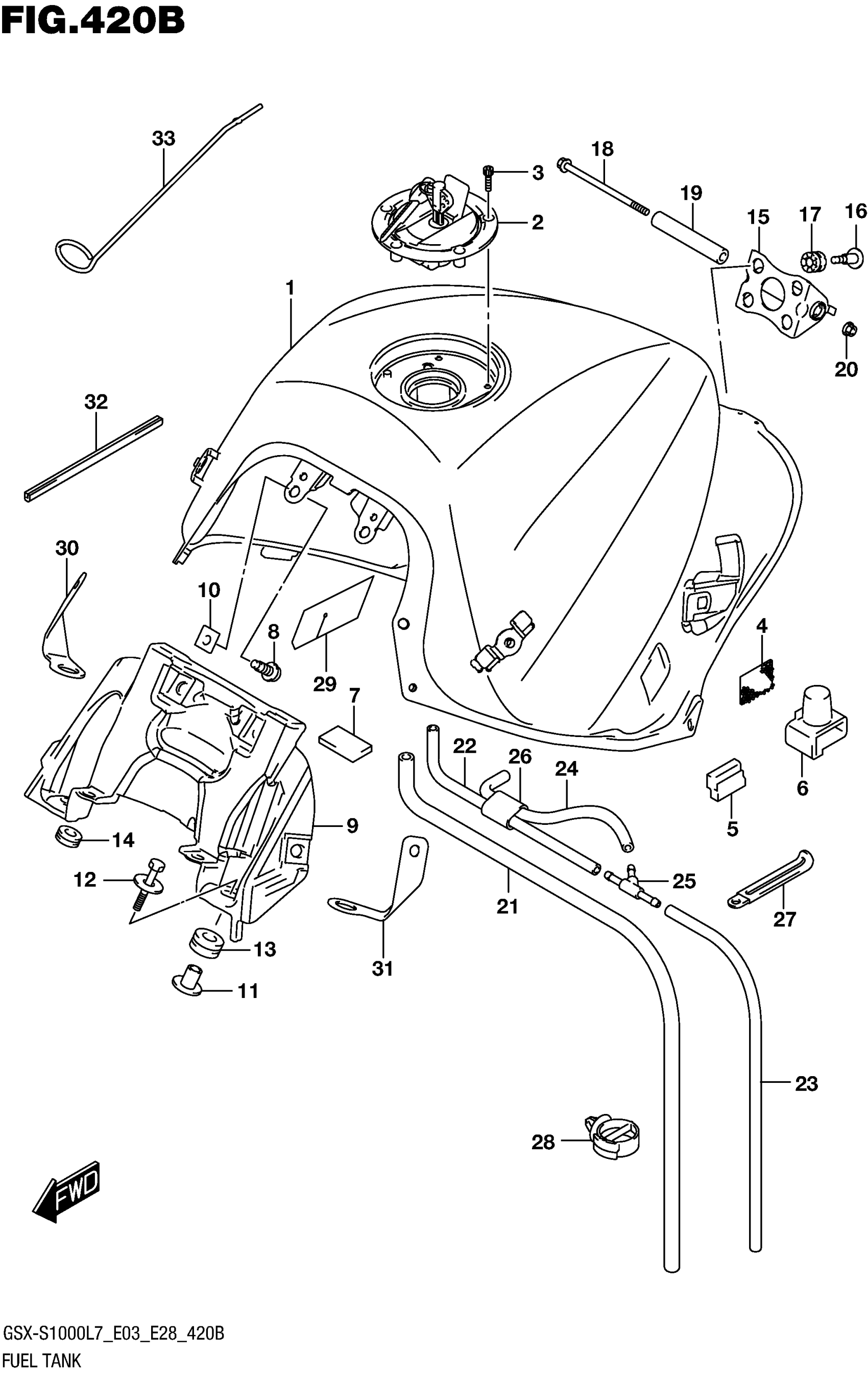

Suzuki GSX-S1000AL7 (2017) FUEL TANK (GSX-S1000AL7 E03) Diagram

TANK ASSY, FUEL (GRAY) | FOR PGZ

44100-04K10-PGZ

$1,248.03

TANK ASSY, FUEL (BLUE) | FOR YSF

44100-04K10-YSF

Unavailable

TANK ASSY, FUEL (BLACK) | FOR AV4

44100-04K10-YVB

$1,315.03

CAP SET,FUEL TA This part replaces 44200-17810.

44200-17811

$215.69

BOLT

44244-11J00

$4.00

FASTENER

44572-13G00

$11.07

CUSHION, FUEL TANK SIDE

44541-41G00

$5.98

CUSHION, FUEL TANK REAR This part replaces 44542-04K00.

44542-04K01

$8.87

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99

SCREW, FUEL TANK FRONT BRKT

44543-04K00

$4.22

BRACKET, FUEL TANK FRONT

44521-04K00

$94.98

NUT

44523-47H00

$10.02

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

BOLT (6X30)

09116-06172

$2.50

CUSHION (10X22X13)

09320-10050

$3.35

CUSHION

09320-06504

$4.96

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

SCREW (6X24)

09139-06203

Unavailable

CUSHION (8X18X16)

09320-08089

Unavailable

BOLT (6X100)

09103-06060

$2.50

SPACER, FUEL TANK REAR

44561-18G00

$16.96

NUT (M6)

09159-06076

$2.81

HOSE, DRAIN NO.1

44423-04K00

Unavailable

HOSE, FUEL TANK BRTHR NO.1 This part replaces 44424-04K00.

44424-04K01

$10.38

HOSE,5X10X600 | L:600->530 This part replaces 09352-50823-600.

44421-13ER0

$10.06

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$13.72

3 WAY

09367-06007

$3.46

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

CLAMP

09403-20307

Unavailable

PROTECTOR, FUEL TANK

44283-06J00

$6.10

BRACKET, FUEL TANK FRONT RH

44561-04K00

$9.47

BRACKET, FUEL TANK FRONT LH

44571-04K00

$9.47

MOLDING, FUEL TANK, REAR

44552-24B00

$14.08

STAY, FUEL TANK | OPT

44560-23H00

$44.95

COLOR :

SPECIAL NOTE

Unavailable

AV4=YVB(BLACK),YYG(RED)

SPECIAL NOTE

Unavailable
