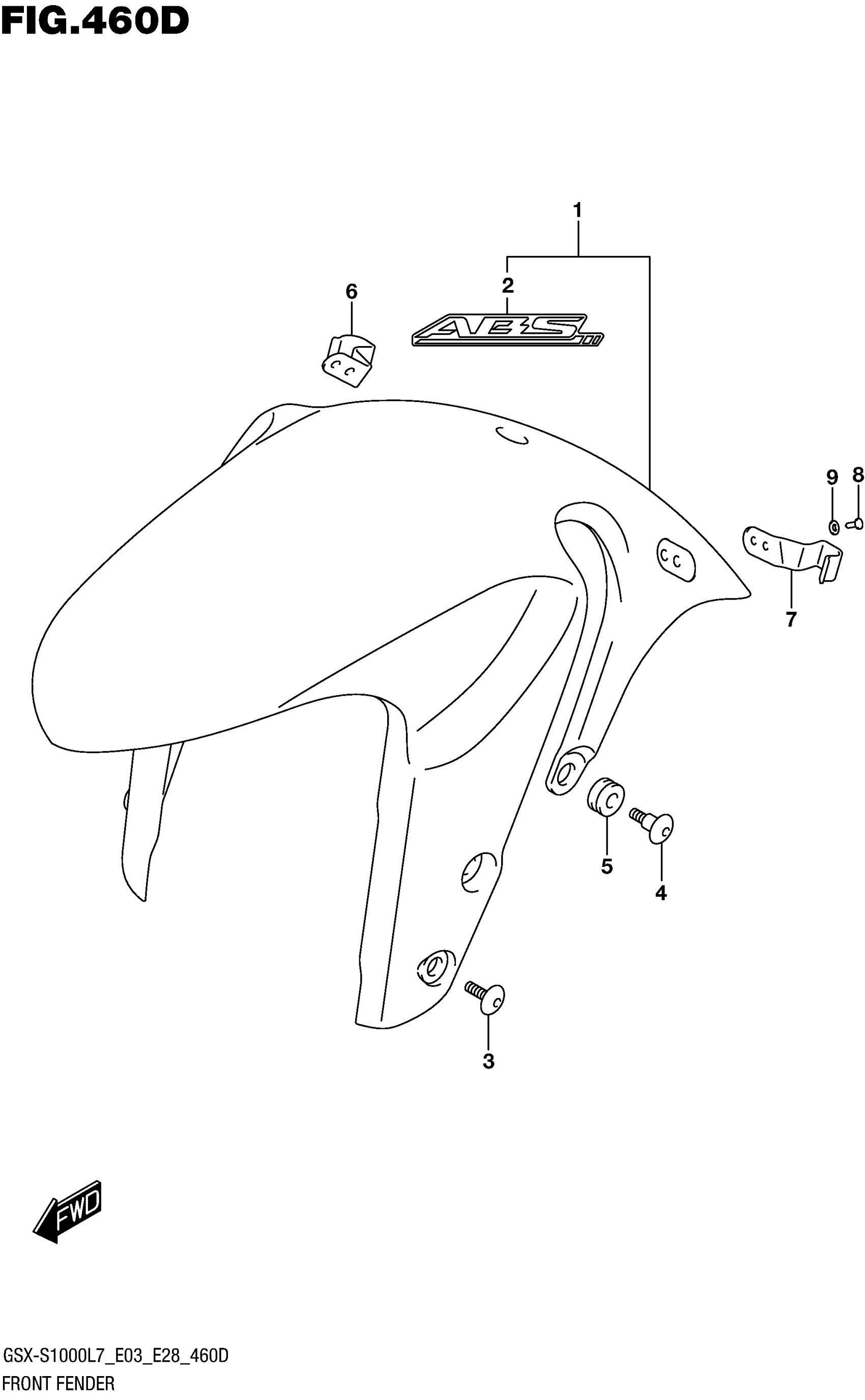

Suzuki GSX-S1000AL7 (2017) FRONT FENDER (GSX-S1000AL7 E33) Diagram

Description

Price

1-1

FENDER ASSY,FRO | FOR YSF This part replaces 53100-04K00-YSF.

53100-04K01-YSF

$189.78

1-2

FENDER ASSY,FRT | FOR AV4 This part replaces 53100-04K00-YVB.

53100-04K01-YVB

$195.88

1-3

FENDER ASSY,FRO | FOR PGZ This part replaces 53100-04K10-PGZ.

53100-04K11-PGZ

$208.75

2-1

EMBLEM,ABS(GRAY | FOR YSF,YVB This part replaces 68151-38G00-1ZY.

68151-38G01-1ZY

$12.68

2-2

EMBLEM,ABS | FOR PGZ This part replaces 68151-38G10-A79.

68151-38G11-A79

$12.77

SCREW (6X16) | FRONT

09139-06169

$3.10

BOLT (6X20) | REAR

09139-06190

$4.17

CUSHION | REAR

09320-09016

$1.97

CLAMP, BRAKE HOSE RH

53117-04K00

$5.02

CLAMP, BRAKE HOSE LH

53118-04K00

$5.02

RIVET

09229-04038

$1.49

WASHER

08322-0104B

$1.49

COLOR :

SPECIAL NOTE

Unavailable

AV4=YVB(BLACK),YYG(RED)

SPECIAL NOTE

Unavailable
