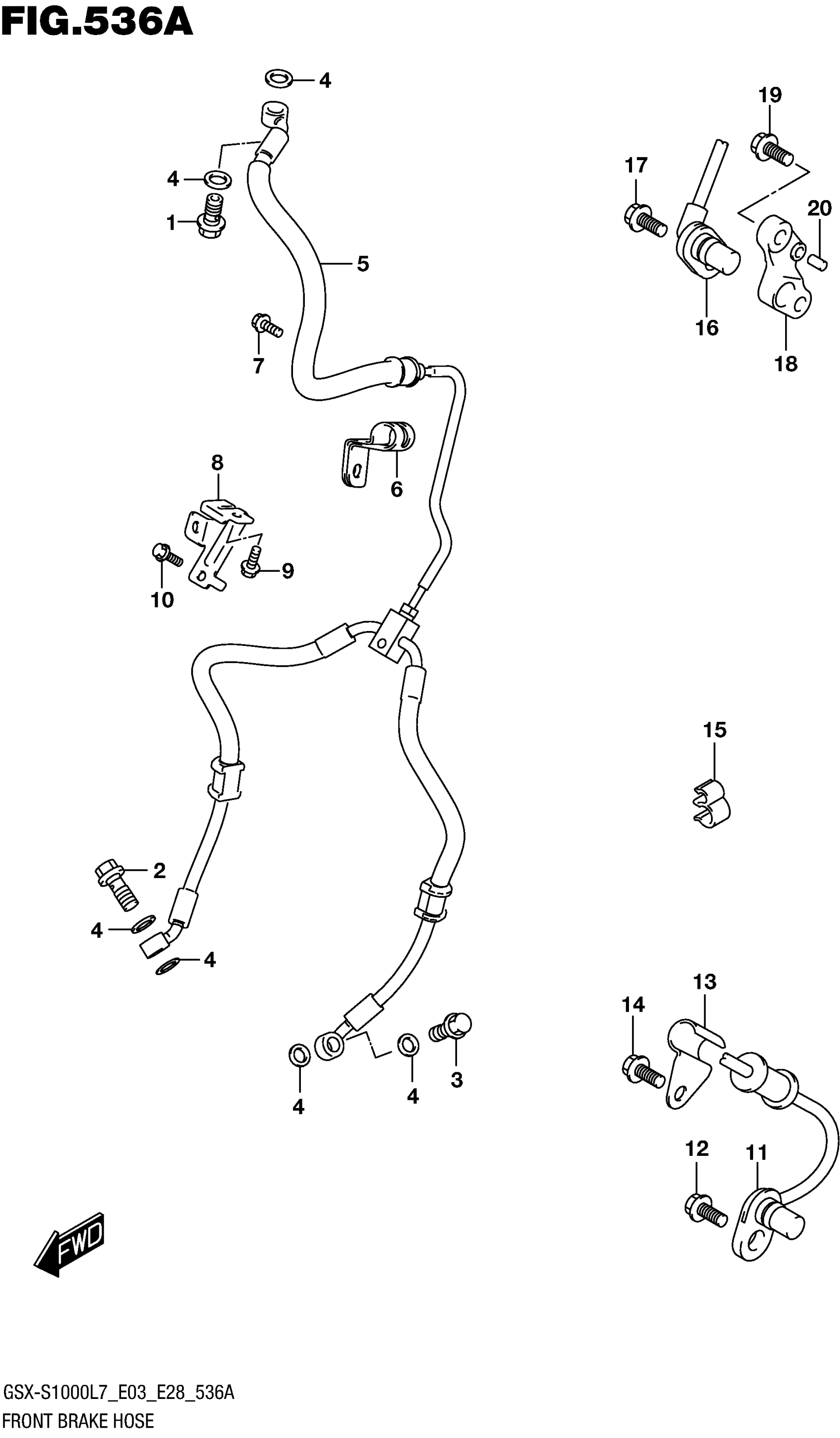

Suzuki GSX-S1000AL7 (2017) FRONT BRAKE HOSE (GSX-S1000L7 E33) Diagram

Description

Price

UNION | UPPER

09360-10062

$6.43

UNION | LOWER RH

09360-10062

$6.43

UNION | LOWER LH

09360-10062

$6.43

WASHER (10X15X1.5)

09161-10009

$1.84

HOSE, FRONT BRAKE

59480-04K00

$204.93

CLAMP, FRONT BRAKE HOSE UPPER

59261-04K00

$9.00

BOLT

01547-0612B

$1.49

CLAMP,FR BRAKE HOSE LOWER

59271-04K00

$12.45

BOLT

01550-0612A

$1.97

BOLT

01547-0616A

$2.03

SENSOR, FRONT WHEEL ABS

55710-04K00

$233.37

BOLT

01547-0612A

$2.03

CLAMP, SENSOR LEAD FRONT

55731-23H00

Unavailable

BOLT

01547-0612A

$2.03

CLAMP

09408-00266

$2.51

SENSOR, REAR WHEEL ABS

65710-04K00

$70.78

BOLT

01547-0612A

$2.03

BRACKET, SPEED SENSOR RR

65721-04K00

$19.45

BOLT (6X16)

09103-06240

$3.08

PIN (4X13.8)

04221-04089

$1.49
