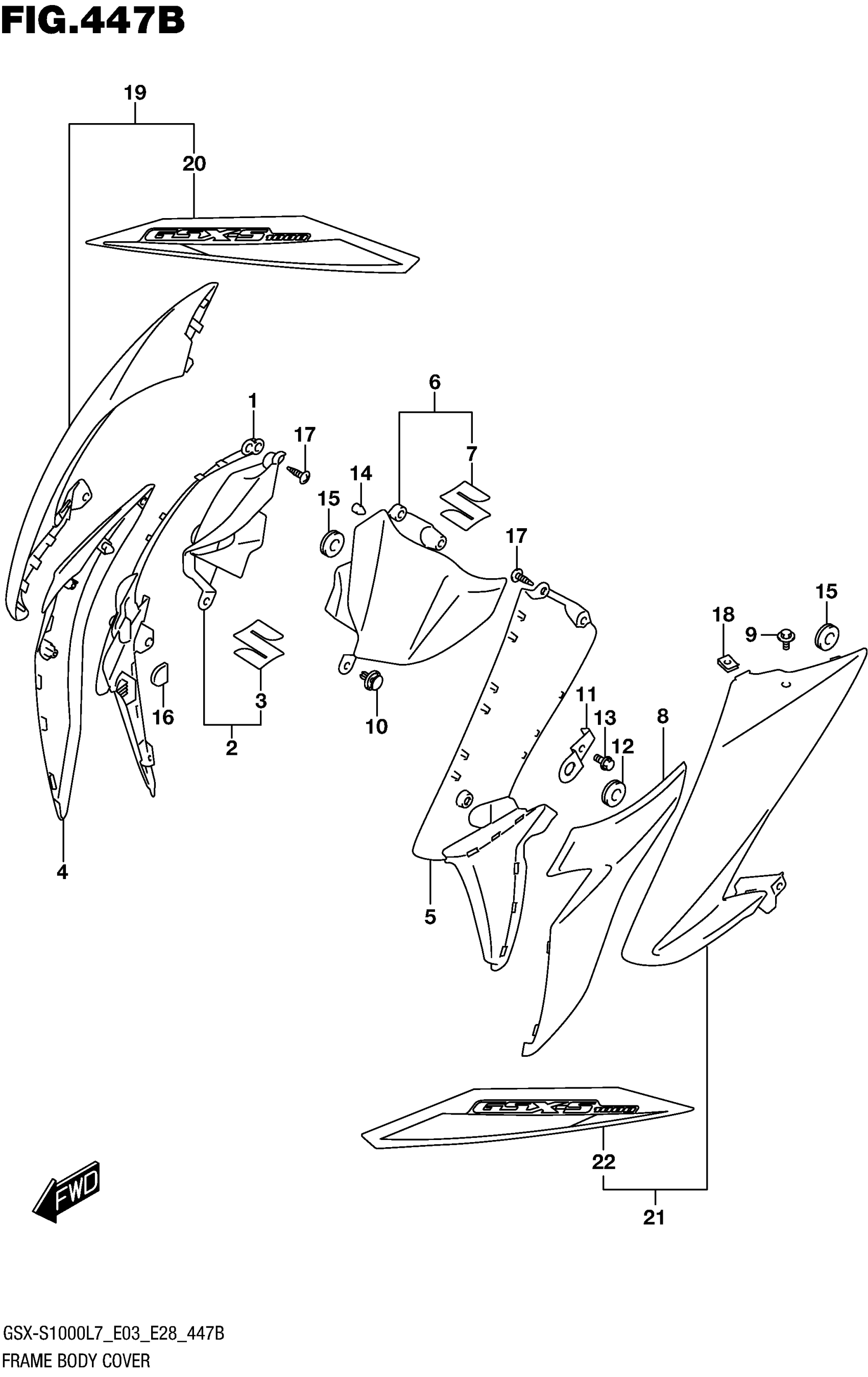

Suzuki GSX-S1000AL7 (2017) FRAME BODY COVER (YSF) Diagram

#

Description
Price

1

COVER,FRAME BODY INNER RH

47531-04K00

$28.17

2

COVER ASSY,INTAKE RH

47570-04K00

$56.37

3

.EMBLEM,S

68111-47HA0

$37.02

4

COVER, FRAME BODY LOWER RH

47533-04K00-YSF

$69.83

4

(BLUE)

47533-04K00-YSF

$69.83

5

COVER,FRAME BODY INNER LH

47541-04K00

$31.75

6

COVER ASSY,INTAKE LH

47580-04K00

$57.45

7

.EMBLEM,S

68111-47HA0

$37.02

8

COVER, FRAME BODY LOWER LH

47543-04K00-YSF

$64.33

8

(BLUE)

47543-04K00-YSF

$64.33

9

SCREW (5X13)

09139-05064

$2.56

10

CLIP

94479-35F00

$5.14

11

BRACKET, FRAME BODY COVER

47539-04K00

$12.33

12

CUSHION

09320-08018

$2.80

13

BOLT

01547-0612B

$1.22

14

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

15

CUSHION

09320-06504

$4.47

16

CUSHION

09329-18001

$1.89

17

SCREW

03541-0516A

$1.37

18

NUT

09148-05052

$3.04

19

COVER, FRAME BODY RH (BLUE)

47510-04K10-YSF

$173.33

20

.TAPE, FRAME BODY COVER RH

68135-04K00-A78

$41.98

21

COVER, FRAME BODY LH (BLUE)

47520-04K10-YSF

$176.62

22

.TAPE, FRAME BODY COVER LH

68145-04K00-A78

$41.98
