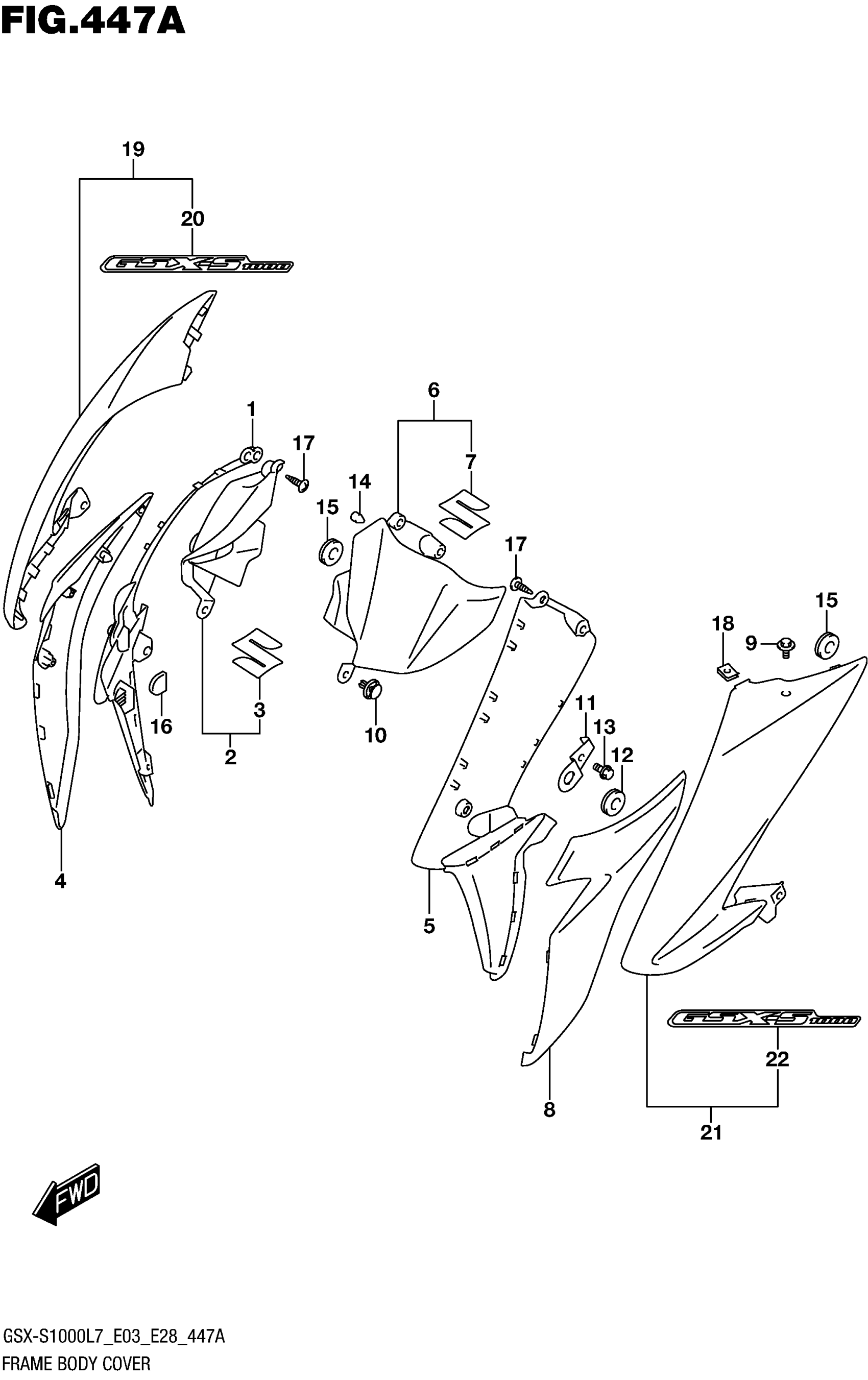

Suzuki GSX-S1000AL7 (2017) FRAME BODY COVER (PGZ,AV4) Diagram

#

Description
Price

1

COVER,FRAME BODY INNER RH

47531-04K00

$28.17

2

COVER ASSY,INTAKE RH

47570-04K00

$56.37

3

.EMBLEM,S

68111-47HA0

$37.02

4-1

COVER, FRAME BODY LOWER RH | FOR PGZ

47533-04K00-PGZ

$72.50

4-1

(GRAY)

47533-04K00-PGZ

$72.50

4-2

COVER, FRAME BODY LOWER RH | FOR AV4

47533-04K00-YYG

$69.83

4-2

(RED)

47533-04K00-YYG

$69.83

5

COVER,FRAME BODY INNER LH

47541-04K00

$31.75

6

COVER ASSY,INTAKE LH

47580-04K00

$57.45

7

.EMBLEM,S

68111-47HA0

$37.02

8-1

COVER, FRAME BODY LOWER LH | FOR PGZ

47543-04K00-PGZ

$65.52

8-1

(GRAY)

47543-04K00-PGZ

$65.52

8-2

COVER, FRAME BODY LOWER LH | FOR AV4

47543-04K00-YYG

$58.27

8-2

(RED)

47543-04K00-YYG

$58.27

9

SCREW (5X13)

09139-05064

$2.56

10

CLIP

94479-35F00

$5.14

11

BRACKET, FRAME BODY COVER

47539-04K00

$12.33

12

CUSHION

09320-08018

$2.80

13

BOLT

01547-0612B

$1.22

14

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

15

CUSHION

09320-06504

$4.47

16

CUSHION

09329-18001

$1.89

17

SCREW

03541-0516A

$1.37

18

NUT

09148-05052

$3.04

19-1

COVER, FRAME BODY RH (GRAY) | FOR PGZ

47510-04K00-PGZ

$176.62

19-2

COVER, FRAME BODY RH (BLACK) | FOR AV4

47510-04K00-YVB

$176.63

20-1

.EMBLEM, FRAME BODY COVER | FOR PGZ

68131-04K00-A76

$25.24

20-2

.EMBLEM, FRAME BODY COVER | FOR AV4

68131-04K00-A77

$35.58

21-1

COVER, FRAME BODY LH (GRAY) | FOR PGZ

47520-04K00-PGZ

$176.62

21-2

COVER, FRAME BODY LH (BLACK) | FOR AV4

47520-04K00-YVB

$178.35

22-1

.EMBLEM, FRAME BODY COVER | FOR PGZ

68131-04K00-A76

$25.24

22-2

.EMBLEM, FRAME BODY COVER | FOR AV4

68131-04K00-A77

$35.58

23

COLOR :

SPECIAL NOTE

Unavailable

23

AV4=YVB(BLACK),YYG(RED)

SPECIAL NOTE

Unavailable
