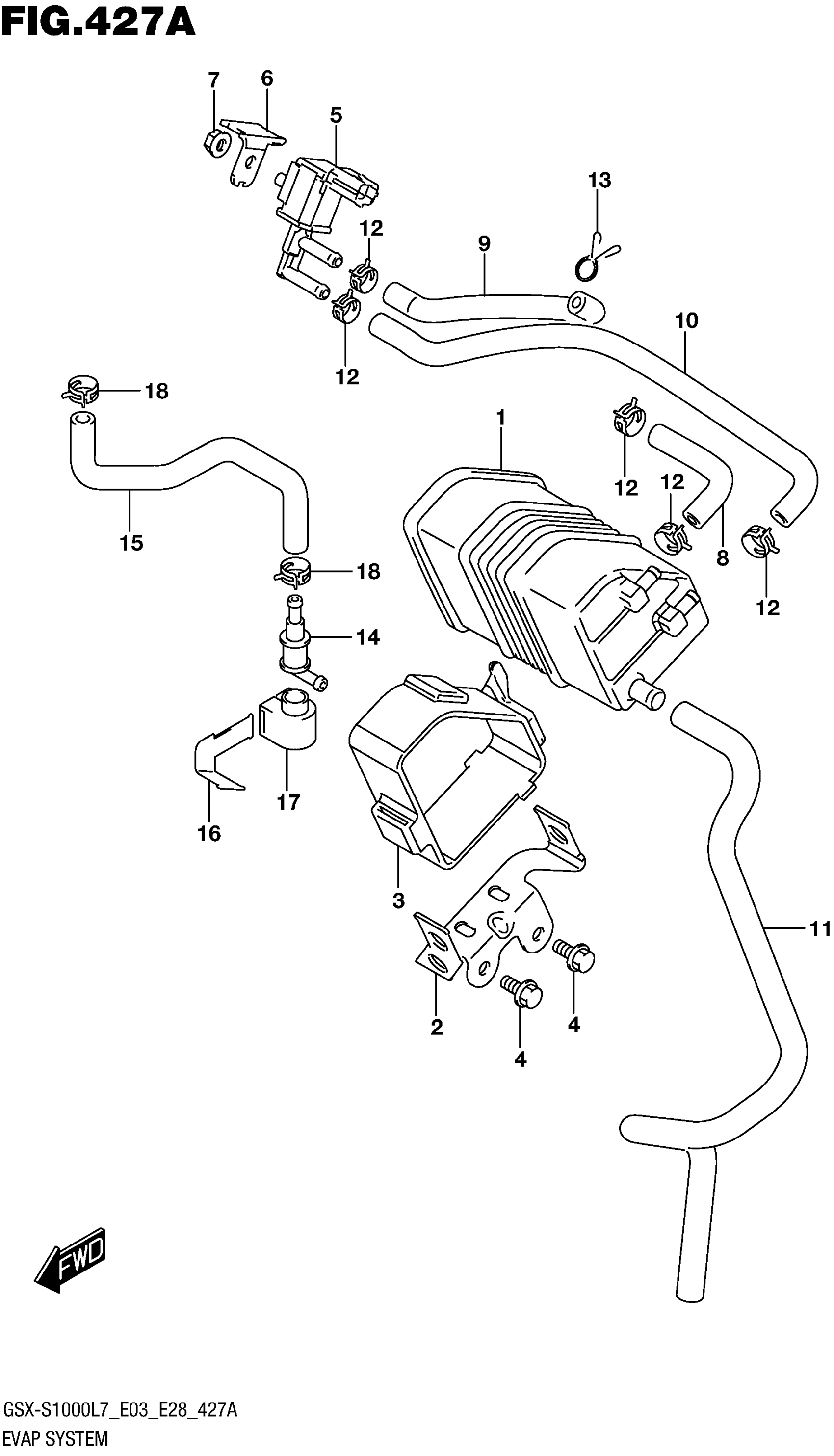

Suzuki GSX-S1000AL7 (2017) EVAP SYSTEM (GSX-S1000L7 E33) Diagram

#

Description
Price

1

CANISTER ASSY,CHARCOAL This part replaces 18560-04K00.

18560-04K01

$107.13

2

BRACKET, CANISTER

18571-04K00

Unavailable

3

CUSHION, CANISTER

18572-04K00

Unavailable

4

BOLT

01550-0612A

$1.97

5

VALVE,CANISTER PURGE

18117-52G10

$151.17

6

BRACKET, PURGE VALVE

18573-04K00

Unavailable

7

NUT

08316-1006A

$2.19

8

HOSE, SURGE

18561-04K00

Unavailable

9

HOSE, PURGE NO.2

18563-04K00

Unavailable

10

HOSE, PURGE NO.1

18562-04K00

Unavailable

11

HOSE, CANISTER DRAIN

18564-04K00

Unavailable

12

CLIP (ID:10.5,H:8)

09401-10409

$2.26

13

CLIP

09401-10403

$1.65

14

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

15

HOSE, TANK & BRTHR VALVE

44434-04K00

$31.88

16

PLATE, FUEL TANK BRTHR VALVE

44891-04K00

Unavailable

17

CUSHION, FUEL TANK BRTHR VALV

44894-04K00

Unavailable

18

CLIP

09401-11413

$2.26
