2017 Suzuki GSX-S1000AL7 Crankcase Diagram

← All diagrams

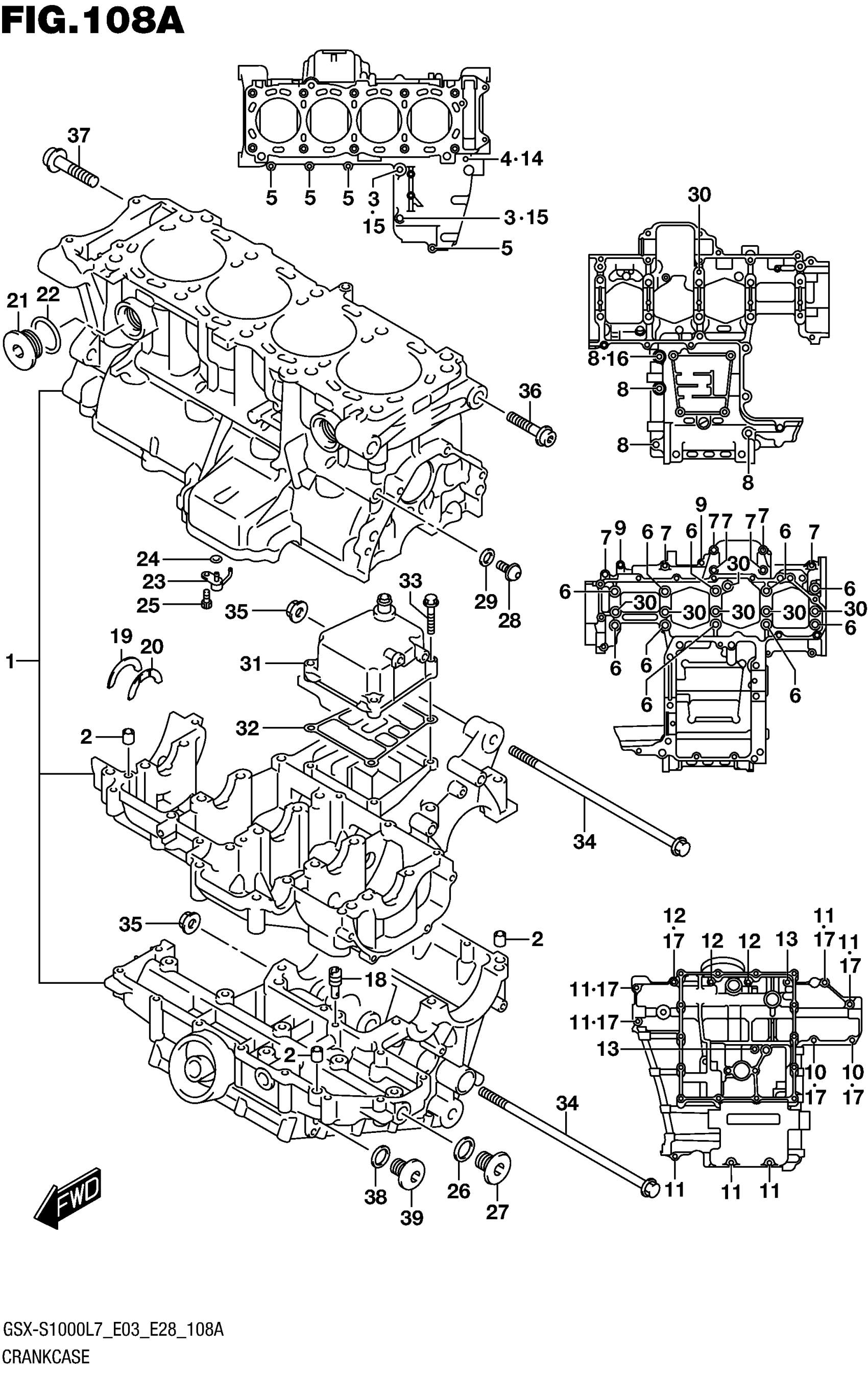

Find the part on the Crankcase diagram for your 2017 Suzuki GSX-S1000AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX-S1000AL7 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11301-04840

1
Out of stock

2

PIN,CRANKCASE

11319-33E50

6
Out of stock

3

.BOLT (8X120)

09106-08139

2
Out of stock

4

.BOLT

01547-0680A

1
Out of stock

5

.BOLT

01547-0640A

4
Out of stock

6

.BOLT (9X95)

09103-09012

10
Out of stock

7

.BOLT (8X55)

09103-08339

7
Out of stock

8

.BOLT

07120-0865A

4

$5.17

In stock

9

.BOLT

01547-0640A

2
Out of stock

10

BOLT

01547-0630A

2
Out of stock

11

.BOLT

01547-0640A

7
Out of stock

12

.BOLT

01547-0660A

3
Out of stock

13

.BOLT

01547-0670A

2
Out of stock

14

.GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

15

GASKET (8.2X14X1)

09168-08016

2
Out of stock

16

GASKET (8.2X14X1)

09168-08016

1
Out of stock

17

.GASKET (5.8X13X1.2)

09168-06023

7
Out of stock

18

.JET, 140

09493-28012

1
Out of stock

19

.BEARING, THRUST RH (GREEN)

12228-48B00-0E0

1
Out of stock

20-1

.BEARING, THRUST LH (BROWN)

12228-48B00-0B0

1
Out of stock

20-2

.BEARING, THRUST LH (RED)

12228-48B00-0C0

1
Out of stock

20-3

.BEARING, THRUST LH (YELLOW)

12228-48B00-0D0

1
Out of stock

20-4

.BEARING, THRUST LH (GREEN)

12228-48B00-0E0

1
Out of stock

20-5

.BEARING, THRUST LH (BLUE)

12228-48B00-0F0

1
Out of stock

20-6

.BEARING, THRUST LH (ORANGE)

12228-48B00-0G0

1
Out of stock

20-7

.BEARING, THRUST LH (BLACK)

12228-48B00-0H0

1
Out of stock

21

.PLUG, WATER JACKET

11318-35F00

3
Out of stock

22

.O-RING (D:3.1,ID:19.4)

09280-20002

3
Out of stock

23

JET, PISTON COOLING

11390-21H01

4
Out of stock

24

O RING (D:1.2,ID:4)

09280-04004

4
Out of stock

25

BOLT (6X12)

09106-06075

4
Out of stock

26

GASKET (16X22X2)

09168-16002

4
Out of stock

27

PLUG

09248-16013

4
Out of stock

28

PLUG (10X10)

09248-10010

1
Out of stock

29

GASKET (10X14X3.6)

09168-10002

1
Out of stock

30

O RING (D:1.9,ID:7.8)

09280-08012

7
Out of stock

31

COVER, BREATHER

11370-04K00

1
Out of stock

32

GASKET, BREATHER COVER

11484-35F00

1
Out of stock

33

BOLT

01547-0630A

4
Out of stock

34

BOLT (10X225)

09103-10205

2
Out of stock

35

NUT

09159-10115

2
Out of stock

36

BOLT (10X45)

09106-10069

2
Out of stock

37

BOLT (10X55)

09106-10070

2
Out of stock

38

GASKET (13.8X18.8X4.8)

09168-14002

2
Out of stock

39

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

2
Out of stock
