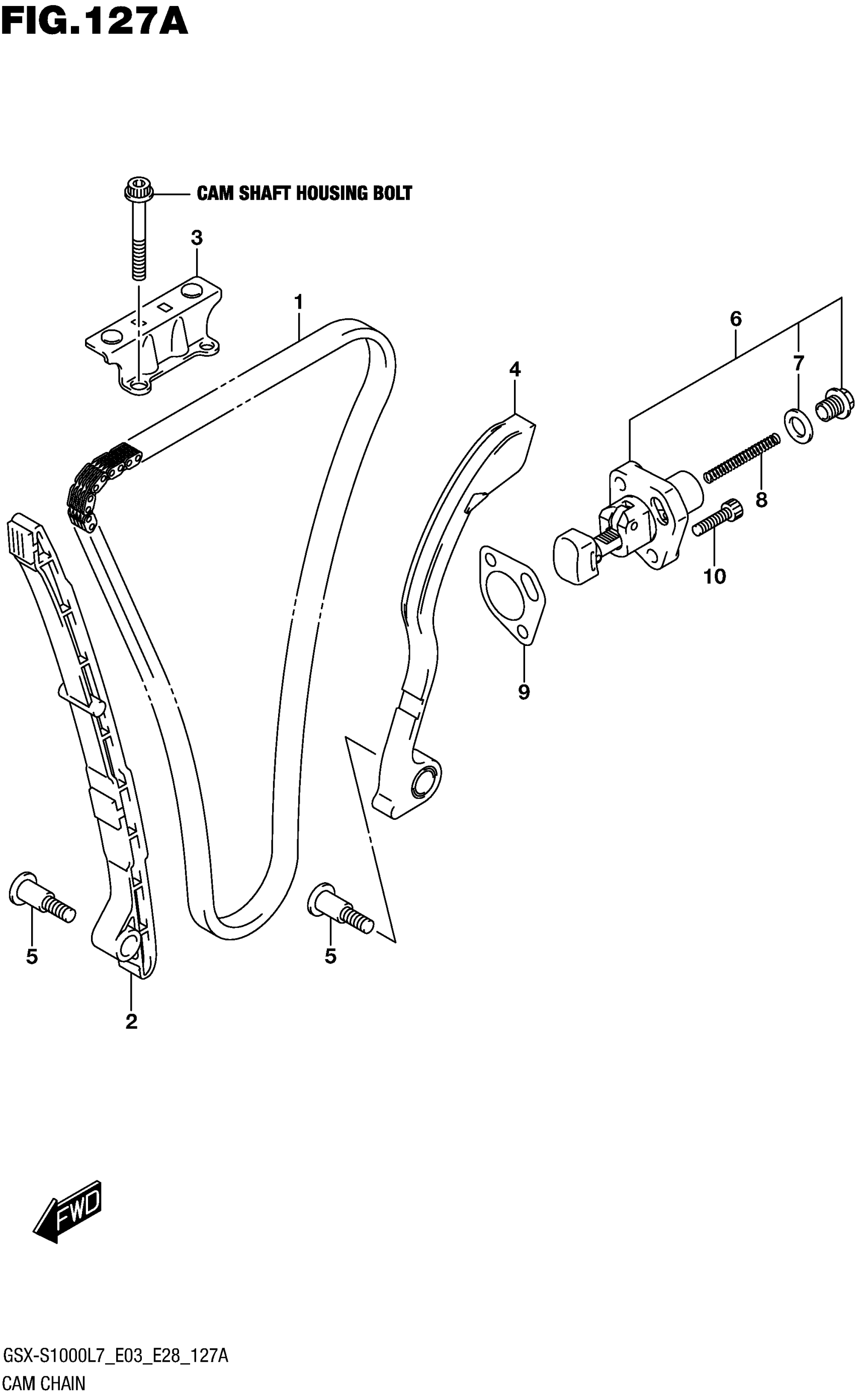

Suzuki GSX-S1000AL7 (2017) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAMSHAFT DRIVE

12760-04K00

$150.22

2

GUIDE, CAM CHAIN NO.1 This part replaces 12771-21H00.

12771-21H01

$34.53

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35F10.

12782-35F11

$22.44

4

TENSIONER,CAM CHAIN This part replaces 12811-21H00.

12811-21H01

$71.20

5

BOLT, CAM CHAIN TENSIONER

12812-31G00

$4.39

6

ADJUSTER ASSY,TENSIONER

12830-41G11

$141.12

7

.GASKET

12837-24F10

$4.57

8

SPRING

12831-41G00

$5.53

9

GASKET, ADJUSTER

12837-18G00

$4.57

10

BOLT (6X25)

07130-0625A

$2.74
