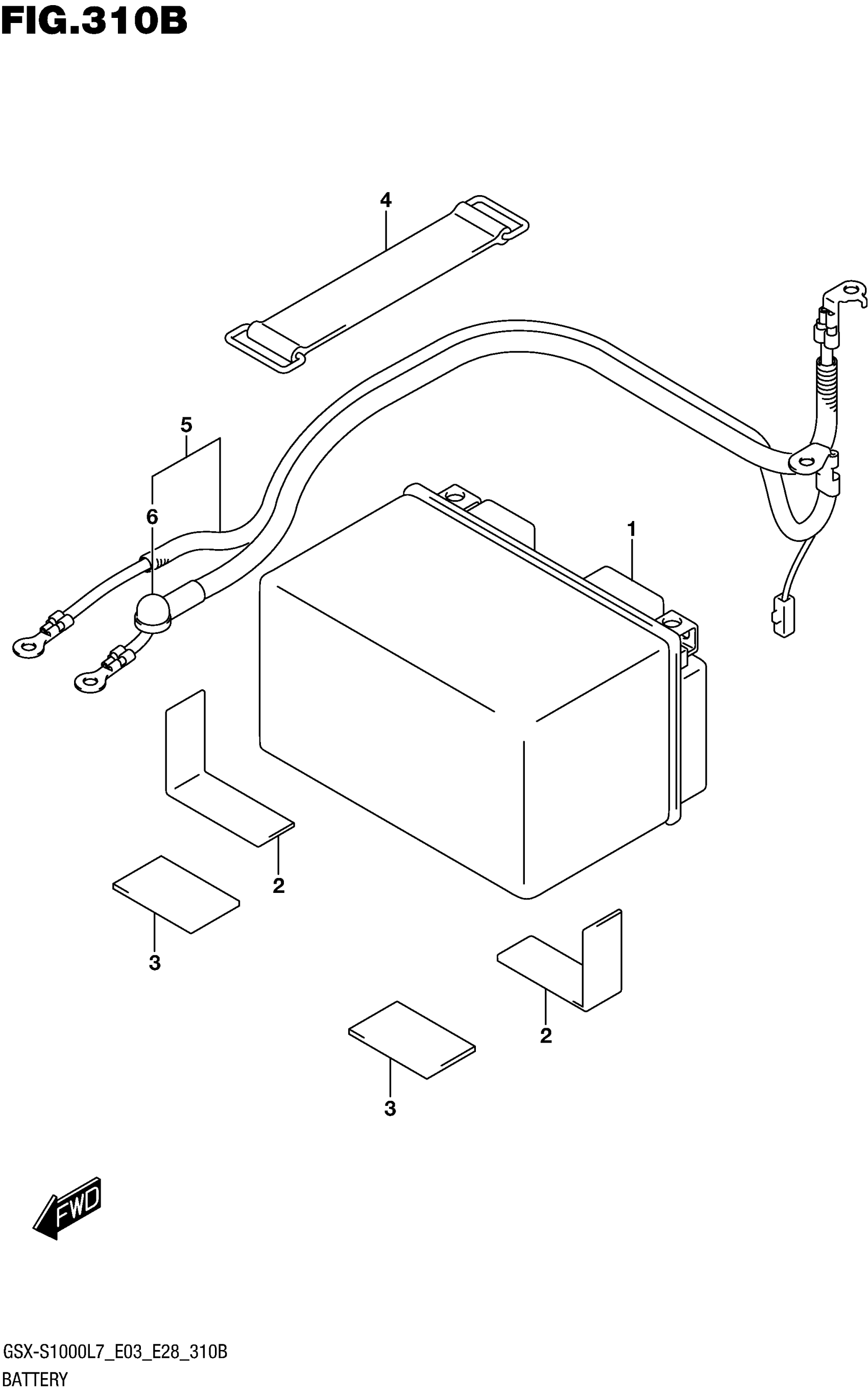

Suzuki GSX-S1000AL7 (2017) BATTERY (GSX-S1000AL7 E03) Diagram

#

Description

Price

1

BATTERY ASSY

33610-14G11

$120.22

1

(FT12A-BS, 12V,10AH)

33610-14G11

$120.22

2

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

3

CUSHION (50X42X2.0)

51553-15D40

$7.18

4

BAND

09462-00046

$3.70

5

WIRE,STARTER MOTOR LEAD This part replaces 33810-04K00.

33810-04K01

$35.47

6

.CAP, STARTER MOTOR TERMINAL

31861-04K00

Unavailable
