09- Front Storage Compartment

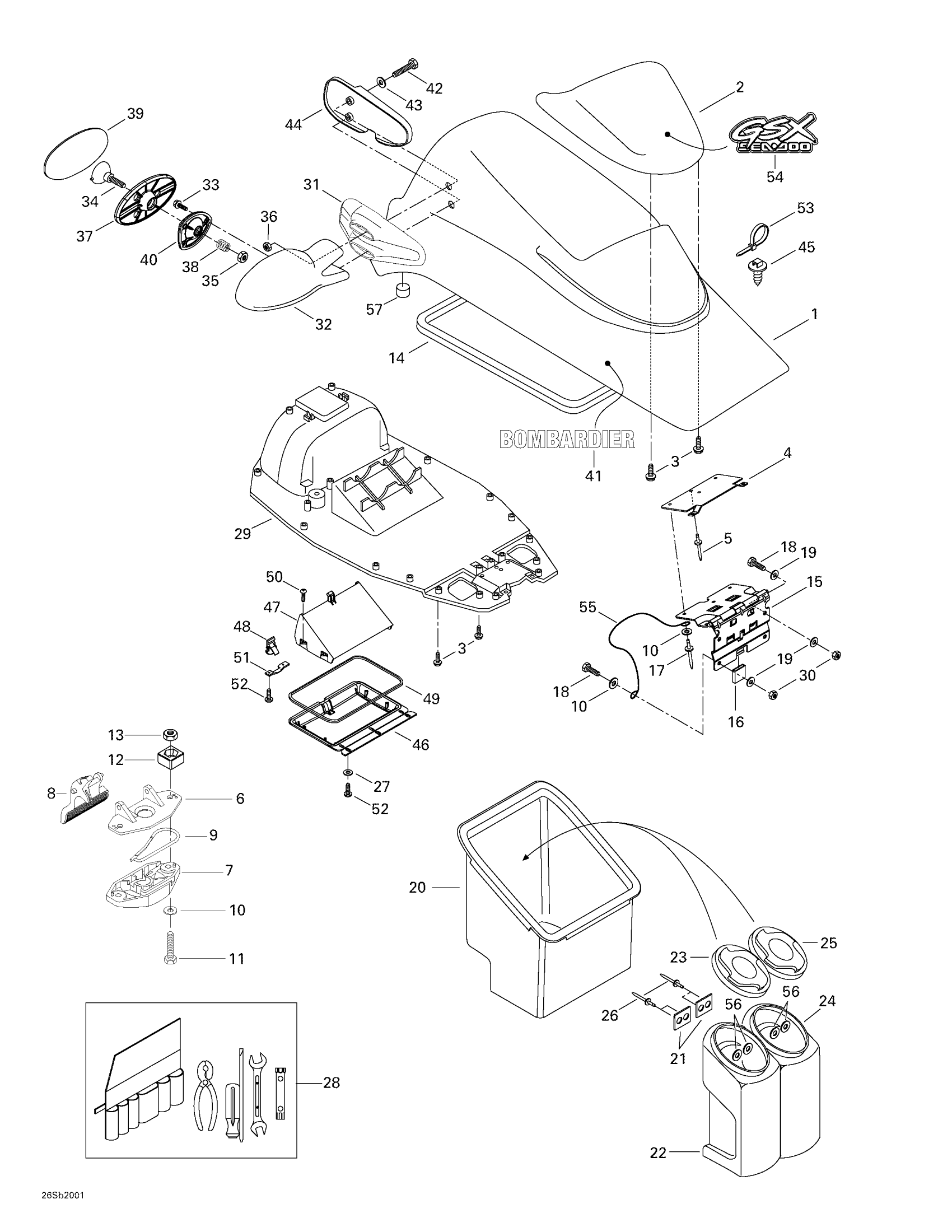

Sea-doo GSX RFI, 5645/5654, 2000 09- Front Storage Compartment Diagram
#
1
Upper Storage Cover
269500629
Unavailable
2
Deflector
269500630
Unavailable
3
Hex. Flange Screw K40 X 13
241141360
$0.67
4
Retainer Plate
269500280
Unavailable
5
Pop Rivet 3/16"
293150039
$1.49
6
Latch Ass'y
269700109
$24.99
7
Latch Ass'y
269700109
$24.99
8
Latch Ass'y
269700109
$24.99
9
Latch Spring
269700017
$9.19
10
Stainless Flat Washer M6
234061600
$0.33
11
Hex. Screw M6 X 30
207063060
$1.89
12
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
13
Hex. Elastic Stop Nut M6
232561600
$1.15
14
Was 293200017 Neoprene Seal
219704365
$149.99
15
Hinge Ass'y
269500613
Unavailable
16
Protector Cap
293830046
Unavailable
17
Pop Rivet 3/16"
293150039
$1.49
18
SOCKET SCREW M6 X 20 - Call your local BRP dealership
205462060
Unavailable
19
Flat Washer M6, Stainless
234062600
$0.77
20
Storage Tray
269500286
Unavailable
21
GASKET - Call your local BRP dealership
293250037
Unavailable
22
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
23
EXTINGUISHER HOUSING CAP - Call your local BRP dealership
269501939
Unavailable
24
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
25
Storage Cap
269500604
Unavailable
26
Pop Rivet 1/8''
293150033
Unavailable
27
Flat Washer 4 mm, Stainless
234042600
$1.15
28
Tool Kit
295000066
Unavailable
29
Lower Storage Cover
269500655
Unavailable
30
Hex. Elastic Stop Nut M6
232561600
$1.15
31
Support (Mirror) RH
269500400
Unavailable
Support (Mirror) LH
269500401
Unavailable
32
Mirror RH Ass'y | Includes 32 - 40.
269500418
Unavailable
Mirror LH Ass'y
269500419
Unavailable
33
Hex. Flange Screw K40 X 16
241141660
$1.48
34
MIRROR BALL JOINT - Call your local BRP dealership
269500079
Unavailable
35
Hex. Elastic Stop Nut M6
232561600
$1.15
36
Hex. Nut M8
232081600
$1.47
37
Not Available As Spare Part - Friction Washer
Unavailable
38
Mirror Spring
269500453
$10.49
39
MIRROR - Call your local BRP dealership
269500454
Unavailable
40
Not Available As Spare Part - Friction Washer
Unavailable
41
Bombardier Decal
219901564
Unavailable
42
Hex. Screw M8 x 140
230084060
Unavailable
43
Stainless, Flat Washer 8 mm
234081600
$0.55
44
Spacer RH
269500383
Unavailable
Spacer LH
269500384
Unavailable
45
Mount Dart
293730040
$1.04
46
GLOVE BOX INFERIOR - Call your local BRP dealership
269500656
Unavailable
47
Glove Box Upper
269500519
Unavailable
48
Latch
269500657
Unavailable
49
Gasket
293250083
Unavailable
50
Oval Philipp Screw KA30 x 12
241731260
$1.05
51
Retainer Plate
269500658
Unavailable
52
Hex. Flange Screw K40 X 13
241141360
$0.67
53
Tie Wrap 142 mm
293750002
$1.25
54
<> Identification Decal
219901563
Unavailable
55
RETAINER CABLE - Call your local BRP dealership
269500524
Unavailable
56
Flat Washer M3, Stainless
234032600
$0.55
57
Rubber Bumper
293830005
$8.09
