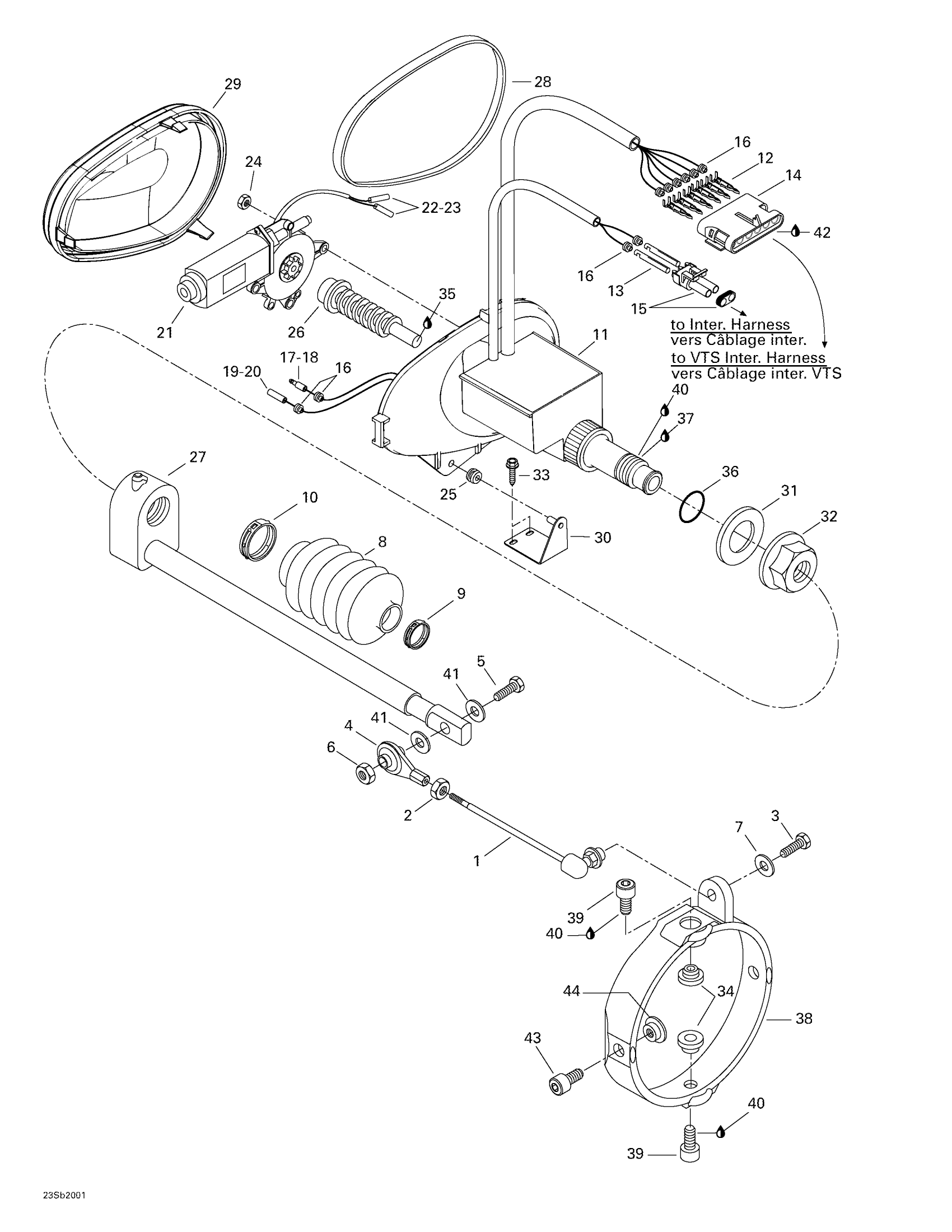

Sea-doo GSX RFI, 5645/5654, 2000 Trim Diagram

#

Description
Price

1

Moulding Rod

271000580

Unavailable

2

Hex. Nut

212100005

$1.35

3

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

4

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

5

Hex. Screw M6 X 35

207063560

$2.22

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

Flat Washer 5 mm, Stainless

234052600

$0.77

8

Protector Hose

271000459

$17.49

9

Clamp

293650082

$3.99

10

CLAMP - Call your local BRP dealership

293650083

Unavailable

11

V.T.S Housing Ass'y | Includes 11 - 29.

278001293

Unavailable

11

V.T.S Housing

278001605

$419.99

12

Male Terminal | XT Models

278000222

$3.19

13

Female Terminal

278000223

$3.19

14

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

15

Male Connector, 2 Circuits

278000220

$15.49

16

Wire Seal

278000218

$4.39

17

Male Terminal

278000230

$4.39

18

Insulated Sheath

278001008

$3.28

19

Female Terminal | DS 650 X

278001009

$3.19

20

Insulated Sheath

278001007

$3.58

21

Windshield Motor

278002579

$234.99

22

Insulation Sheath

278000231

$5.08

23

Male Terminal

278000230

$4.39

24

Hex. Elastic Stop Nut M6

232561600

$1.15

25

GROMMET - Call your local BRP dealership

293720015

Unavailable

26

Worm Screw

278000428

$14.30

27

Sliding Block Ass’y

278001698

$43.99

28

GASKET - Call your local BRP dealership

293200027

Unavailable

29

V.T.S. COVER - Call your local BRP dealership

278000595

Unavailable

30

V.T.S. SUPPORT ASSY - Call your local BRP dealership

292000250

Unavailable

31

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

32

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

33

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

34

Venturi Bushing

293900007

$5.45

35

Synthetic Grease, 400 G

293550010

Unavailable

36

O-Ring

293300044

$1.05

37

Was 293800041 Loctite Primer 7649

219704458

$39.99

38

Trimming Ring

271000578

Unavailable

39

Socket Head Screw M8 x 10

211000089

Unavailable

40

Loctite 243, 10 ml

293800060

$21.49

41

Stainless Flat Washer M6

234061600

$0.33

42

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

43

Screw

211000007

Unavailable

44

Venturi Bushing

271000321

$8.69
