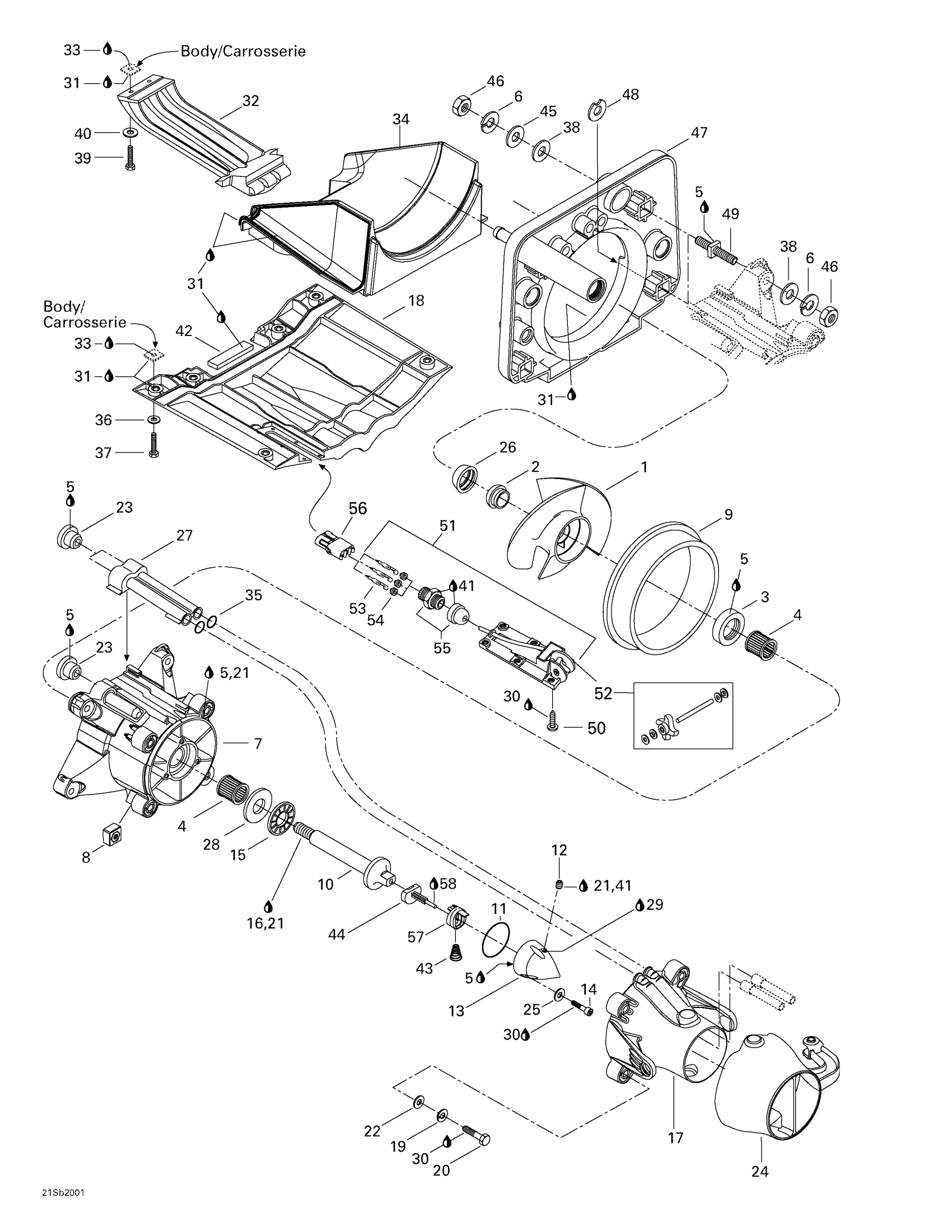

Sea-doo GSX RFI, 5645/5654, 2000 Propulsion System Diagram

#

Description
Price

1

IMPELLER ASSY - Call your local BRP dealership

271001024

Unavailable

Stainless Steel Impeller Ass'ym (H.A.)

271000931

Unavailable

2

Impeller Boot

271000516

$9.59

3

Oil Seal

267000094

$22.49

4

Needle Bearing

293350017

$27.99

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

6

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

7

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 8 - 10.

204160055

Unavailable

8

Square Nut M8

211100033

$17.99

9

Wear Ring

271000290

$58.49

10

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

11

O-Ring

293300011

$8.64

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

IMPELLER COVER - Call your local BRP dealership

271000895

Unavailable

14

Socket Head Screw M5 X 20

205052060

Unavailable

15

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

16

Loctite 262, 50 ml

413705200

Unavailable

17

VENTURI ASS'Y - Call your local BRP dealership

271000867

Unavailable

18

RIDING PLATE, BLACK - Call your local BRP dealership

271000955

Unavailable

19

Lock Washer 8 mm, Stainless

234181601

$0.55

20

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.90

21

Was 293800041 Loctite Primer 7649

219704458

$39.99

22

Flat Washer 8 mm, Stainless

234082600

$2.43

23

Watertight Seal

293250084

$7.49

24

Steering Nozzle

271000870

Unavailable

25

Flat Washer M5, Stainless

234051600

$0.77

26

Impeller Ring

271000517

$9.59

27

Water Outlet

271000972

Unavailable

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

30

Loctite 243, 10 ml

293800060

$21.49

31

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

32

INLET GRATE - Call your local BRP dealership

271000732

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$36.99

34

Shoe (Black)

271000592

Unavailable

35

O-Ring

293300013

$8.18

36

Stainless, Flat Washer 8 mm

234081600

$0.55

37

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

38

Flat Washer 10 mm, Stainless

234001600

$1.15

39

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

40

Stainless Flat Washer M6

234061600

$0.33

41

Was 293800013 Loctite 56765

219704454

$65.99

42

Neoprene Seal (1PAC=3M)

219704364

$27.49

43

SPRING - Call your local BRP dealership

271001108

Unavailable

44

PUSHER ASS?Y - Call your local BRP dealership

271001124

Unavailable

45

Flat Washer 10 mm, Stainless

234002600

$2.22

46

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

47

Support pump

271000928

Unavailable

48

Shim 0.3 mm

272000053

$11.49

49

Square Stud

250300022

$20.99

50

Phillips Screw M5 x 12

250000319

$1.39

51

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

52

Paddle Wheel Kit

295500108

Unavailable

53

Male Terminal | XT Models

278000222

$3.19

54

Wire Seal

278000218

$4.39

55

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

56

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

57

SLIDER - Call your local BRP dealership

271001107

Unavailable

58

Synthetic Grease, 300 ml

293550025

Unavailable
