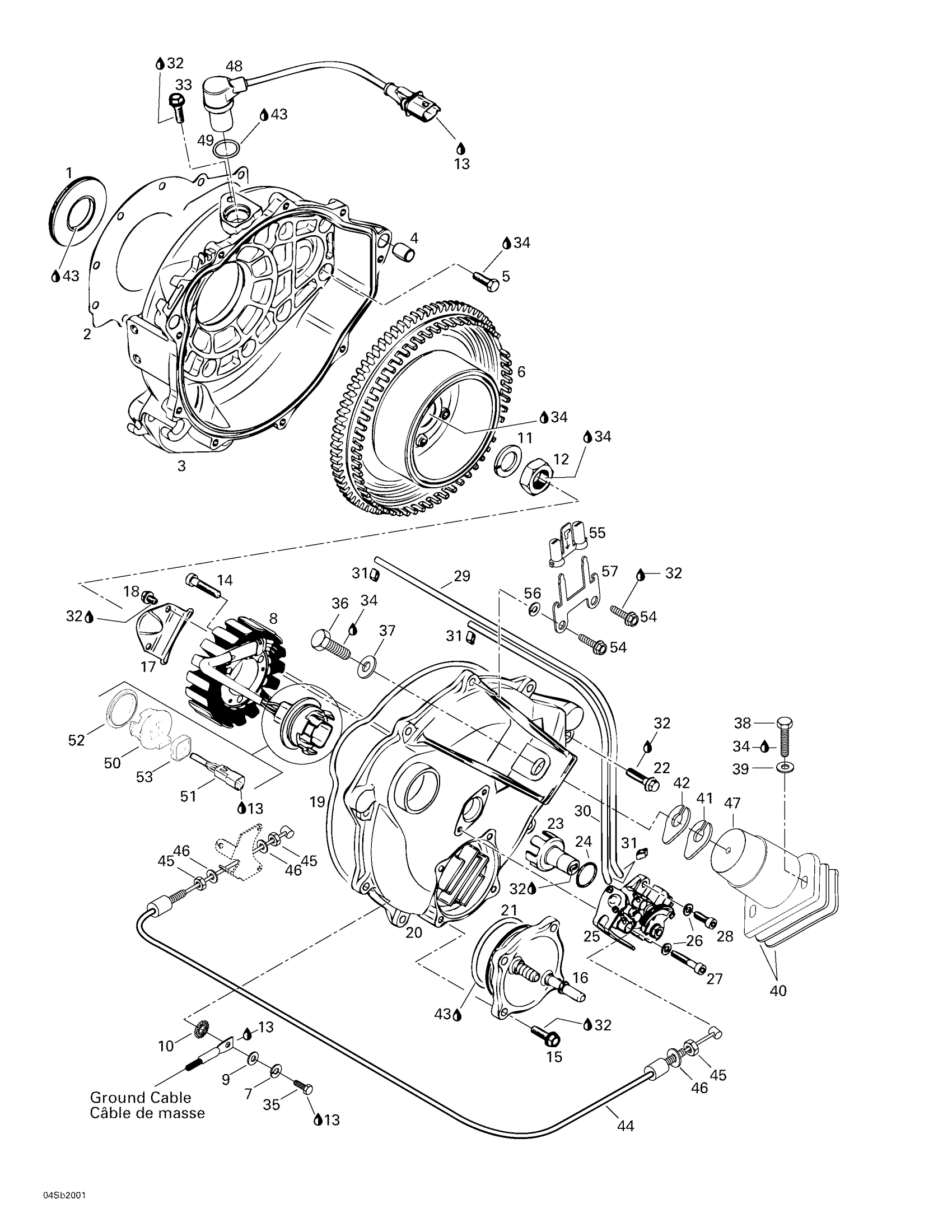

Sea-doo GSX RFI, 5645/5654, 2000 Magneto, Oil Pump Diagram

#

Description
Price

1

Oil Seal This part replaces 290830749.

420830749

$18.54

2

Gasket

290931470

Unavailable

3

Ignition Housing (Silver) | Includes 3 - 4.

290811011

Unavailable

4

Dowel Tube

290229153

Unavailable

5

Hex. Screw M6 X 25

420240034

$1.90

6

Trigger Wheel

290966562

Unavailable

7

Lock Washer Helical M6

234161601

$1.15

8

Stator Plate Ass'y

290887950

Unavailable

9

Stainless Flat Washer M6

234061600

$0.33

10

External Serrated Lock Washer 6 mm

234461608

$1.15

11

Lock Washer 18 mm

290945757

Unavailable

12

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

13

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

14

Socket Head Screw M6 X 35 This part replaces 420640051.

420640052

$5.61

15

Tapping Screw M6 x 20

290941253

Unavailable

16

WATERCHANNEL COVER - Call your local BRP dealership

290811220

Unavailable

17

Holding Strip

290851400

Unavailable

18

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

Unavailable

19

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

20

Ignition Cover

290811022

Unavailable

21

O-RING - Call your local BRP dealership

420850390

Unavailable

22

Hex. Flange Screw M6 x 25

290240033

Unavailable

23

Shaft Oil Pump

290837392

Unavailable

24

O-RING - Call your local BRP dealership

293300018

Unavailable

25

Oil Pump Ass'y

290887339

Unavailable

26

Lock Washer

290845389

Unavailable

27

Socket Head Screw M5 x 30

290940883

Unavailable

28

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

29

Oil Hose 1500Mm Long

219704404

$17.26

30

Oil Hose 1500Mm Long

219704404

$17.26

31

Clamp

420256408

Unavailable

32

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

33

Hex. Forming Screw M6 X 16

210361660

Unavailable

34

Loctite 243, 10 ml

293800060

$21.49

35

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

36

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

37

Flat Washer 8 mm, Stainless

234082600

$2.43

38

Hex. Screw M8 X 40

207184060

$2.22

39

Stainless, Flat Washer 8 mm

234081600

$0.55

40

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

Shim 1.3 mm

270000762

$12.99

41

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

42

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

43

Dow Corning 111, 150 g

413707000

$59.99

44

INJECTION CABLE ASS'Y - Call your local BRP dealership | Includes 42 to 45

270000437

Unavailable

45

Hex. Nut M6

232160600

$1.15

46

Stainless Flat Washer M6

234061600

$0.33

47

Rubber Mount

270000408

Unavailable

48

Crank Sensor | Includes 6 - 7.

278001346

Unavailable

49

O-Ring

293300051

Unavailable

50

Adaptor Ass'y | Includes 2 to 5

270000243

Unavailable

51

Female Housing, 4 Circuits

278000635

$16.49

52

Gasket

293300033

Unavailable

53

GASKET - Call your local BRP dealership

293200042

Unavailable

54

Flanged Hex. Screw M6 X 25, Scotch

207562560

$0.78

55

INSULATOR - Call your local BRP dealership

278000213

Unavailable

56

External Serrated Lock Washer 6 mm

234461608

$1.15

57

Ground Plate

278001455

Unavailable

58

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886396

Unavailable

59

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886392

Unavailable
