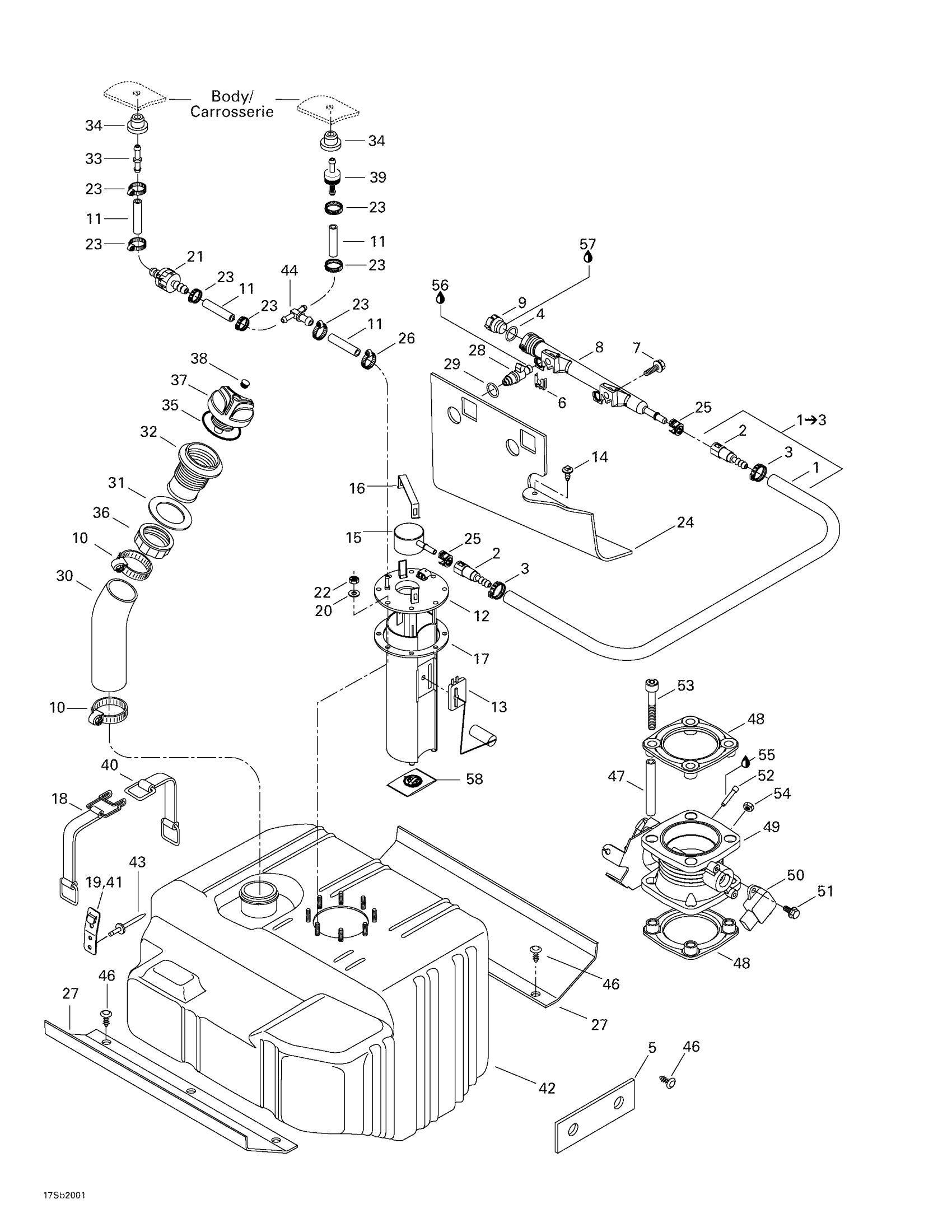

Sea-doo GSX RFI, 5645/5654, 2000 Fuel System Diagram

#

Description
Price

1

Hose Ass'y | Includes 1 - 3.

275500437

Unavailable

1

Hose 6 mm

204000068

Unavailable

2

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

3

Crimp Clamp

293650053

$3.09

4

O-RING - Call your local BRP dealership

293300042

Unavailable

5

Rubber Pad

292000343

Unavailable

6

Injector Circlip

270600010

Unavailable

7

Flanged Hex. Screw M6 X 25, Scotch

207562560

$0.78

8

Fuel Rail

270600008

Unavailable

9

CAP - Call your local BRP dealership

270600009

Unavailable

10

Tridon Clamp

293650023

$13.49

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25

204560418

Unavailable

13

Sensor Level

270600012

Unavailable

14

Mount Dart

293730040

$1.04

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Gasket

293250088

$14.99

18

Strap | Includes 69 - 70.

293850025

Unavailable

19

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

20

Flat Washer 5 mm, Stainless

234052400

$2.85

21

Check Valve

275500505

$31.99

22

Elastic Stop Nut 5 mm

232551200

$1.47

23

Oetiker Clamp

293650042

$3.09

24

RAIL PROTECTOR - Call your local BRP dealership

275500441

Unavailable

25

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

26

Tridon Gear Clamp

293650170

$1.99

27

Rubber Pad

293830077

Unavailable

28

Injector | Includes 35 - 36.

270600017

Unavailable

29

O-Ring

293300071

Unavailable

30

Filler Neck Hose

275500353

Unavailable

31

Gasket

293250029

$14.82

32

Filler Neck, Fuel

275500231

$14.75

33

Straight Fitting

293710039

$7.59

34

Grommet

293720029

$1.59

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

$14.22

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

38

Black, Snap Cap

293000034

$9.39

39

Check Valve

275500398

$10.99

40

Fuel Tank Strap | Includes 48 - 49.

293850026

Unavailable

41

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

42

Fuel Tank

275500427

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.56

44

T-Fitting | Europe

293710024

$14.75

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Black, Dart

293730006

$0.99

47

SPACER TUBE - Call your local BRP dealership

275500352

Unavailable

48

GASKET - Call your local BRP dealership

293250071

Unavailable

49

Throttle Body Ass'y | Includes 49 - 51.

270600020

Unavailable

50

Position Sensor

420866120

$98.99

51

Potentiometer Screw M4

211000205

Unavailable

52

Socket Head Screw M6 X 30

205063060

$2.75

53

SOCKET HEAD SCREW M6 X 90, SCOTCH GRIP - Call your local BRP dealership

205569060

Unavailable

54

Hex. Nut M6

232160600

$1.15

55

Loctite 243, 10 ml

293800060

$21.49

56

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

57

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

58

Fuel Filter, Bosch

219700368

$39.99
