01- Crankshaft And Pistons

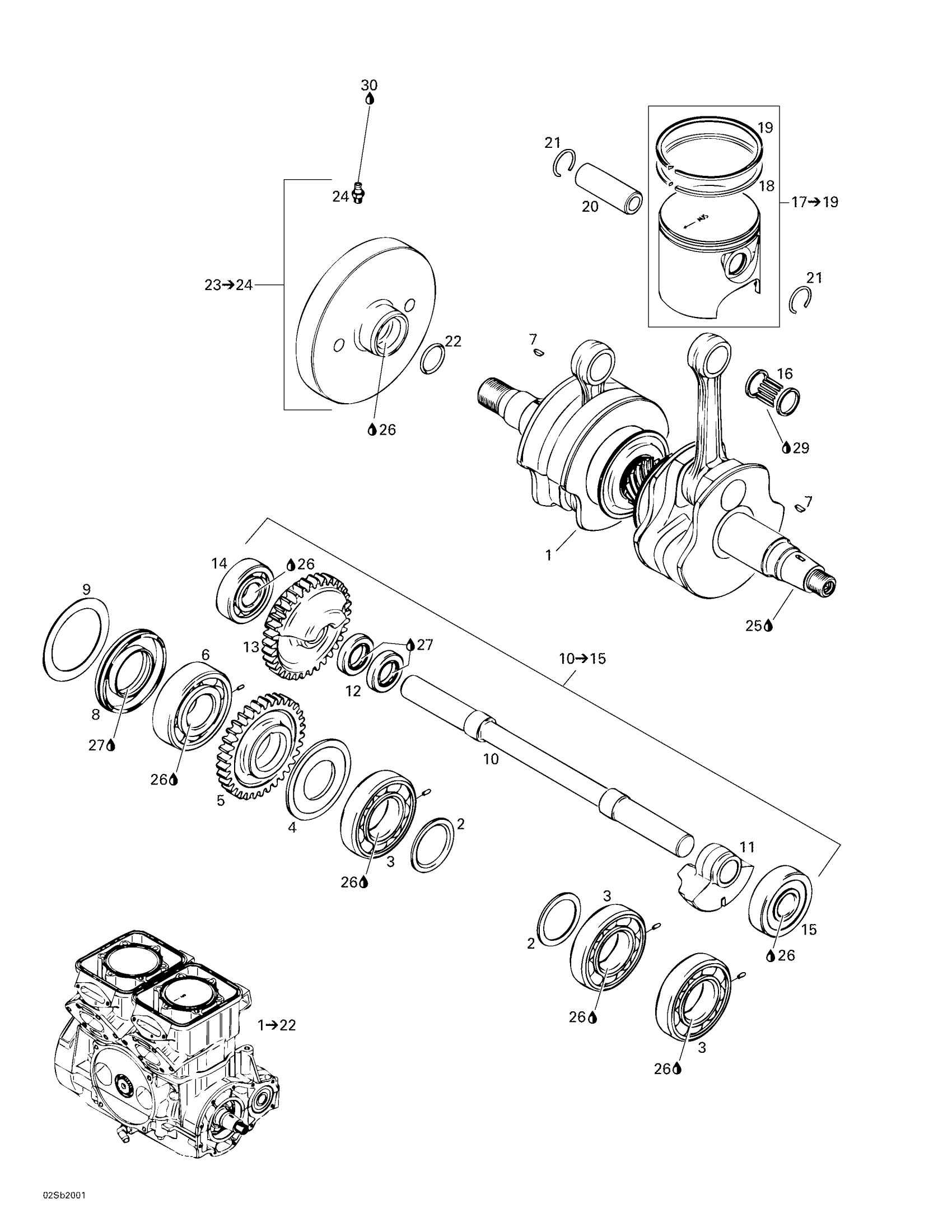

Sea-doo GSX RFI, 5645/5654, 2000 01- Crankshaft And Pistons Diagram
#
1
Short Block <<787>> Ass'y | Includes 1 - 23.
290078703
Unavailable
1
REBUILD-SHORT BLOCK 787 RFI - Call your local BRP dealership
421000913
Unavailable
1
REBUILD-CRANKSHAFT 787 RFI 98 - Call your local BRP dealership | Includes 1 to 7 This part replaces 420887891.
421000712
Unavailable
1
REBUILD-CRANKSHAFT 787 RFI 98 - Call your local BRP dealership | Includes 1 to 7 This part replaces 420887891.
421000712
Unavailable
2
DISTANCE RING - Call your local BRP dealership
420827760
Unavailable
3
Ball Bearing
420832573
$44.49
4
Labyrinth Washer
290926140
Unavailable
5
GEAR 43 TEETH - Call your local BRP dealership
290834315
Unavailable
6
Ball Bearing <<6306>>
290932579
Unavailable
7
Woodruff Key
420246055
$2.43
8
OIL SEAL - Call your local BRP dealership
290830638
Unavailable
9
RETAINING SHIM - Call your local BRP dealership
290926060
Unavailable
10
Balance Shaft Ass'y | Includes 9 - 14.
290837406
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Ball Bearing 6304E
290932095
Unavailable
15
BALL BEARING <<6304>> - Call your local BRP dealership
290932098
Unavailable
16
NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420.
420832421
Unavailable
17
PISTON WITH 2 RINGS, 81.91 MM - Call your local BRP dealership | Includes 17 - 19.
290888410
Unavailable
Piston Oversize, 2 Rings, 82.16 mm
290888411
Unavailable
18
Rectangular Ring 82.00 mm
290815080
Unavailable
Rectangular Ring 82.25 mm
290815081
Unavailable
19
Semi-Trapez Ring 82.00 mm
290815100
Unavailable
Semi-Trapez Ring 82.25 mm
290815101
Unavailable
20
Piston Pin This part replaces 290916402.
420916404
$28.49
21
CIRCLIP - Call your local BRP dealership
420845100
Unavailable
22
O-Ring
420430782
$5.39
23
Flywheel Clutch | Includes 23 - 24.
290958141
Unavailable
24
GREASE FITTING - Call your local BRP dealership
290499113
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
27
Dow Corning 111, 150 g
413707000
$59.99
28
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886392
Unavailable
28
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886396
Unavailable
29
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
$12.99
30
Synthetic Grease, 400 G
293550010
Unavailable
