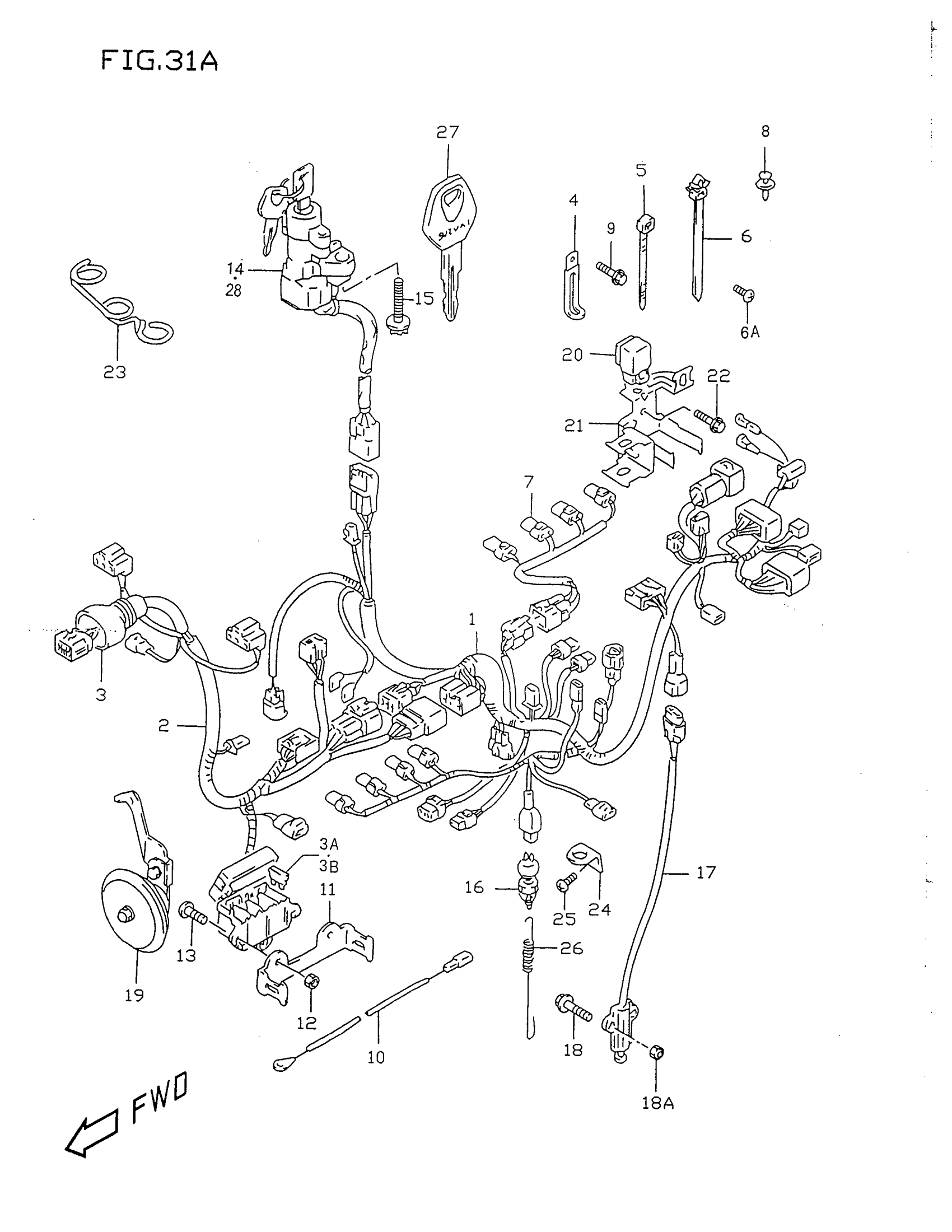

Suzuki GSX-R750X (1999) WIRING HARNESS (MODEL W/X) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-33EA0

Unavailable

2

HARNESS, WIRING NO.2 | Includes Item(s) 3 - 3B

36620-33EA0

Unavailable

3

COVER, SPEEDOMETER

36618-33E00

$8.77

3A

FUSE (10A)

09481-10501

$2.06

3B

FUSE (15A)

09481-15501

$2.02

4

CLAMP (L:60)

09404-06429

$1.83

4

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP (L:165)

09407-18402

$2.19

5

CLAMP (L:235)

09407-25401

$4.66

6

CLAMP This part replaces 09407-17401.

09407-17402

$3.93

6A

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

7

WIRE, INJECTOR LEAD

36856-33EA0

Unavailable

8

CLIP, WIRING HARNESS

09409-07305-5PK

$2.21

9

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

10

WIRE, OIL PRESSURE SW

36851-17E10

Unavailable

11

BRACKET, FUSE BOX

36744-33E00

Unavailable

12

NUT This part replaces 94619-27A00.

09159-05048

$7.22

13

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

14

LOCK ASSY,STEER This part replaces 37100-33E20.

37100-33E21

$201.45

15

SCREW, STEERING LOCK

09139-08016

$3.37

16

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

17

SWITCH ASSY,SID This part replaces 37840-26X50.

37840-26X52

$74.31

18

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

18A

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

19

HORN ASSY

38500-33EA0

Unavailable

20

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

21

BRACKET, FUEL PUMP

38930-33E10

$15.98

22

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

23

GUIDE, WIRING HARNESS

36619-33E00

Unavailable

24

BRACKET, STOP LAMP SW

43251-21E00

Unavailable

25

SCREW This part replaces 02142-06083.

02142-0608A

$1.49

26

SPRING, STOP LAMP

09443-06005

$3.37

27

KEY, BLANK | OPT

37146-33E00

$21.21
