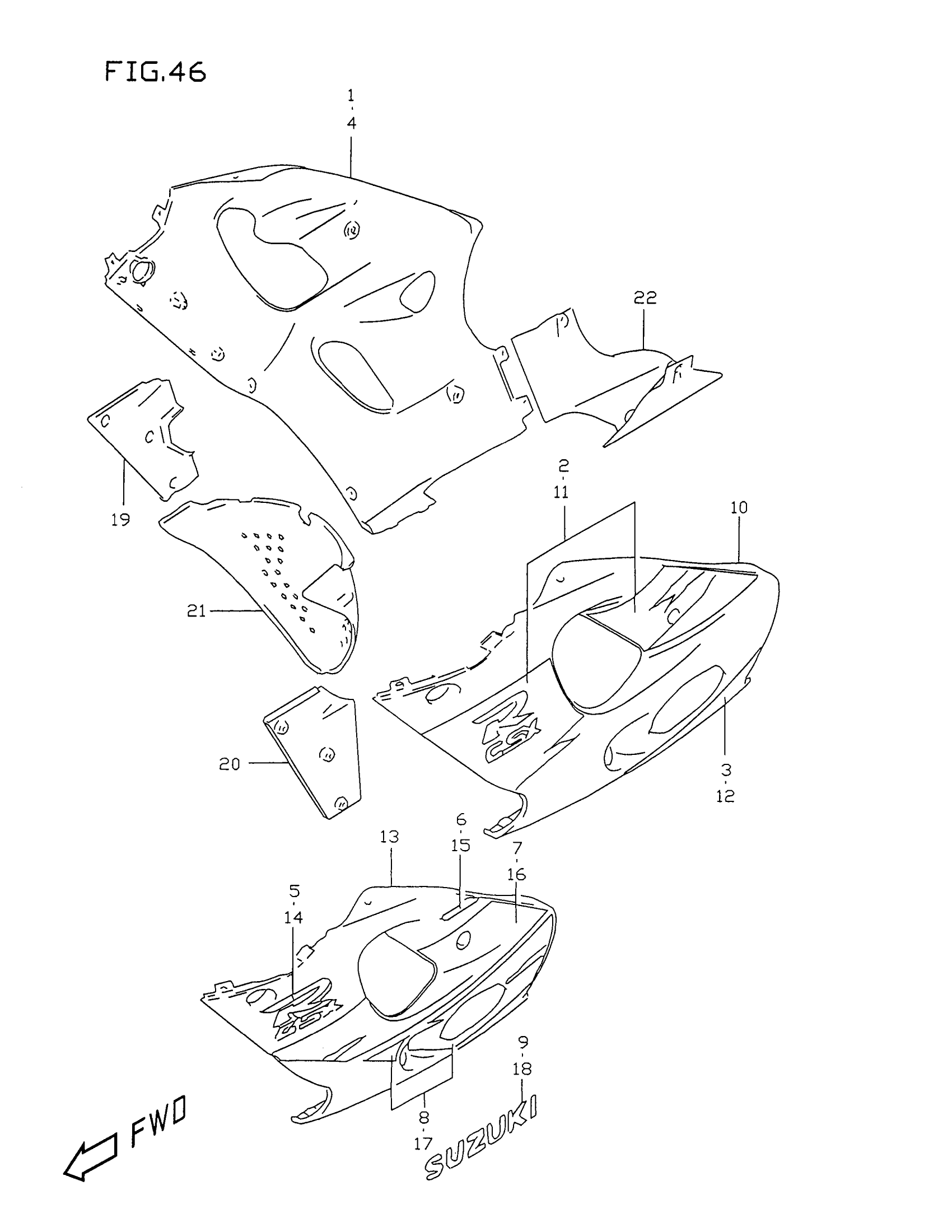

Suzuki GSX-R750X (1999) UNDER COWLING BODY (MODEL T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FOR F1S; Includes Item(s) 2 - 3 This part replaces 94407-33E20-Z66.

94407-33E21-Z66

Unavailable

2

TAPE SET, UPPER RH

68180-33E21-Z88

Unavailable

3

TAPE, LOWER RH (BROWN)

68185-33E10-29F

Unavailable

4

COWLING, UNDER RH | FOR L99; Includes Item(s) 5 - 9

94407-33E00-L99

Unavailable

5

EMBLEM, UPPER

68181-33E01-F3S

Unavailable

6

TAPE, UPPER RH

68185-33E00-L99

Unavailable

7

TAPE, CENTER RH

68186-33E01-M18

Unavailable

8

TAPE SET, LOWER RH

68180-33E01-F3V

Unavailable

9

EMBLEM, SUZUKI (BLUE)

61441-92E20-1LF

Unavailable

10

COWLING, UNDER LH (YELLOW) | FOR F1S; Includes Item(s) 11 - 12

94408-33E20-Z66

Unavailable

11

TAPE SET, UPPER LH

68190-33E21-Z88

Unavailable

12

TAPE, LOWER LH (BROWN)

68195-33E10-29F

Unavailable

13

COWLING ASSY,UN | FOR L99; Includes Item(s) 14 - 18 This part replaces 94408-33E00-L99.

94408-33E01-L99

Unavailable

14

EMBLEM, UPPER

68181-33E01-F3S

Unavailable

15

TAPE, UPPER LH

68195-33E00-L99

Unavailable

16

TAPE, CENTER LH

68196-33E01-M18

Unavailable

17

TAPE SET, LOWER LH

68190-33E01-F3V

Unavailable

18

EMBLEM, SUZUKI (BLUE)

61441-92E20-1LF

Unavailable

19

COWLING, INNER RH

94461-33E00

Unavailable

20

COWLING, INNER LH This part replaces 94462-33E00.

94462-33E01

Unavailable

21

COWLING, CENTER This part replaces 94498-33E00.

94498-33E01

Unavailable

22

COWLING, UNDER REAR (BROWN) | FOR F1S

94606-33E00-29F

Unavailable

22

COWLING, UNDER REAR (WHITE) | FOR L99

94606-33E00-0JW

Unavailable

23

COLOR :

SPECIAL NOTE

Unavailable
