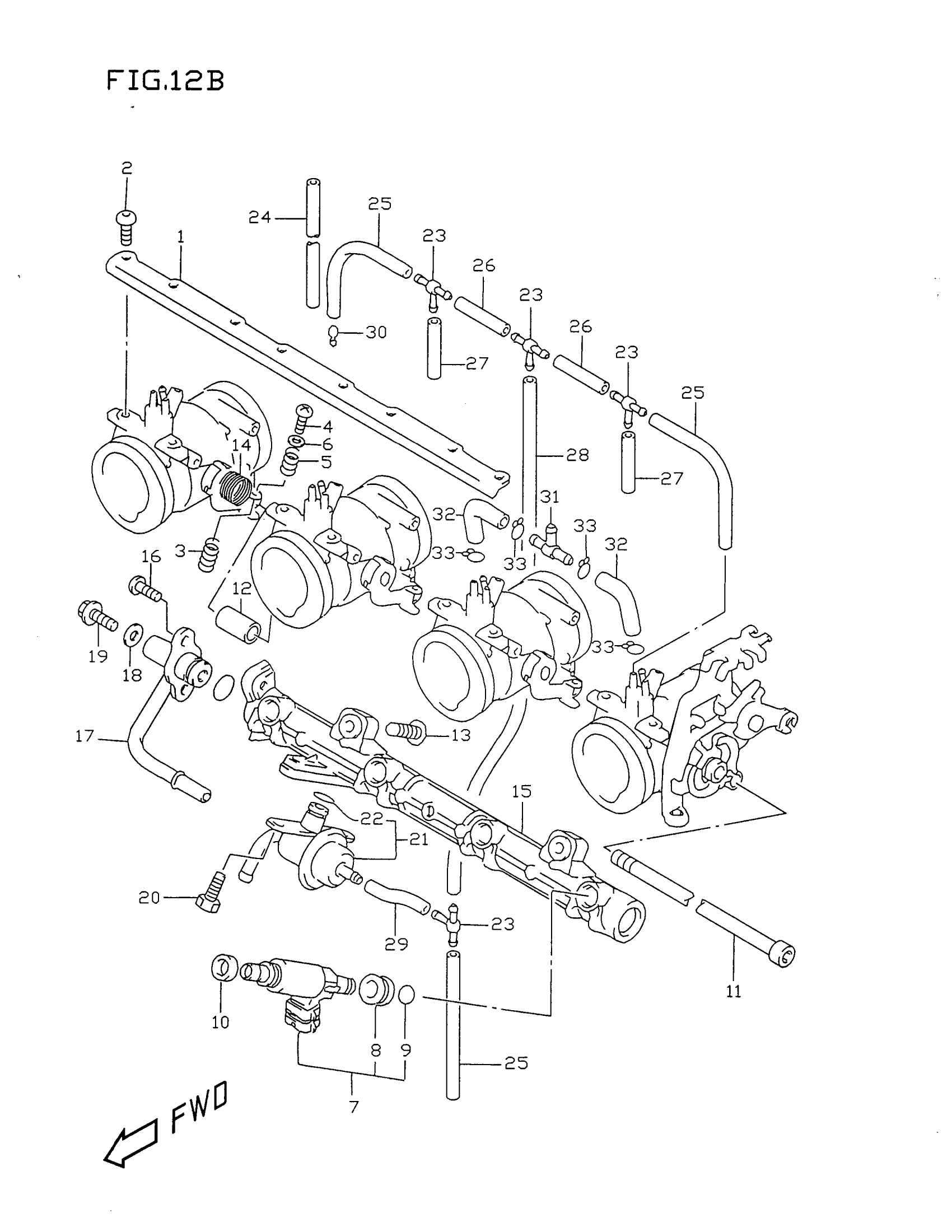

Suzuki GSX-R750X (1999) THROTTLE BODY FITTINGS (MODEL W/X) Diagram

#

Description
Price

1

PLATE

13625-33E00

Unavailable

2

SCREW This part replaces 13602-33E00.

02112-05127

$1.97

3

SPRING This part replaces 13268-96110.

13268-96111

$4.35

4

SCREW

13372-84301

Unavailable

5

SPRING

13271-93311

$4.64

6

WASHER

13427-38300

$1.92

7

INJECTOR ASSY | Includes Item(s) 8 - 9

15710-33E00

Unavailable

8

GROMMET

15720-09300

$3.71

9

O RING

15717-02F00

$3.71

10

PACKING

13672-33E00

$10.34

11

BOLT

13613-33E00

Unavailable

12

RING

13615-33E00

Unavailable

13

BOLT

13602-33E10

Unavailable

14

SPRING

13573-06C10

$7.77

15

DELIVERY PIPE

15731-33E00

Unavailable

16

SCREW

02112-05127

$1.97

17

NIPPLE

15732-33E00

Unavailable

18

GASKET

09168-06023

$2.35

19

PLUG

17568-50F00

$4.76

20

BOLT

13612-02F00

Unavailable

21

REGULATOR, FUEL | MODEL W This part replaces 15610-33E00.

15610-33E10

Unavailable

21

REGULATOR, FUEL | MODEL X; Includes Item(s) 22

15610-33E10

Unavailable

22

O RING

15710-09300

$3.71

23

3 WAY

09367-04007

$4.00

24

HOSE (3.5X7.5X600) | L:600->165 This part replaces 09355-35755-600.

09355-35007-600

$6.94

25

HOSE (3.5X7.5X600) | L:600->100 This part replaces 09355-35755-600.

09355-35007-600

$6.94

26

HOSE (3.5X7.5X600) | L:600->40 This part replaces 09355-35755-600.

09355-35007-600

$6.94

27

HOSE (3.5X7.5X600) | L:600->35 This part replaces 09355-35755-600.

09355-35007-600

$6.94

28

HOSE (3.5X7.5X600) | L:600->150 This part replaces 09355-35755-600.

09355-35007-600

$6.94

29

HOSE (3.5X7.5X600) | L:600->50 This part replaces 09355-35755-600.

09355-35007-600

$6.94

30

JET

09493-20015

$12.90

31

.NIPPLE | E33

13685-48B00

$12.15

32

HOSE | E33

09352-50901-600

$8.06

33

CLIP | E33 This part replaces 09401-10410.

09401-10401

$1.49
