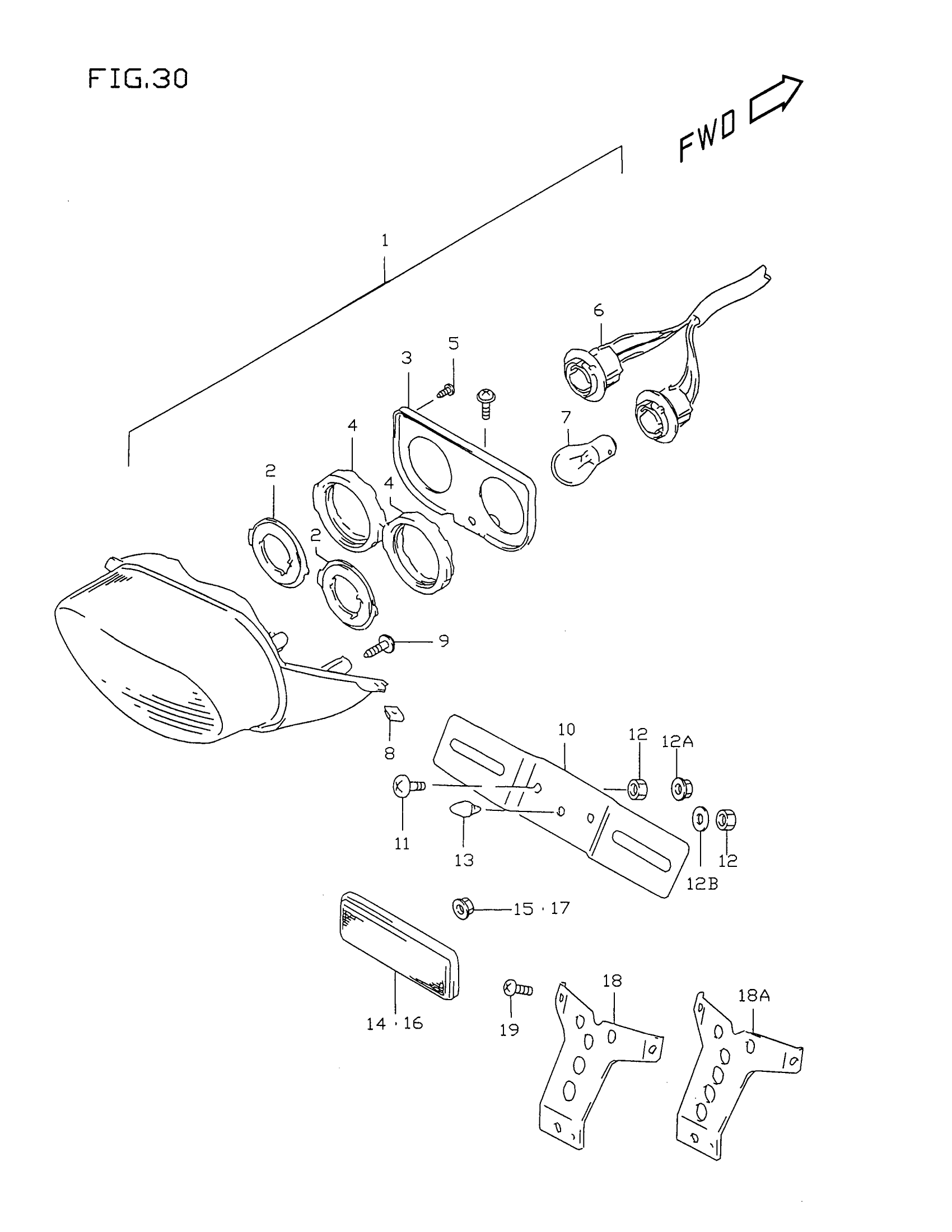

Suzuki GSX-R750X (1999) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR | Includes Item(s) 2 - 5

35710-33E30

Unavailable

2

PLATE NO.1

35716-48B21

$20.22

3

PLATE NO.2

35736-33E00

Unavailable

4

CUSHION

35765-48B21

$12.97

5

SCREW This part replaces 03211-04123.

03211-0412A

$2.23

6

SOCKET & CORD | Includes Item(s) 7

35718-33E00

Unavailable

7

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

8

NUT, REAR COMB

09148-05020

$2.18

9

SCREW This part replaces 03541-15163.

03541-1516A

$2.06

10

BRACKET, LICENSE PLATE

35927-48B30

$14.20

11

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

12

NUT | MODEL T/W This part replaces 08310-00063.

08310-0006A

$1.84

12A

NUT | MODEL V This part replaces 08316-10063.

08316-1006B

$2.50

12B

WASHER (6.5X20X1.20) | MODEL W/X

09160-06077

$1.91

13

CUSHION

09321-06023

$2.50

14

REFLECTOR ASSY, REAR SIDE

35970-24D60

$25.98

15

NUT This part replaces 08310-00053.

08310-0005A

$1.84

16

REFLECTOR ASSY, REAR

35970-24D60

$25.98

17

NUT This part replaces 08310-00053.

08310-0005A

$1.84

18

BRACKET, REAR REFLECTOR | MODEL T/V

35974-33E00

Unavailable

18A

BRACKET, REAR REFLECTOR | MODEL W/X

35974-48E00

$13.47

19

SCREW, REAR BRACKET

09125-06092

$2.70
