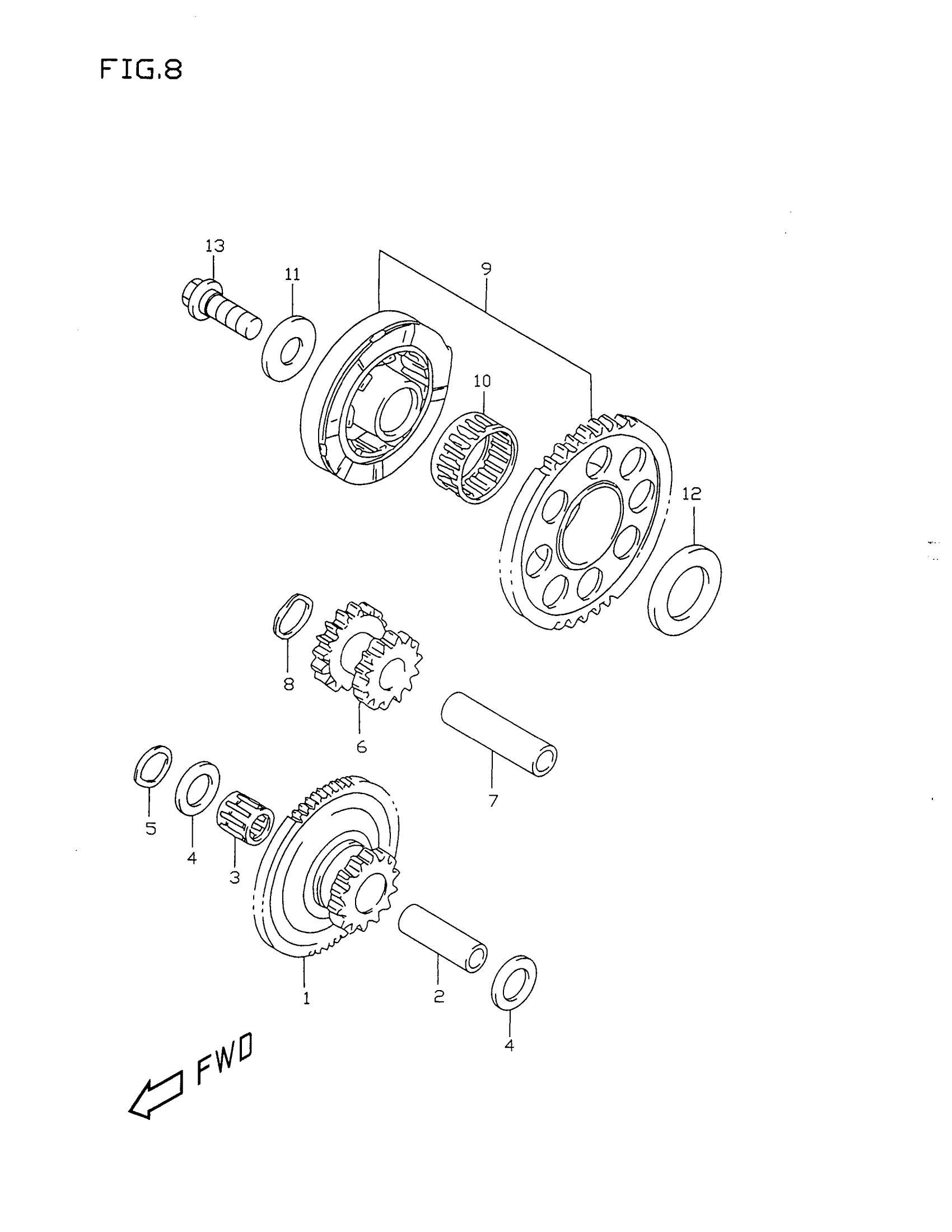

Suzuki GSX-R750X (1999) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE NO.1 | MODEL T/V This part replaces 12611-33E01.

12611-33E02

Unavailable

1

GEAR, STARTER IDLE NO.1 | MODEL W/X

12611-33E02

Unavailable

2

PIN

12151-09204

$10.17

3

BEARING (12X16X16) | MODEL T/V This part replaces 09263-12020.

09263-12023

$10.19

3

BEARING | MODEL W/X

09263-12023

$10.19

4

WASHER

08211-12241

$2.06

5

WASHER

09164-12021

$2.03

6

GEAR, STARTER IDLE NO.2 | MODEL T This part replaces 12612-33E01.

12612-33E02

Unavailable

6

GEAR, STARTER IDLE NO.2 | MODEL V/W/X

12612-33E02

Unavailable

7

PIN

12151-05200

$12.50

8

WASHER

09164-14008

$2.01

9

CLUTCH SET, STARTER | MODEL T/V This part replaces 12600-33860.

12600-24850

$388.57

9

CLUTCH SET, STARTER | MODEL W/X This part replaces 12600-33871.

12600-24850

$388.57

10

BEARING | MODEL T/V

09263-28029-0C0

Unavailable

10

BEARING | MODEL W/X

09263-28031

$40.47

11

WASHER

08211-10305

$4.25

12

WASHER

08211-20403

$4.32

13

BOLT (10X23)

09103-10189

$4.04
