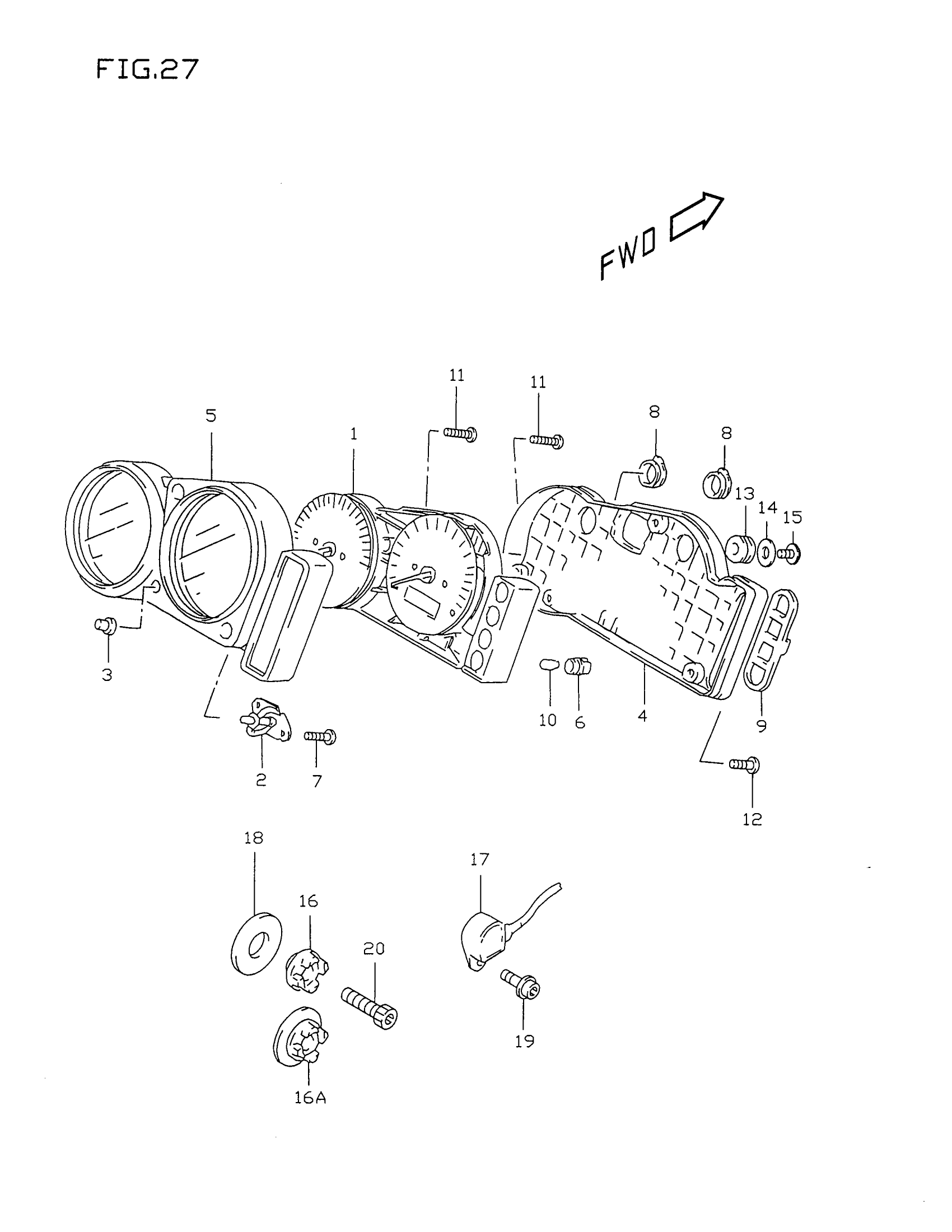

Suzuki GSX-R750X (1999) SPEEDOMETER (MODEL T/V) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 34120-33E30.

34120-33E33

Unavailable

1

SPDOM & TACH ASSY (KILO) | E28

34120-33E10

Unavailable

2

ATTACHMENT, SWITCH

34123-33E00

Unavailable

3

SWITCH, GUM

34124-33E00

$5.75

4

CASE ASSY This part replaces 34130-33E00.

34130-33E01

Unavailable

5

VISOR

34150-33E00

Unavailable

6

SOCKET, T6.5 BULB

34172-33E00

$7.53

7

SCREW, PAN HEAD (3X10) This part replaces 34183-33E00.

09132-03005

Unavailable

8

CAP, BLIND NO.1

34198-33E00

Unavailable

9

CAP, BLIND NO.2

34198-33E10

Unavailable

10

.BULB (12V1.7W)

09471-12108

$3.42

11

SCREW

03521-04203

Unavailable

12

.SCREW This part replaces 03541-04203.

03541-0420A

$2.15

13

CUSHION, METER

34955-33E00

$3.56

14

WASHER, METER

09160-05037

$1.49

15

SCREW This part replaces 02162-05083.

02162-0508A

$2.07

16

ROTOR,SPEED | MODEL T This part replaces 34981-33E00.

34981-42E01

$17.42

16A

ROTOR,SPEED | MODEL V This part replaces 34981-42E00.

34981-42E01

$17.42

17

SENSOR, SPEED This part replaces 34990-33E00.

34990-35F00

$127.72

18

WASHER, SPEED METER | MODEL T

09160-14020

$2.19

19

BOLT This part replaces 07120-05123.

07120-0512B

$2.61

20

BOLT This part replaces 07130-08203.

07130-0820B

$3.49

21

REFER TO FIG.27A(G-6) FOR

SPECIAL NOTE

Unavailable
