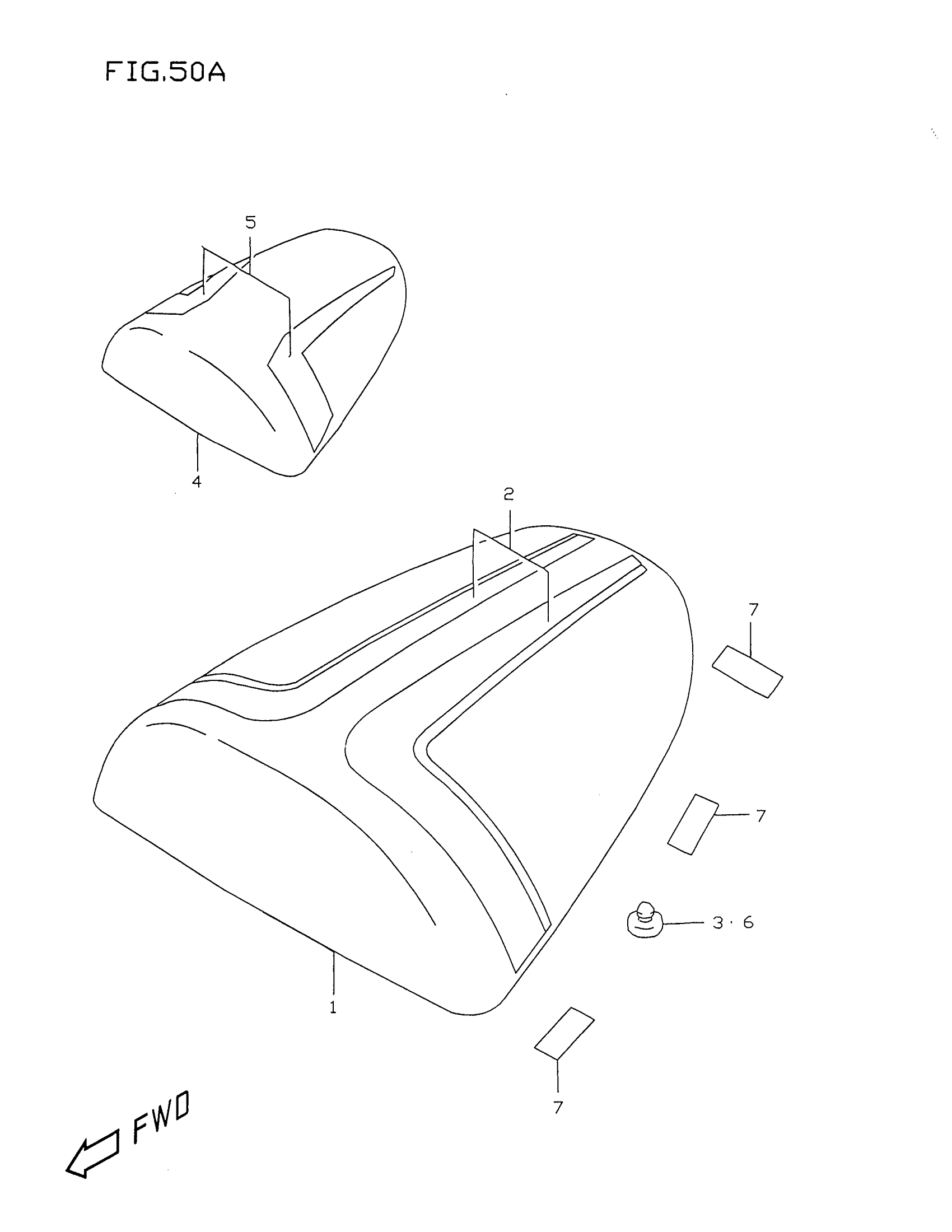

Suzuki GSX-R750X (1999) SEAT TAIL BOX (MODEL V) Diagram

#

Description

Price

1

BOX ASSY, SEAT TAIL (WHITE) | FOR L99; Includes Item(s) 2 - 3

45500-33E00-1LX

Unavailable

2

TAPE SET, BOX

68160-33E00-G9B

Unavailable

3

CUSHION

09321-10002

$2.22

4

BOX ASSH, SEAT TAIL (ORANGE) | FOR G7U; Includes Item(s) 5 - 6

45500-33E30-Y0W

Unavailable

5

TAPE SET, BOX

68160-33E30-G8N

Unavailable

6

CUSHION

09321-10002

$2.22

7

PROTECTOR SET

45559-33E00

Unavailable

8

REFER TO FIG.50B(K-5) FOR

SPECIAL NOTE

Unavailable
